Discharge Pipe and Pressure Tank Connections (continued)

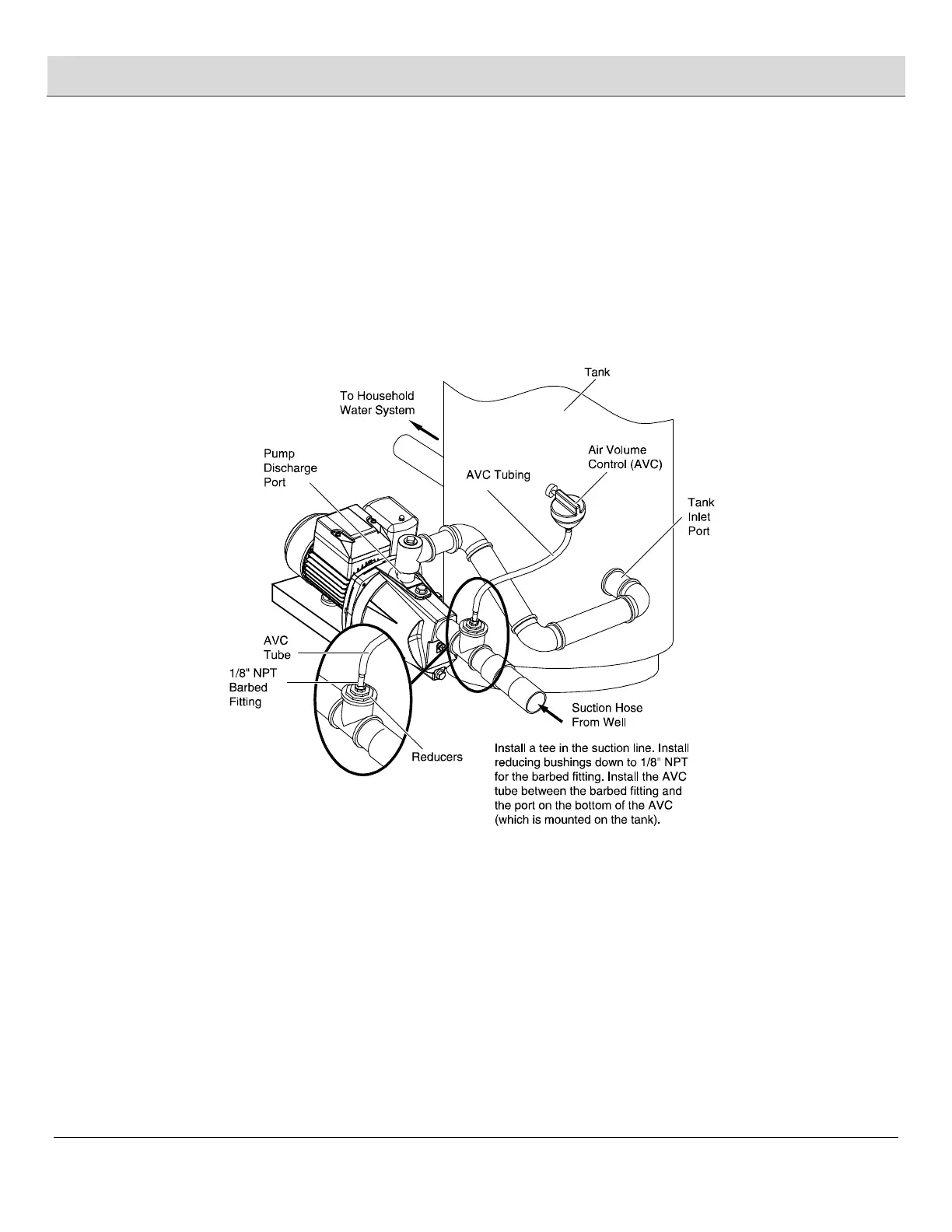

STANDARD TANK CONNECTION
Install a tee in the pump discharge port.
Run a pipe from the pump discharge port to the inlet port of your tank. The pipe size must be at least as large as the discharge port.
Install a tee with reducing bushings in the suction pipe as shown.
Install a barbed fitting in the smallest bushing(1/8" NPT).
Run the AVC tubing from the barbed fitting on the suction pipe tee to the port in the AVC mounted on the tank. See the instructions
provided with the tank and the AVC for details. The AVC port location may vary.
Congratulations! You have just completed the tank connection for your jet pump.
