Everdure MURRAY ESEE - Exploded Component Diagrams

STYLE, GRILLED TO PERFECTION

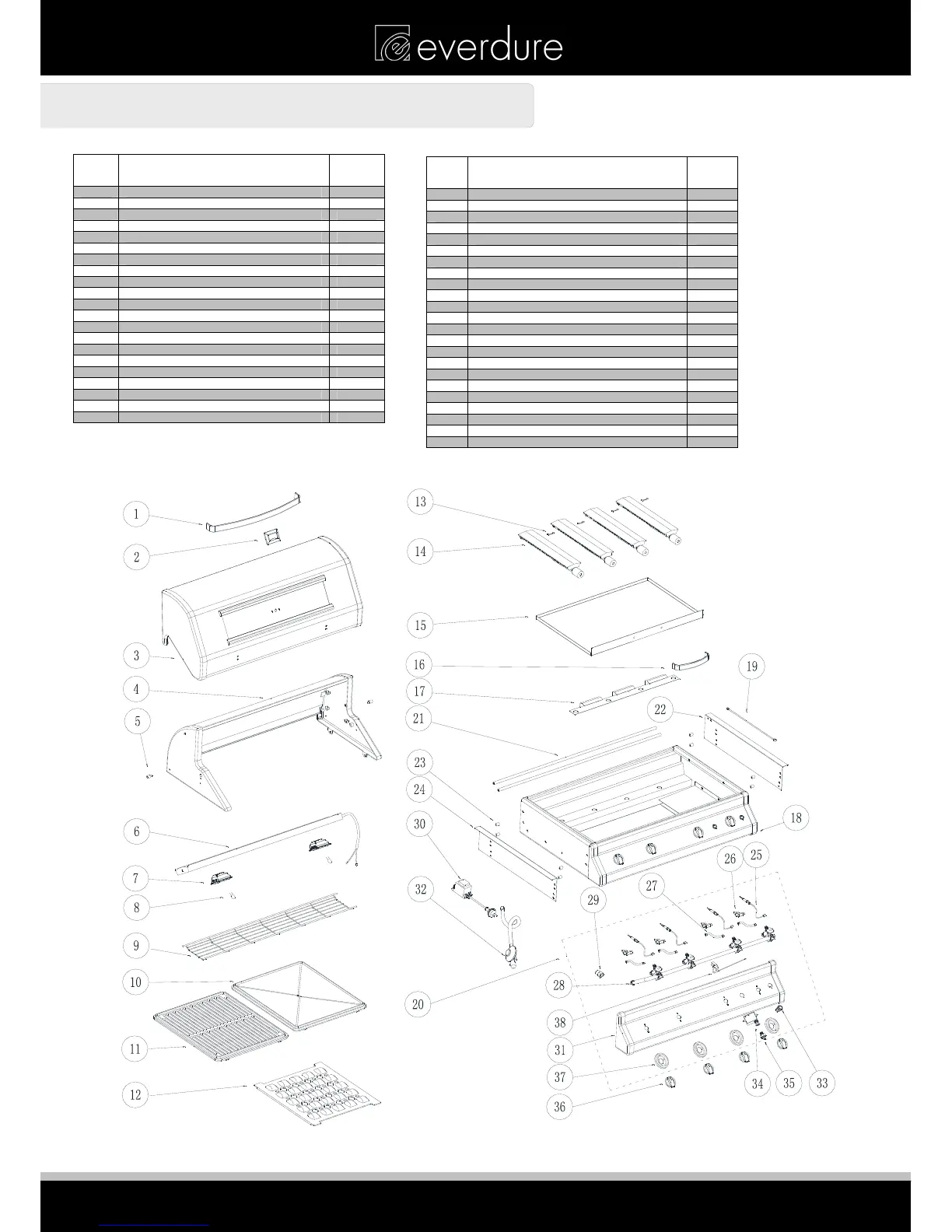

EXPLODED COMPONENT DIAGRAMS
REF DESCRIPTION
QTY
USED PER
BBQ
1.00 HOOD HANDLE 1
2.00 TEMPERATURE GAUGE 1
3.00 FRONT HOOD ASSEMBLY 1
4.00 REAR HOOD no lighting panel 1
5.00 HOOD HINGE BOLT 2
6.00 LIGHTING PANEL (ESEE MODELS ONLY)
1
7.00 GLASS COVER - LIGHT (ESEE MODELS ONLY) 2
8.00 GLOBE 20W 12V AC (ESEE MODELS ONLY)
2
9.00 WARMING RACK 1
10.00 HOT PLATE 1
11.00 GRILL PLATE 1
12.00 FLAME TAMER 1
13.00 LOCKING CLIP (rail burner) 4
14.00 RAIL BURNER 4
15.00 FAT TRAY 1
16.00 FAT TRAY HANDLE 1
17.00 CROSSOVER PANEL 1
18.00 CARCUSS / BODY 1
19.00 WIRING - LIGHT SWITCH (ESEE MODELS ONLY) 1
20.00 FACIA ASSEMBLY 1
NOTE: NG models are supplied with separate hose, regulator (not shown) &
Manifold inlet adaptor. Propane models are supplied with a hose & regulator as shown.
REF DESCRIPTION
QTY
USED
PER BBQ
21.00
REAR LOUVER
2
22.00
RIGHT HAND BRACKET
1
23.00
SPACER -
BRACKET
8
24.00
LEFT HAND BRACKET
1
25.00
THERMOCOUPLE
4
26.00
NOZZLE ASSEMBLY (includes injector)
4
26.01
INJECTOR
4
27.00
RIPPLE PIPE
4
28.00
MANIFOLD
1
28.01
GAS VAL
V
E
4
29.00
A
DAPTOR
(NG MODELS ONLY)
1
30.00
TRANSFORMER
(ESEE MODELS ONLY)
1
31.00
FACIA PANEL
1
32.00
HOSE & REGULATOR
(PROPANE MODELS
ONLY) 1
33.00
LIGHT SWITCH
(ESEE MODELS ONLY)
1
34.00
SINGLE POINT IGNITION BOX
1
35.00
IGNITION BUTTON
1
36.00
KNOB
4
37.00
BEZEL
4
38.00
ELECTRODE & SHROUD 250mm
4
39.00
HOOD HARDWARE KIT
1
40.00
NG REGULATOR
& NG HOSE (NG MODELS ONLY) 1
21
