Preparing the Motherboard
Installing the CPU
Be very careful when handling the CPU. Hold the processor only by the
edges and do not touch the contacts on the motherboard or CPU. Any
physical damage to the motherbard pins will void the warranty.

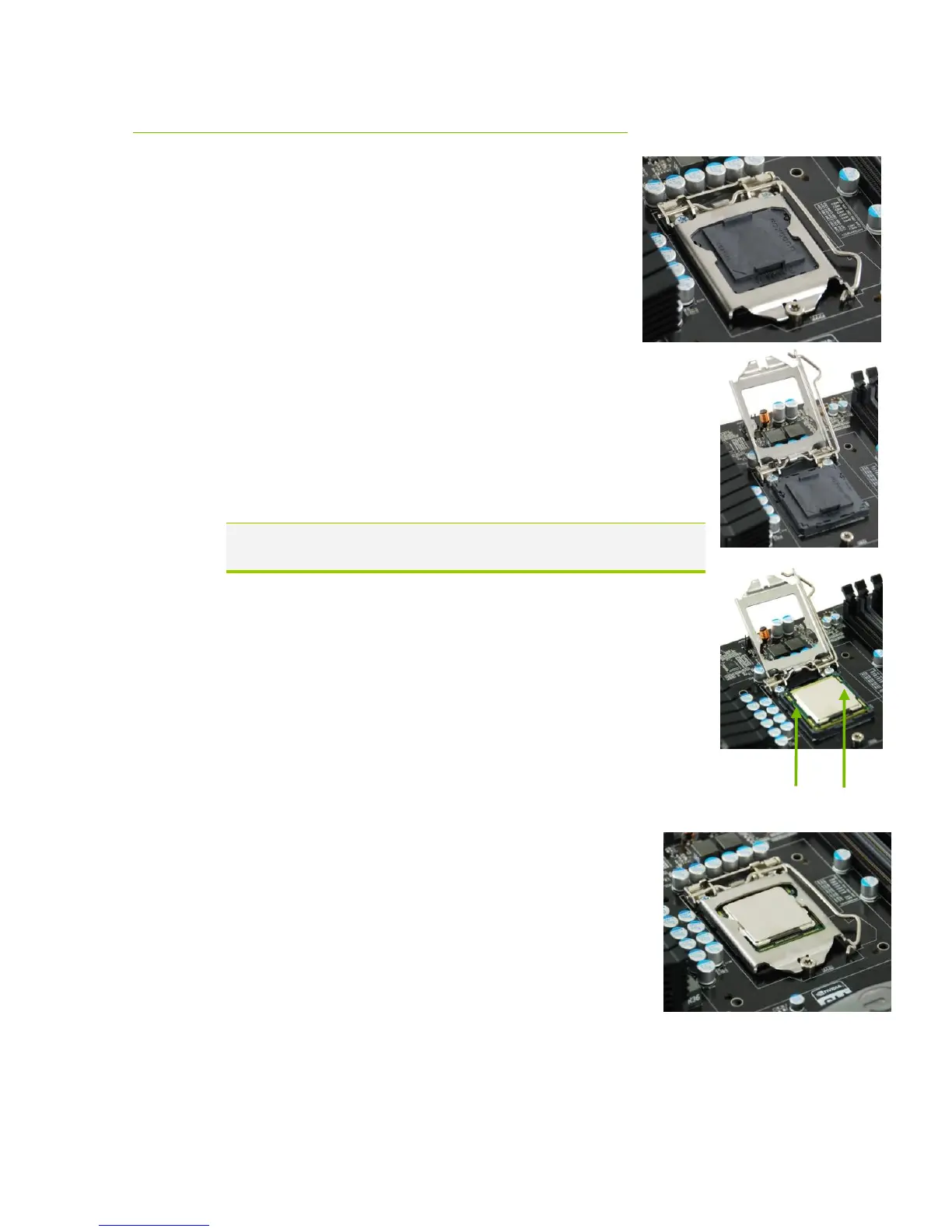

Use the following procedure to install the CPU onto the motherboard:
1. Unhook the socket lever by pushing down and away from the socket.
2. Pull the socket lever back and the load plate will automatically lift. There is a
protective socket cover within the CPU socket to protect the socket when there
is no CPU installed.
3. Remove the protective socket cover from the CPU Socket in a straight up
motion.
Note: You must save the protective cover so that whenever you
remove the CPU the pins will not be protected.
4. Align the notches in the processor with the notches on the socket.
5. Lower the processor straight down into the socket without tilting or sliding it
into the socket
6. Lower the load plate so it is resting on the CPU.
7. Pull back the socket lever again to ensure the load plate tip
engages under the shoulder screw cap.
8. Carefully close and latch the lever.
Installing the CPU Fan
There are many different fan types that can be used with this motherboard.
Follow the instruction that came with you fan assembly. Be sure that the
fan orientation is correct for your chassis type and your fan assembly.
