197
EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING
10
ICON COMPONENT
SERVICING

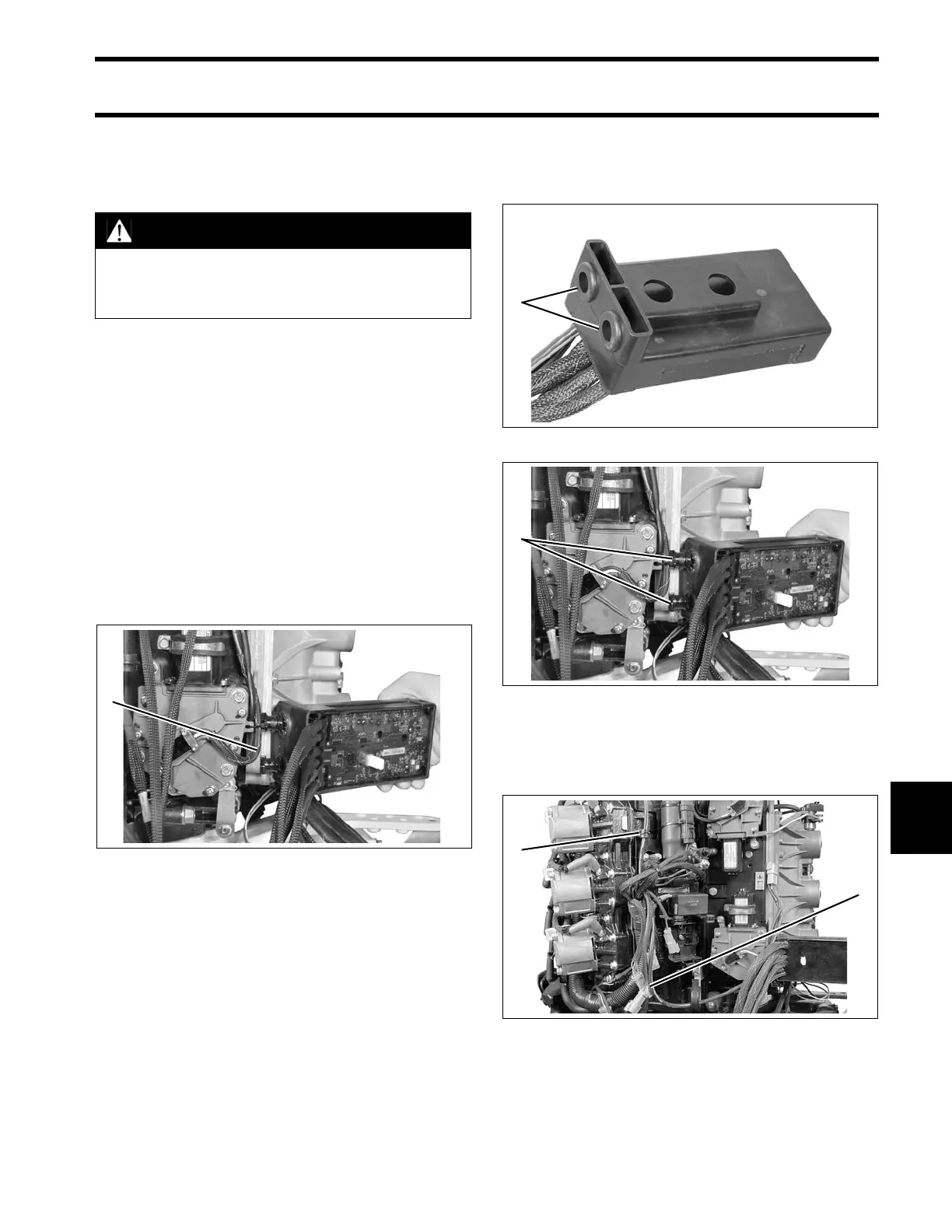

Electronic Servo Module (ESM)
Disconnect the battery cables at the battery.
Removal
Disconnect the:
• ICON buss cable from ESM
• ESM CANbus harness from EMM
• ESM throttle actuator harness
• ESM shift actuator harness
• ESM power supply harness from solenoid and
ground stud
Remove the ESM from studs.
Installation
Install grommets on ESM. Apply soapy water to
grommets and push assembly on to studs.
Route the CANbus harness from the ESM to the
EMM as shown on the starboard side of outboard.
Install grommet in notch on the electrical bracket.
WARNING
To prevent accidental starting while ser-
vicing, disconnect the battery cables at
the battery.
1. Retainer mechanism 008506
1. Grommets 007500
1. Studs 008506
1. CANbus harness
2. Grommet
007495
