148
ELECTRICAL AND IGNITION
CONNECTOR SERVICING

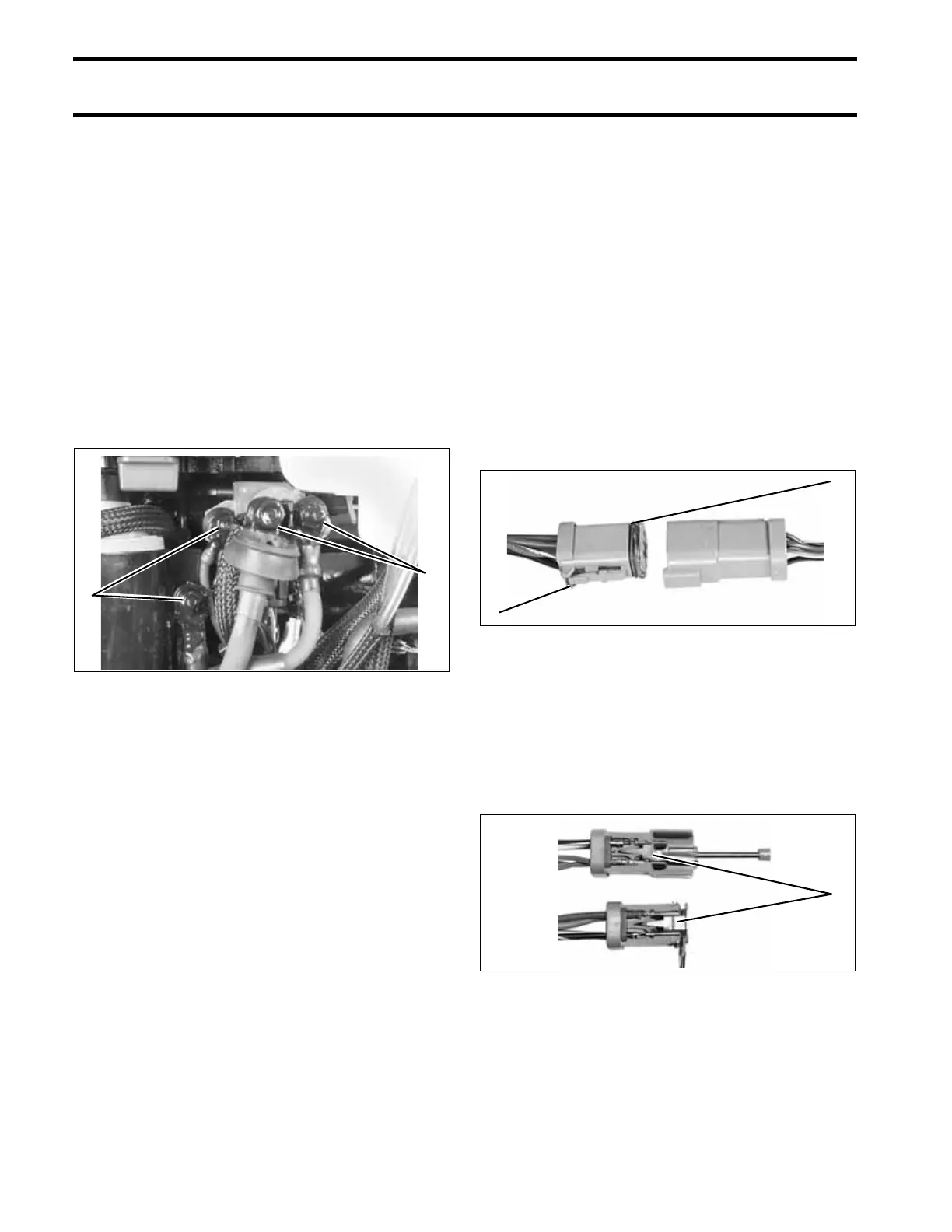

Starter Installation
Apply Triple-Guard grease to the threads of the
two starter screws, the double-ended stud, and
also to the washers.
Position the starter and install the screws and
washers. Tighten screws to a torque of 168 to 192
in. lbs. (19 to 21 N·m).
Attach starter positive (+) cable to post with lock
washer and nut; tighten securely.
Install the battery negative cable (–) to the double-
ended stud.
Coat connections with Black Neoprene Dip.
CONNECTOR
SERVICING
DEUTSCH Connectors
IMPORTANT: Electrical Grease is recom-
mended. Incorrect grease application can cause
electrical or warning system problems.
To disconnect the connector, press the latch and
pull the connectors apart.
To connect the connector, confirm that the seal is
in place. Clean off any old grease and dirt from
connectors. Apply a light coat of Electrical Grease
to seal. Push connectors together until latched.
Terminal Removal
Use hook-end of Connector Service Tool,
P/N 342667, to pull out wedge from receptacle, or
use other end of tool to pry out wedge from plug.
Use needle-nose pliers to remove wedge from
3-pin receptacle.
1. Black Neoprene Dip 002292
1
1
1. Latch
2. Seal
42079A
1. Wedge 42327
2
1
1
