Installing Centric 20E To Counter
Countertop Installation
The Centric 20E may be recessed into a cabinet constructed from any suitable material such as wood, stainless
steel, or composite. Example shown positions the unit with its chassis fl ush to the counter top and the cooking
surface visible to a display-cooking audience.

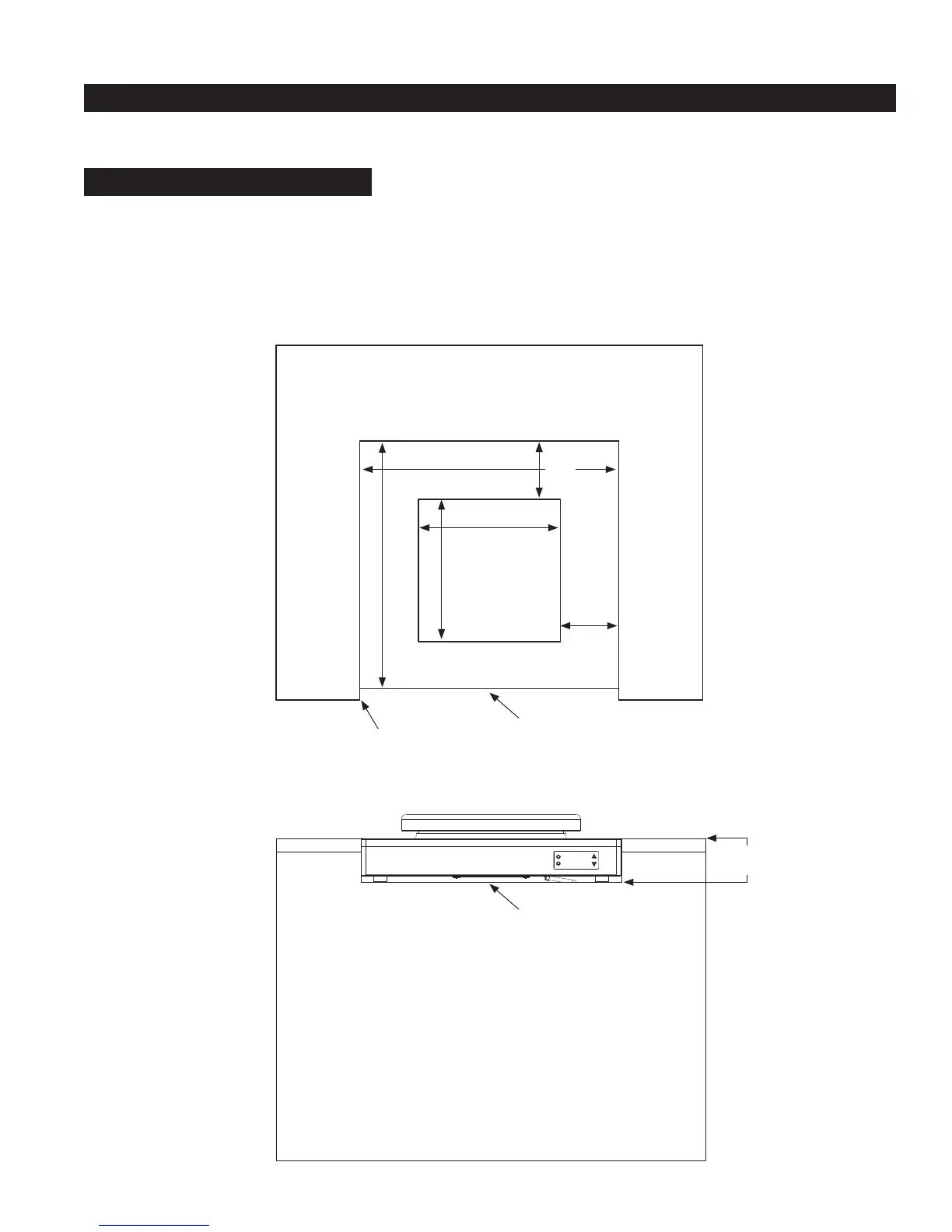

Top View
Unit and Cabinet Face
29 1/8” (740mm)
29 1/8” (740mm)
16” (406mm)
16” (406mm)
6 1/2”
(165mm)
Ventilation
Cut Out
Recommended For
Fixed Installations
1 1/4” (32mm)
Overhang
4 15/16”
(126mm)
Front View
6 1/2”
(165mm)
Allow 3/4” (19mm) air
space under unit.
Do not block this area.
