Connect Electrical Cord
Connecting Unit To Electrical Service
HIGH
VOLTAGE
FOR NORTH AMERICA OPERATION, ONLY CONNECT UNIT TO 120V, 1-PHASE, 20AMP
POWER WITH SUPPLIED NEMA 5-20P ELECTRICAL CORD.
DO NOT CONNECT TO DIRECT CURRENT (DC). INSTALLATION SHOULD CONFORM TO
THE NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC RULES AND REGULATIONS.
THE RECEPTACLE REQUIRED FOR THE EVO CENTRIC 20E IS A NEMA 5-20 SHOWN IN
THE ILLUSTRATION BELOW. THE NEMA 5-20 IS A 20AMP RATED RECEPTACLE. THE
MAXIMUM AMPERAGE DRAW OF THE CENTRIC 20E UNIT IS APPROXIMATELY 15.5 AMP.
THE EVO CENTRIC 20E REQUIRES A DEDICATED NEMA 5-20 RECEPTACLE CIRCUIT.

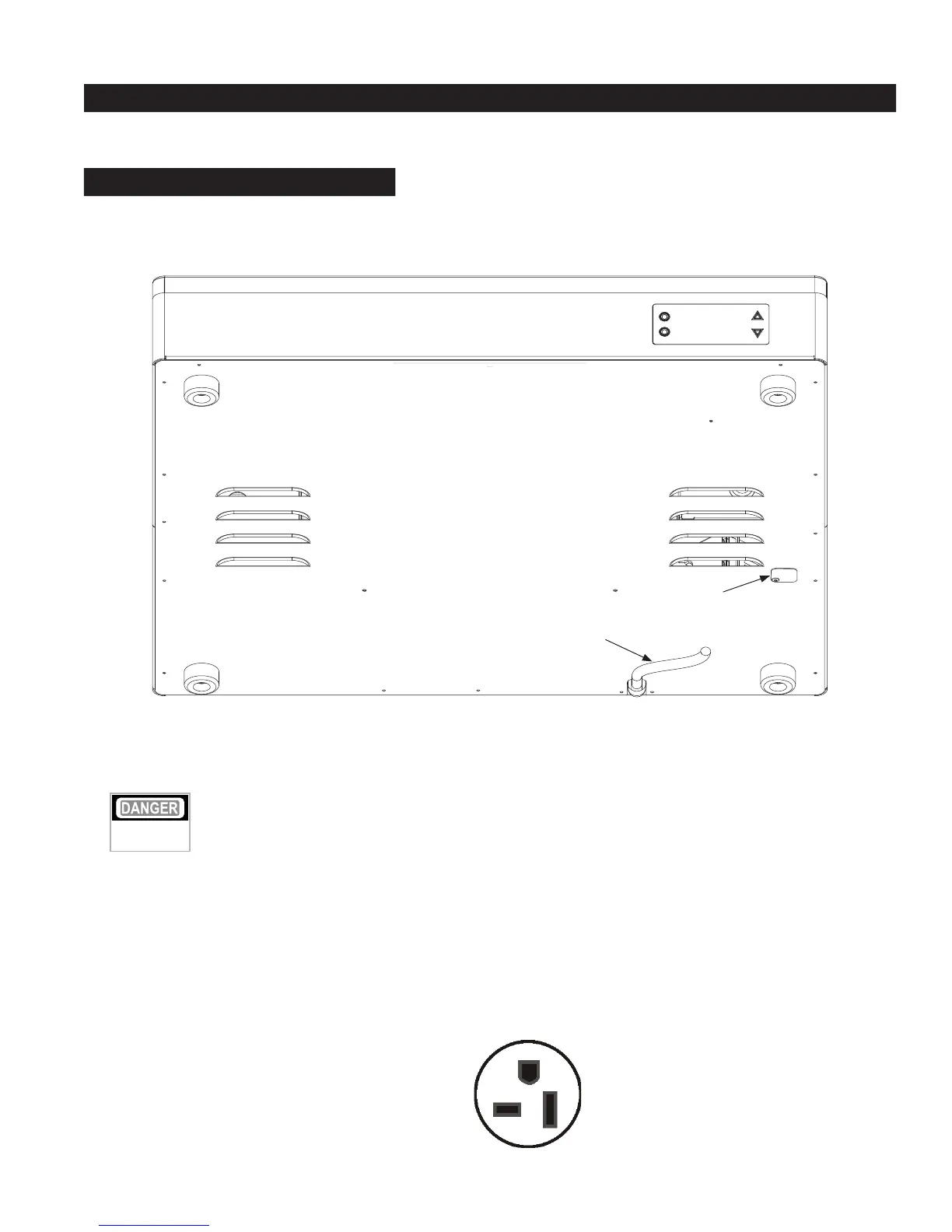

(Shown: Control Panel Front)
(Shown: Bottom)
Electrical Cord
USB Receptacle
(future upgrade feature)
Instruction Card
Slide Out
Instruction
