EVO SP8 includes eight high-quality EVO Mic Preamps, accessible through
the Combi-jacks found on the front and rear of the unit.
Mic Preamps and Line Level Inputs
To connect a line-level device, use a ¼” TRS jack, which will connect
to the centre of the Combi-connector. The Line Input automatically
reduces your signal level slightly to minimise the chance of overloading
the input and causing distortion.

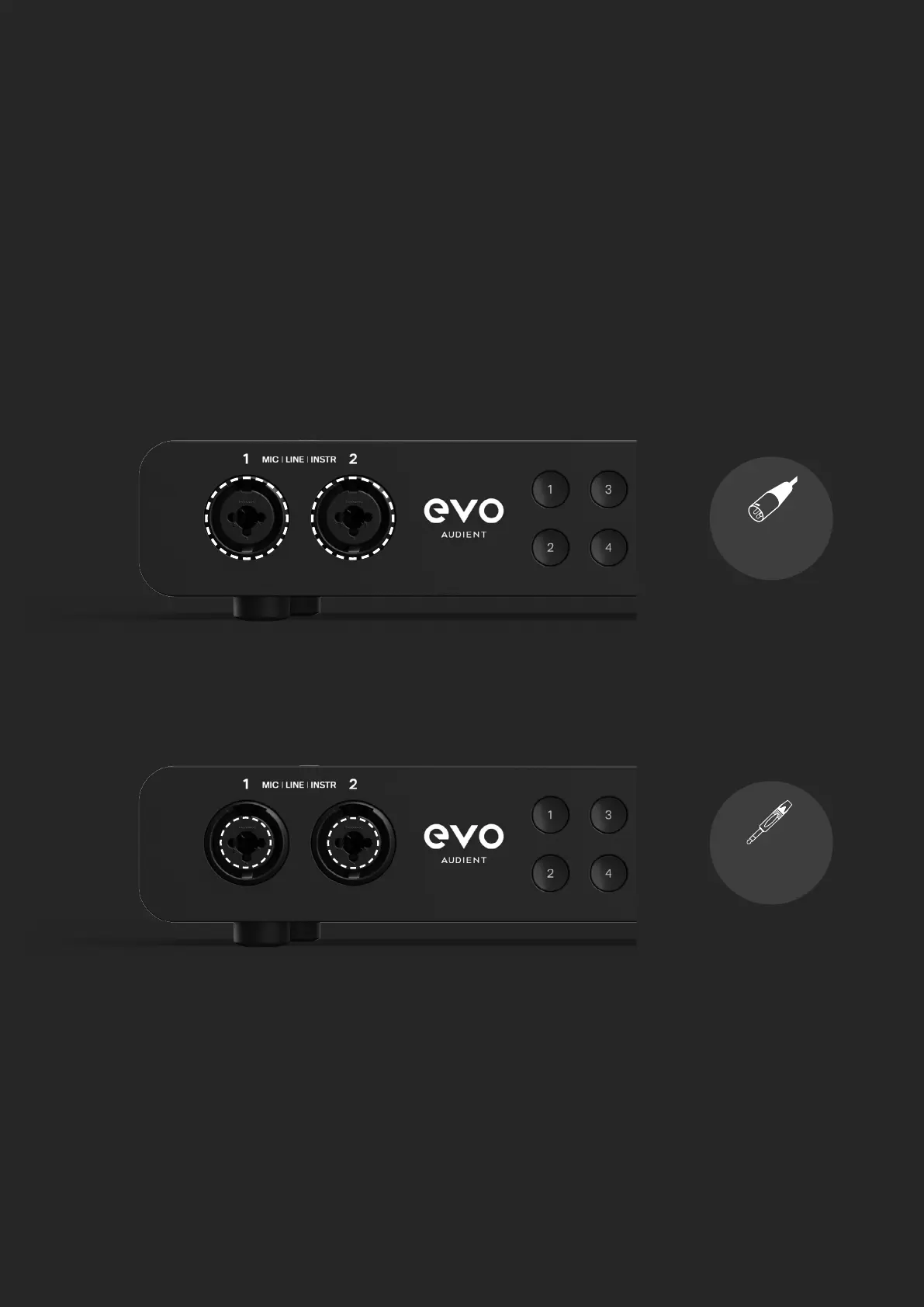

To connect a microphone, use an XLR cable which has three pins.
HARDWARE
TRS Jack
Connection
XLR Cable
Connection
