RACK MOUNTING
EVO SP8 RACK MOUNTING
EVO SP8 can be tted with optional Rack Ears which can be purchased from
your dealer. These can be attached to the sides of the unit with the contained
screws.
The following items are provided with an EVO SP8 Rack Ear Kit (check within
packaging):
4 x M4 Screws
2 x EVO Rack Ears
1. Use a 3mm hex driver to remove the two screws either side near the front
of the unit.
2. Position Rack Ear so that the four screw holes are inline with the four

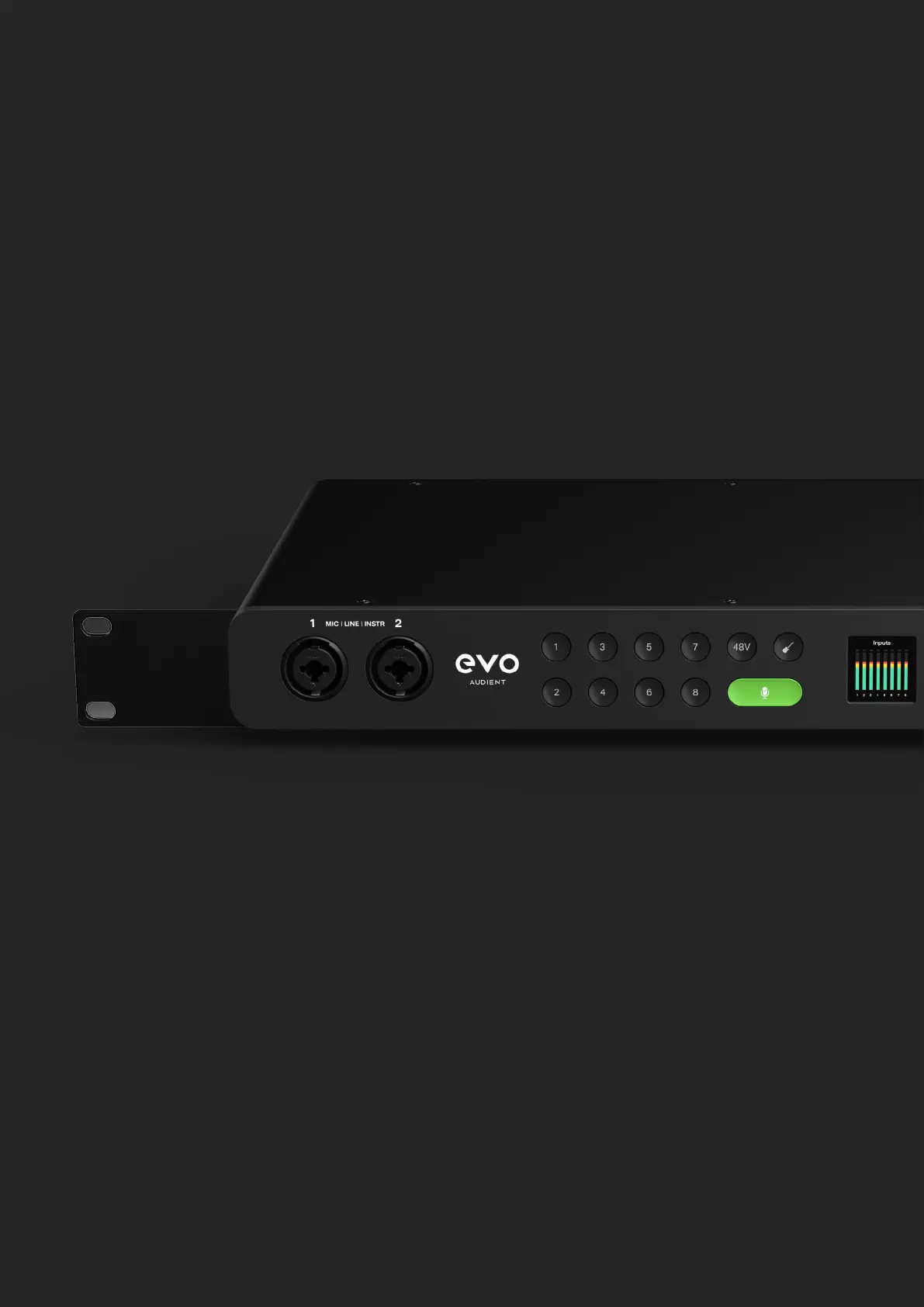

screw holes found on the side of the EVO SP8. Refer to the image above for
correct positioning.
3. Insert the 4 x M4 screws into the holes and tighten until rm.
4. Remove the rubber feet which are located on the bottom of the EVO SP8
using a Pozidriv screwdriver.
How to install the Rack Ears
