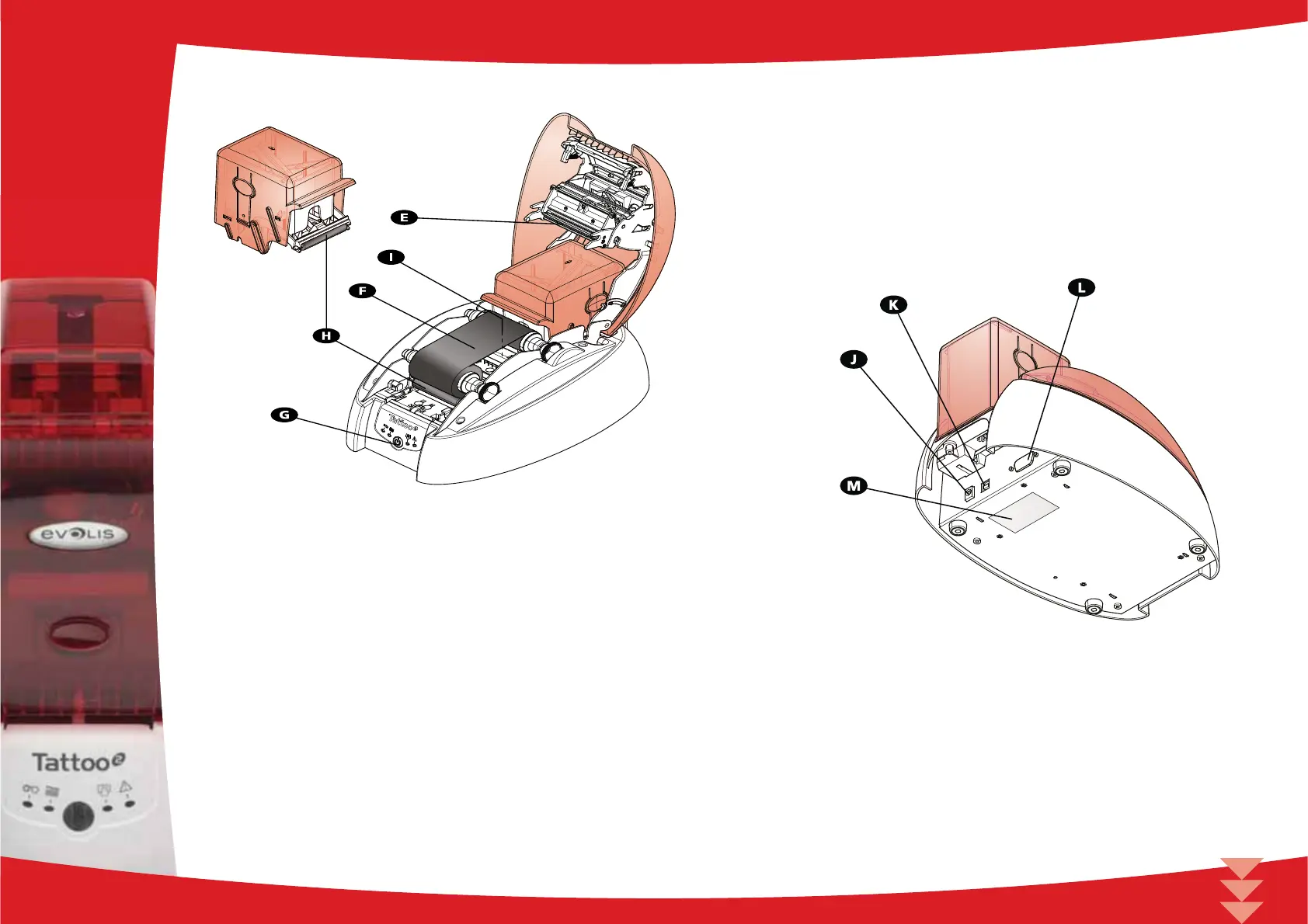

Evolis Tattoo 2 - Printer Description; Internal Printer Components

1
5
E - Thermal print head
F - Ribbon
G - Control button
H - Cleaning rollers
I - Magnetic encoder (option)
J - Power cable socket
K - USB socket (std)
L - DB-9 connector (option)
M - Serial number label
