Description Diagram Code EA Order Code
End Cap B EVOCONNUT
UV Bulb C Available from your EA Dealer*
Quartz Sleeve D Available from your EA Dealer*
Hosetail O-Ring E EVOUVORINGHOSET
Bulb Socket F LAMPHOLDER-T8
Quartz Sleeve O-Ring G EVOUVORINGZ
Locking Nut H EVO-M/F
End Cap Sealing Ring I EVOUVOFLATWASHER
evoUV DIAGRAMS AND COMPONENTS LIST (evo110)

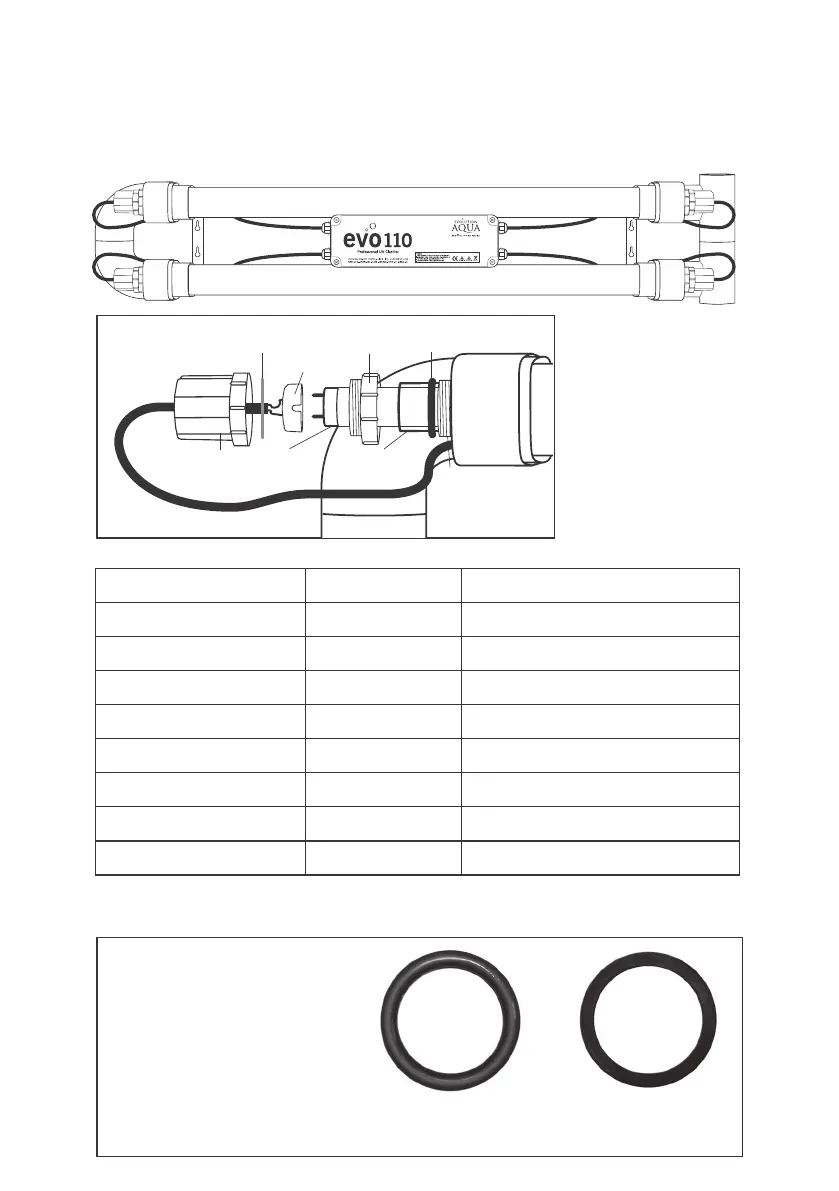

Please familiarise yourself with the components shown in the diagram below:
For European models two 2" imperial to 63mm metric reducers are supplied.
*For optimum
performance, the
electronic ballast has
been configured for
UV bulbs supplied by
Evolution Aqua. When
sourcing replacement UV
Bulbs or quartz sleeves
always buy components
supplied by Evolution
Aqua from your nearest
Evolution Aqua stockist.
These O-Rings are packed in
a small bag inside the box.
QTY X 4: Quartz Sleeve
O-Rings (G)
QTY x 4: End Cap
Sealing Rings (I)
IDENTIFYING THE O-RingS
Quartz Sleeve
O-Ring (G)
End Cap Sealing
Ring (I)
Round
O-Ring
Flat
Washer
(B)
(C)
(F)
(I)
(D)
Thread
(G)
(H)
