Evolution Aqua evoUV Series - Evouv Diagram and Components List

4
INLET / OUTLET
(A)
(E)
(B)
(C)(D) (H)
(G)
(F)
(I)
Professional UV Clarifier
Description Diagram Code EA Order Code
1½” Hosetail A HOSETAIL15TH
End Cap B EVOCONNUT
UV Bulb C Available from your EA Dealer*
Quartz Sleeve D Available from your EA Dealer*
Hosetail O-Ring E EVOUVORINGHOSET
Bulb Socket F LAMPHOLDER-T8
Quartz Sleeve O-Ring G EVOUVORINGZ
Locking Nut H EVO-M/F
End Cap Sealing Ring I EVOUVOFLATWASHER

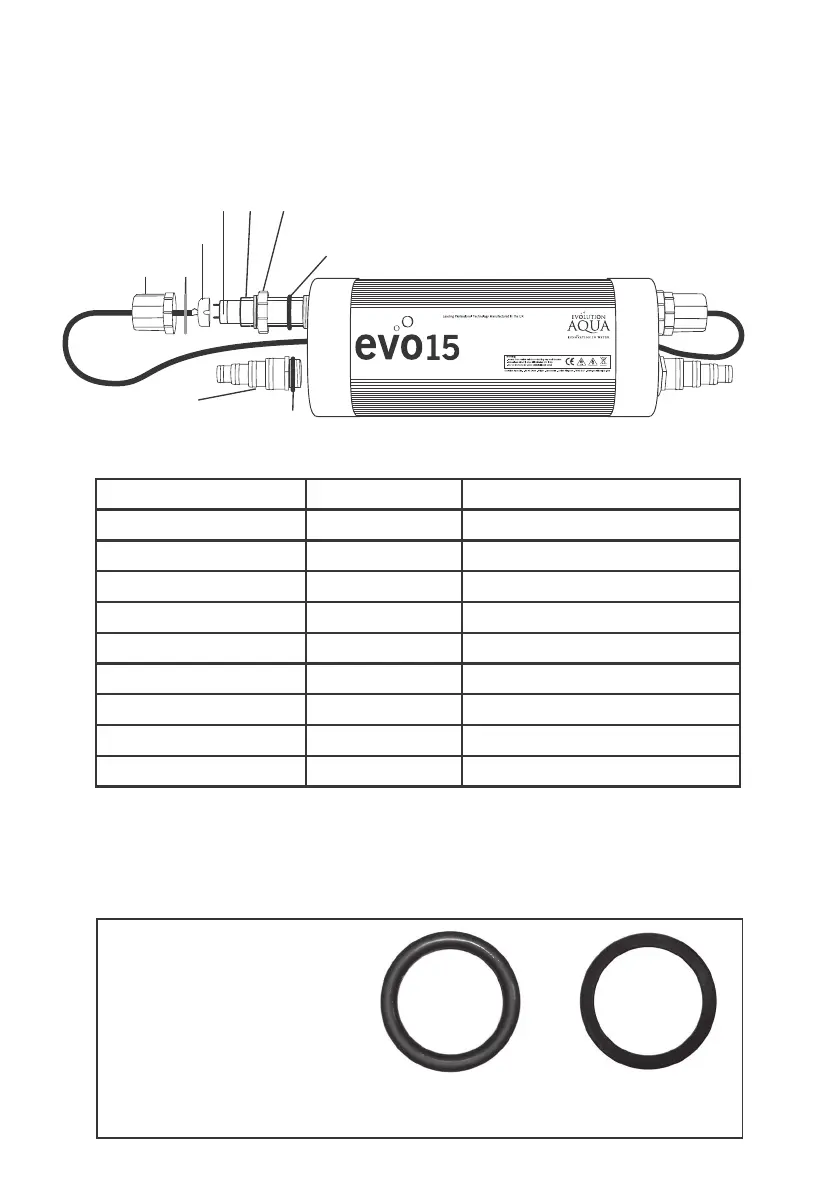

evoUV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
*For optimum performance, the electronic ballast has been configured for UV
bulbs supplied by Evolution Aqua. When sourcing replacement UV Bulbs or quartz
sleeves always buy components supplied by Evolution Aqua from your nearest
Evolution Aqua stockist.
These O-Rings are packed in
a small bag inside the box.
QTY X 2: Quartz Sleeve
O-Rings (G)
QTY x 2: End Cap
Sealing Rings (I)
IDENTIFYING THE O-RingS
Quartz Sleeve
O-Ring (G)
End Cap Sealing
Ring (I)
Round
O-Ring
Flat
Washer
