CUT AND REMOVE
UNWANTED HOSETAILS
CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
Connection with flexible hose
The evoUV is supplied with two universal hosetails to take ¾”, 1”, 1¼”, and
1½” diameter flexible hose. If you are using one of the two larger sizes, the smaller
sections of the hosetails must be cut off to ensure sufficient water flow and to prevent
possible damage to the pump. We recommend that you use the largest diameter hose

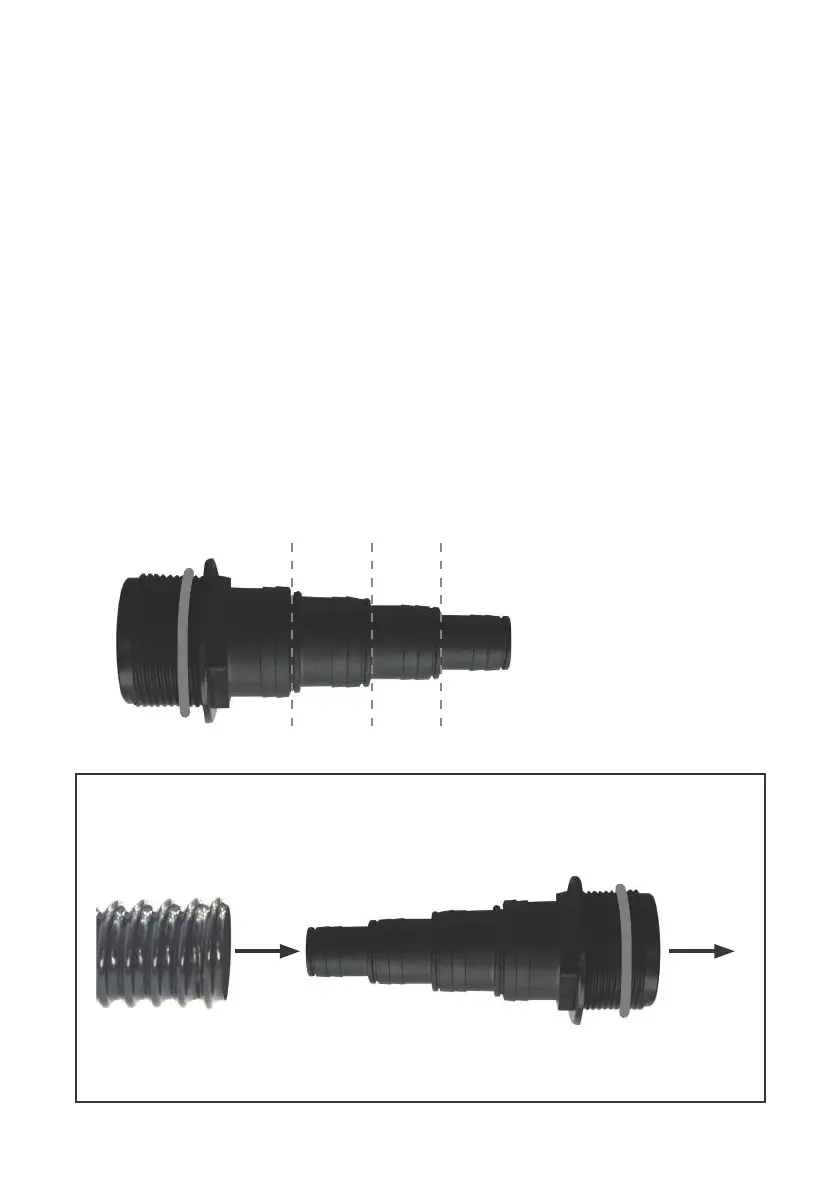

available. The hosetails should be trimmed away from the unit as shown in the diagram
below. Once the hosetails have been trimmed, attach them to the unit as shown below.
Secure the flexi-hose to the hosetail with a stainless steel hose clip (not provided).
The two universal hosetails supplied with the evoUV, should be screwed into the
inlet / outlet at either end of the unit. Hosetails should be tightened using hand
pressure only. Ensure that the O-Rings are in position before assembling. Please
note that there is no correct direction of flow through the unit, either end of the unit
may be used as the inlet or outlet.
IMPORTANT: Do not overtighten fittings.
CUT
1½” 1¼” 1” ¾”
CUT CUT
Screw into
evoUV
(Hand tight only)
Use these fittings to connect 1½" Flexible Hose to an evoUV.
Use a stainless steel hose clip (not supplied) to secure the hose to the fitting.
DO NOT OVERTIGHTEN HOSETAIL
CONNECTION TO FLEXIBLE HOSE
EA FITTING CODE:
HOSETAIL15TH
Threaded Hosetail Fitting
O-Ring
11
