CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
Connection using rigid pipe
The unit may also be rigid plumbed by the use of an adaptor (not supplied).
Use these fittings for a versatile option to connect 1½" Pressure Pipe.
This option allows for easy removal of the evoUV.

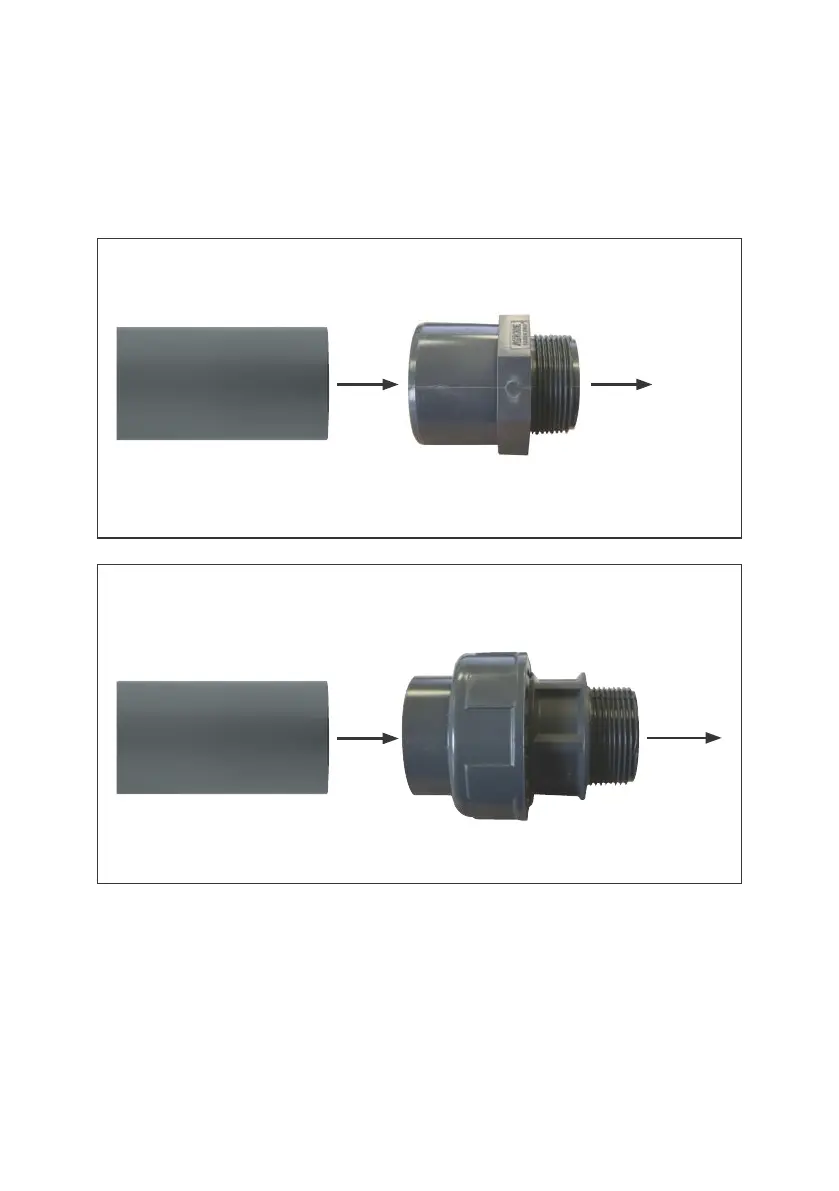

OPTION 1 - CONNECTION TO 1½" PRESSURE PIPE
OPTION 2 - VERSATILE CONNECTION TO 1½" PRESSURE PIPE
EA FITTING CODE:
K82-23-55
1½" Straight Connector Converter
Threaded Male to Plain Female
EA FITTING CODE:
K82-78-55
1½" Single Union
Threaded Male to Plain Female
EA PIPEWORK CODE:
U10-050
1½" Pressure Pipe
EA PIPEWORK CODE:
U10-050
1½" Pressure Pipe
Screw into
evoUV
Screw into
evoUV
Use these fittings to connect the evoUV to 1½" Pressure Pipe.
DO NOT OVERTIGHTEN FITTINGS
DO NOT OVERTIGHTEN FITTINGS
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS
12
To Next Page
