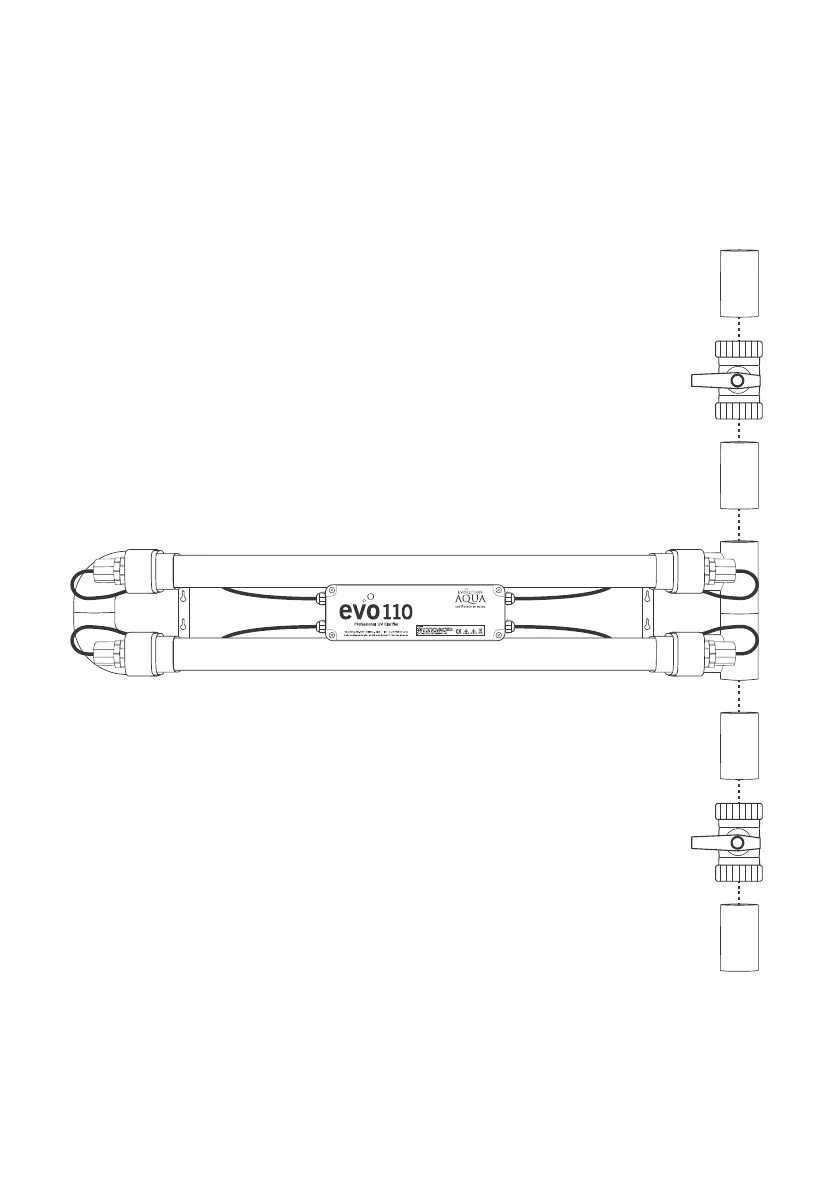

CONNECTION TO YOUR PIPEWORK (evo110)
EA CODE:
K25-50-63"
2" Double
Union
Ball Valve
EA CODE:
K25-50-63"
2" Double
Union
Ball Valve
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
13
CONNECTION USING RIGID PIPE
All fittings connected to the evo110 should be
glued using solvent weld adhesive.
EA CODE: S79-0-500
We recommend using a 2" Double Union Ball
Valve glued to a length of 2" Pressure Pipe at
each end of the UV. This will enable you to
isolate the UV during maintenance.
EUROPEAN MODELS (NOT UK)
European adapter fittings are supplied with EU
models to allow connection to 63mm pipe.
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS
