Evolution Controls EVO/ECM-Modbus - Configure the gateways BACnet IP port

©Evolution
Controls Inc.
10-Sept-2020
EVO/™ECM-Modbus RTU Series 2 Page 35
Application Guide
©2020 All Rights Reserved
Evolution Controls Inc.
San Diego, CA USA

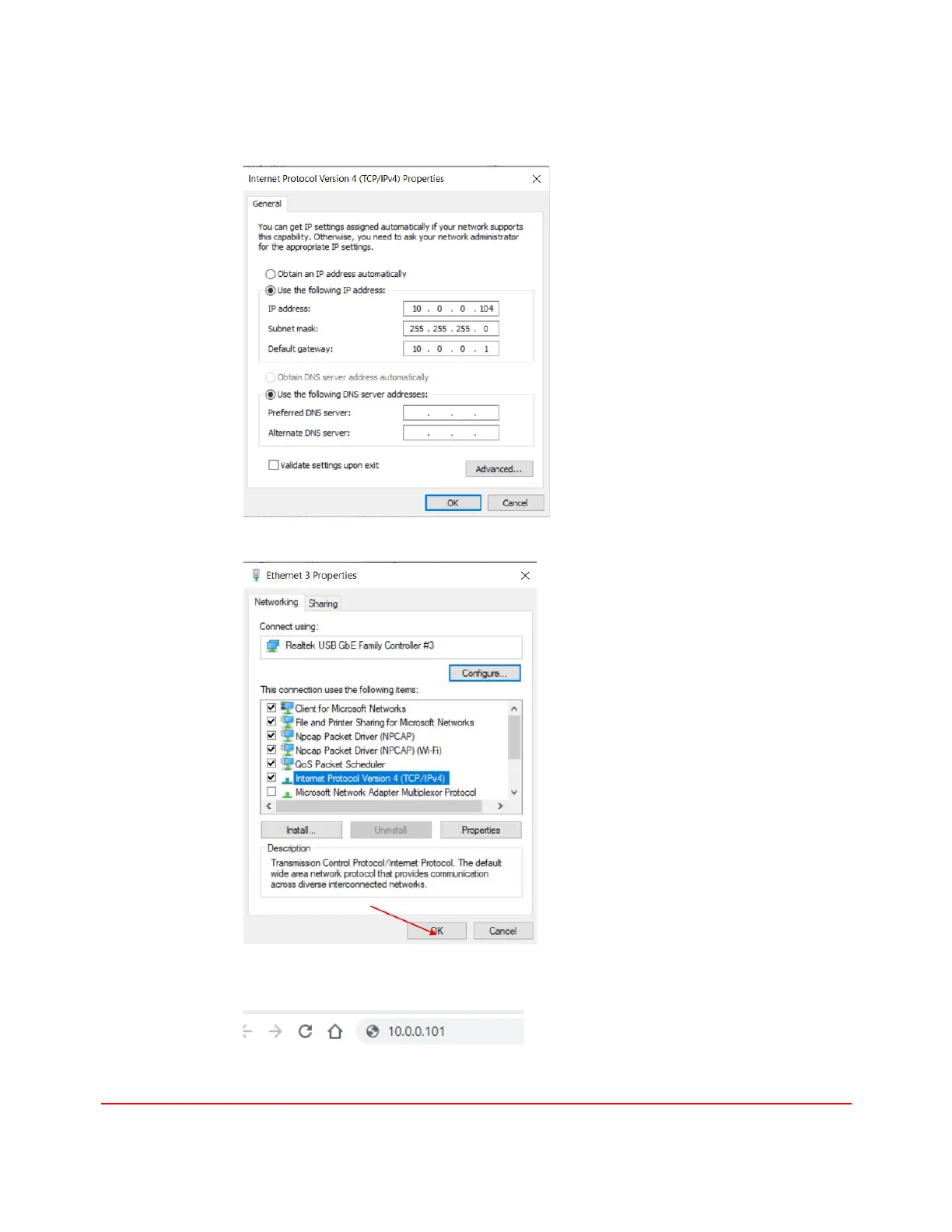

address, subnet mask and Default Gateway in the 10.0.0.0 domain as shown
below and click the OK button to close the dialog.
6. Click the OK button to close the Properties dialog
7. Open an Internet browser and enter 10.0.0.101 in the address bar and press
Enter
8. The browser will access and display the embedded website in the gateway.
