1. CUTTING HANDLE
2. BLADE GUARD LOCKING TRIGGER
3. DUST BAG*
4. SLIDE LOCKING SCREW
5. DEPTH GAUGE
6. 2 PC HOLD DOWN CLAMP
7. SLIDING FENCE
8. MACHINE TABLE EXTENSIONS
9. MOUNTING HOLE (X4)
10. FRONT CLAMP HOLES
11. BLADE ROTATION INDICATION ARROW
12. UPPER BLADE GUARD
13. CUTTING HEAD
14. BLADE
15. LOWER BLADE GUARD
16. TABLE TOP
17. ROTARY TABLE
18. TABLE INSERT
19. MITRE HANDLE LOCKING KNOB
20. POSITIVE STOP LOCKING LEVER
21. MITRE ANGLE SCALE
22. SLIDE RAIL PROTECTOR*
23. DUST PORT ADAPTER*
24. 3 PC HOLD DOWN CLAMP*
25. FRONT CLAMP*
*Supplied as original equipment on the R255SMS+.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

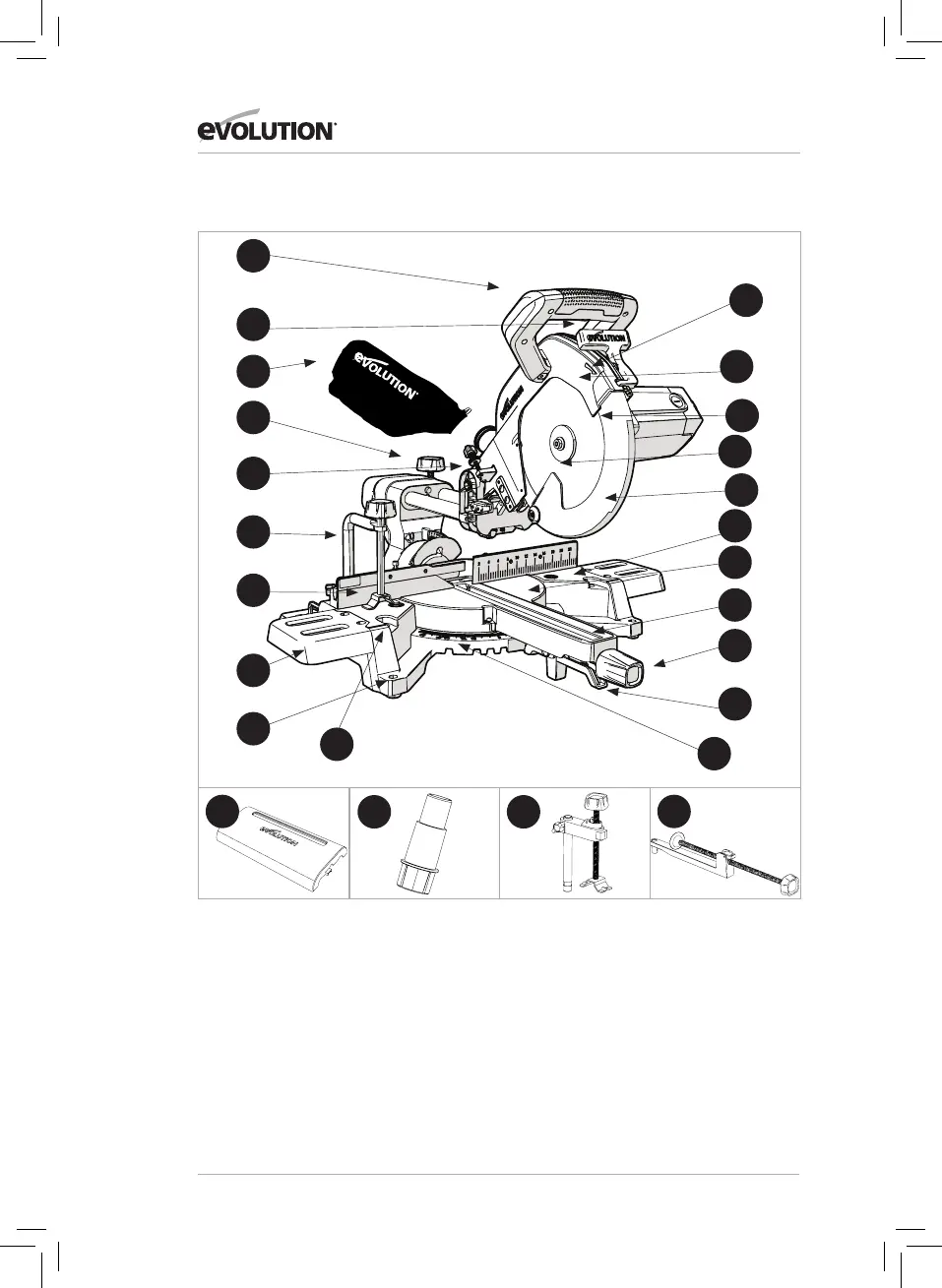

MACHINE OVERVIEW
22 25
2423
Pictured: F255SMS (See * for R255SMS+ Parts)
14
