NOTE: Always make a ‘dry run’ with the
machine switched ‘off’ so that the path of
the blade can be checked. Some Bevel and
Compound Cuts may require the Hold Down
Clamp to be positioned to the RH side of the
Cutting Head. This may be necessary to avoid
interference with the blade and other parts of
the machine as the Cutting Head is lowered.
8. Fence Adjustment
NOTE: The left hand side of the fence is
provided with additional adjustments. The
upper portion of the fence can slide to the
left to provide clearance for the blade. This
may be necessary when acute bevel angles
are selected.
To adjust the fence:
• Loosenthethumbscrew.(Fig 14)
• Slidetheupperportionofthefenceto
the required position and tighten the
thumbscrew.
• LowertheCuttingHeadtocheckthepath
of the blade. Ensure there is no interference
with any other parts of the machine.
9. Compound Cutting
A Compound Cut is a combination of a Mitre
Cut and Bevel Cut.
• SettheMitreAnglerequiredaspreviously
described.
• SettheBevelAngleaspreviouslydescribed.
• Ensurethetightnessofalladjustment/
locking screws, and conduct a ‘dry run’ to
check the path of the blade.
• Makethecutaspreviouslydescribed.
10. Cutting Bowed Material (Fig 15)
Before cutting any workpiece, check to see
if it is bowed. If it is bowed the workpiece
must be positioned and cut as shown. Do not
position the workpiece incorrectly or cut the
workpiece without the support of the fence.
11. Clearing Jammed Material
• Turnmitresaw“OFF”.andallowthe
blade to come to a complete halt.
• IfpossibleallowtheCuttingHeadtorise
to its upper position.
• UnplugtheMitreSawfromthemains
supply.
• Carefullyremoveanyjammedmaterial
from the machine.

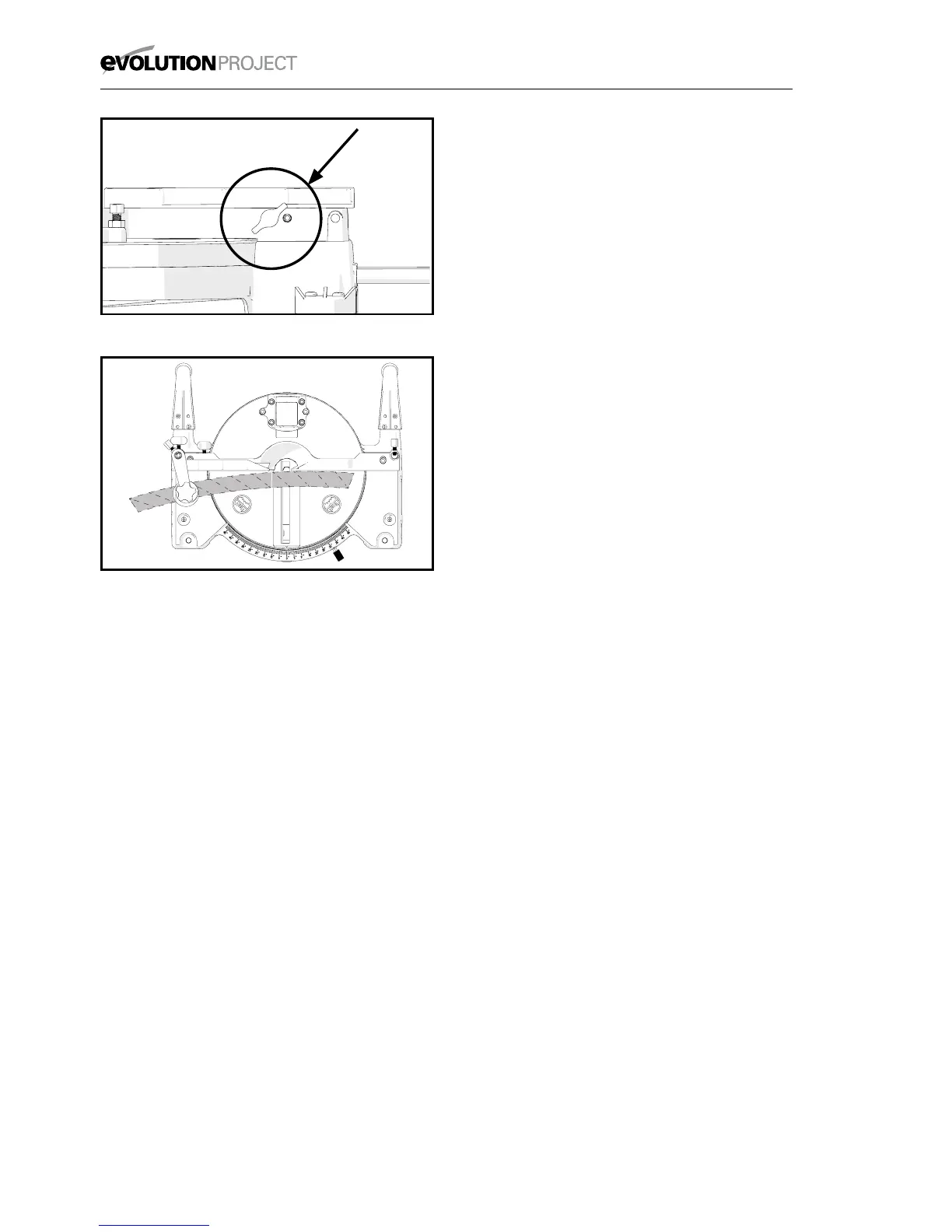

Fig. 15
Fig. 14
