Evolution Fury 6 User Manual

www.evolutionfury.com
19
5. Chop Cutting
The Cutting Head is gently pushed down to
cut through the workpiece.
• PlacetheworkpieceontheRotaryTableand
against the fence in the desired position.
Secure with clamp(s) as appropriate.
• GrasptheCuttingHandle.
• Turnonthemotorusingthetrigger
switch and allow the blade to reach
full operating speed.
• PressandholdtheCuttingHeadRelease
Lever to release the Cutting Head.
• GentlylowertheCuttingHeadtoitslowest
position, cutting through the workpiece.
• Afterthecutiscompleted,turnoffthe
motor by releasing the trigger switch.
Allow the blade to come to a complete
stop. Allow the Cutting Head to rise to its
upper position.
• Onlyremoveyourhandsortheworkpiece
from the machine when the Cutting
Head is in its upper position with the
blade teeth completely covered by the
Retractable Blade Guard.
6. Mitre Cutting
Any angle from 45
0
left to 45
0
right is
available, and a protractor scale can be
found to the front of the Rotary Table.
Positive stops are provided for every 5
0
of
angular movement.
NOTE: The rotary table must always be locked
into position with the Mitre Angle Locking
Screw even if a positive stop is selected.
To select a Mitre Angle:
• LoosentheMitreAngleLockingScrew.
(Fig.12) This is found at the front RH side
of the table near the 30
0
index mark.
• TurntheRotaryTabletotherequired
angle. To aid setting, an index mark is
machined into the table just in front of the
table insert.
• TightentheMitreAngleLockingScrew
securely when the desired angle has
been selected.
A Mitre Cut can now be made using the
same techniques as previously described in
Chop Cutting.
7. Bevel Cutting
The Cutting Head can be set at any angle up
to 45
0
to the Left Hand side only.
The Bevel Locking Lever is found at the
rear of the machine. A protractor guide
and pointer are incorporated into the bevel
mechanism to aid setting. (Fig.13)
To set a Bevel Angle:
• LoosentheBevelLockHandle
• TilttheCuttingHeadtothedesiredangle.
Use the protractor guide to aid with setting.
• EnsurethattheBevelLockHandleis
securely tightened when the desired
angle has been achieved.
A Bevel Cut can now be made using the
same techniques as previously outlined.

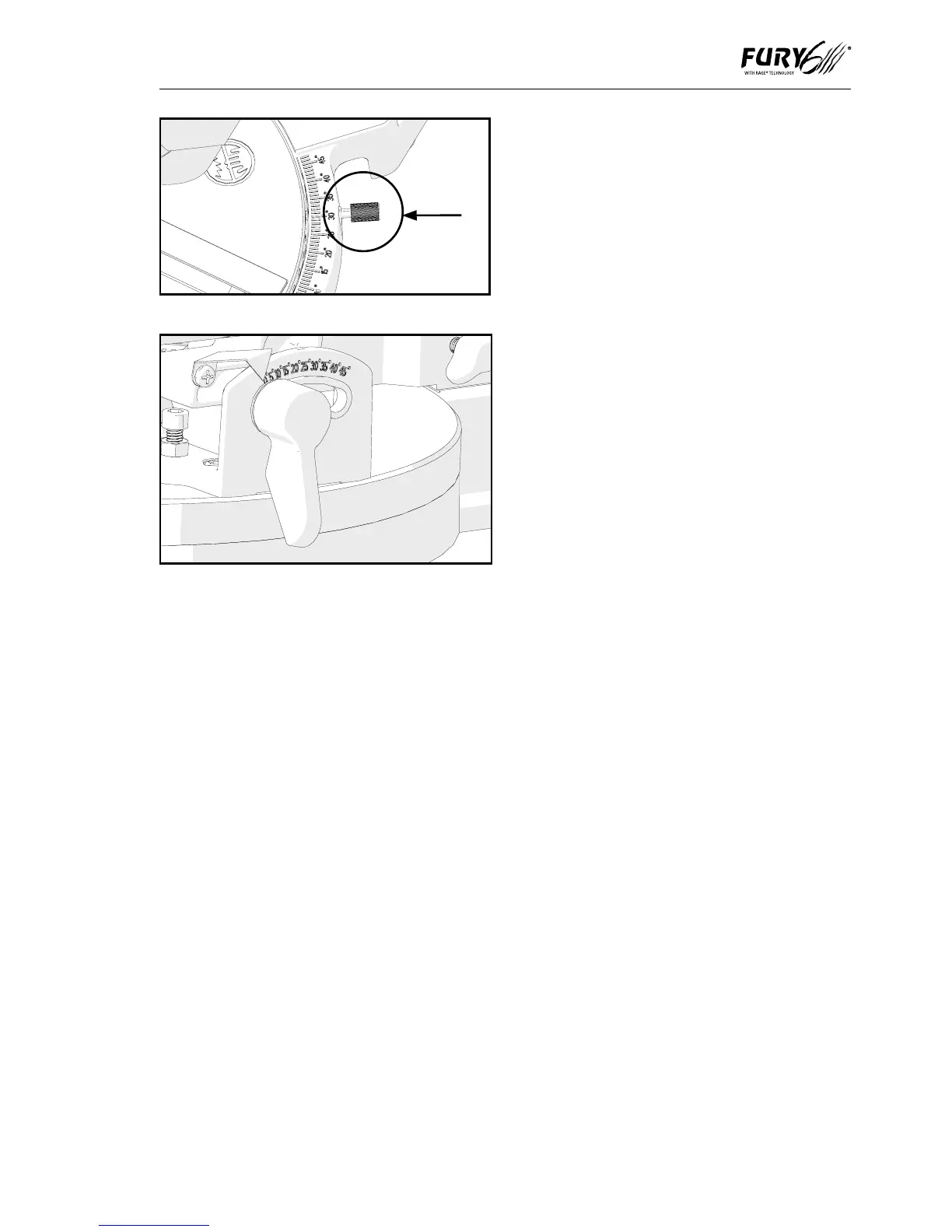

Fig. 13
Fig. 12
