When cutting operations are completed, return the cutting
head to the vertical position and return the 33.9˚ Bevel Pin to
its outer (disengaged) position.

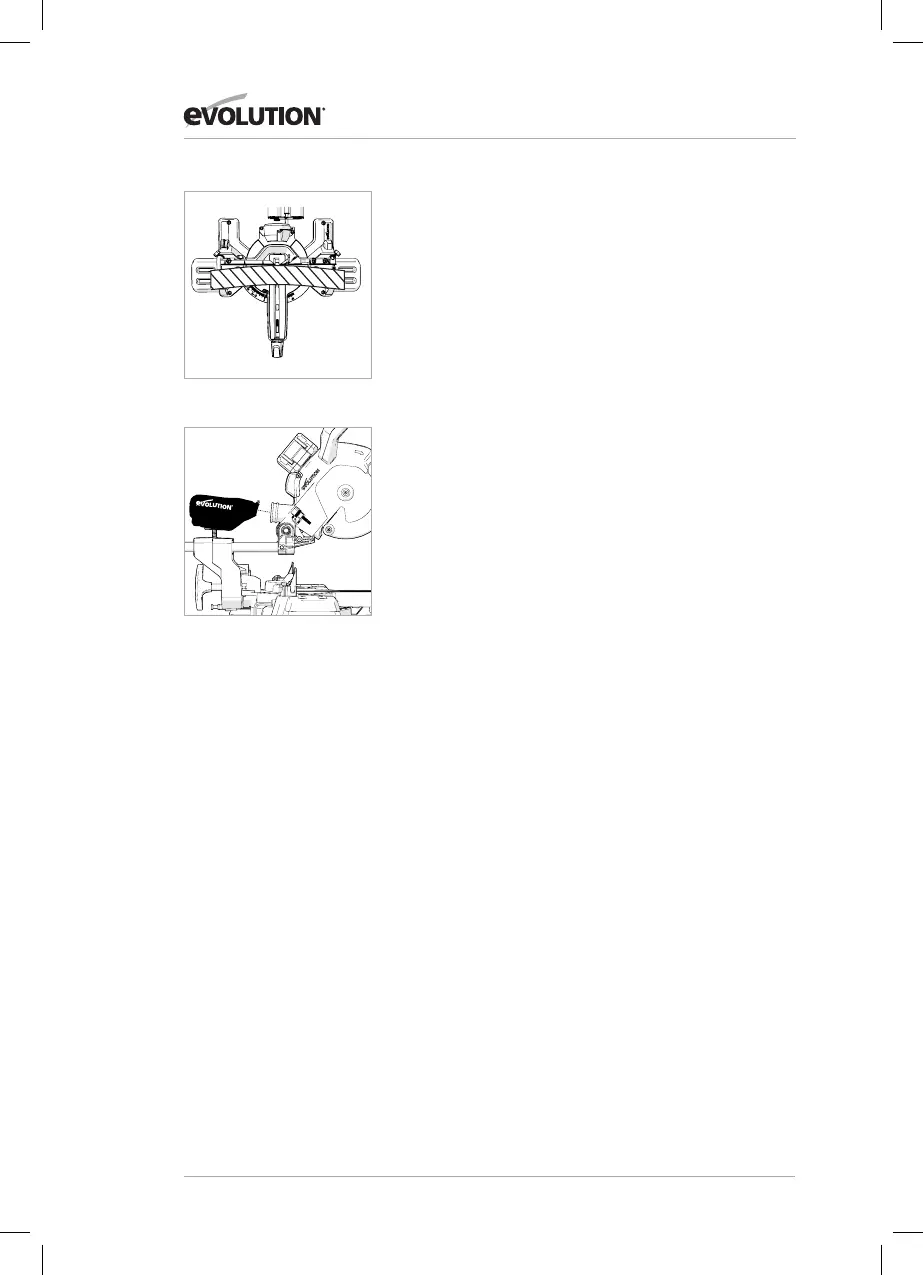

CUTTING BOWED MATERIAL (Fig. 49)
WARNING: Before cutting any work-piece, check to see if it is
bowed. If it is bowed the work-piece must be positioned and
cut as shown.
Make sure the workpiece is positioned securely and
supported by the fence.
CLEARING JAMMED MATERIAL
• Turn mitre saw “OFF” by releasing the trigger switch.
• Allow the blade to come to a complete halt.
• Remove the battery from the machine.
• Carefully remove any jammed material from the machine.
• Check the condition and operation of the safety guard.
• Check for any other damage to any part of the machine e.g.
the blade.
• Have any damaged parts replaced by a competent
technician and a safety inspection carried out before using
the machine again.
The free end of a long work-piece should be supported at
the same height as the machines rotary table. The operator
should consider using a remote work-piece support stand,
adjustable workmate or saw horse etc.
EVOLUTION ACCESSORIES
DUST BAG
A Dust Bag can be fitted to the extraction port at the rear of
the machine. The Dust Bag is for use when cutting wooden
materials only.
• Slide the Dust Bag over the dust extraction port, ensuring
that the spring clip grips the port holding the Dust Bag
securely in place. (Fig. 50)
Note: For operational efficiency empty the Dust Bag when it
becomes 2/3 full. Dispose of the contents of the Dust Bag in
an environmentally responsible way. It may be necessary to
wear a dust mask when emptying the Dust Bag.
WARNING: Do not use the Dust Bag when cutting metallic
materials including wood with nails.
Fig. 49
Fig. 50
28
