• Earth sense connection (for diagnostic use only, not configured in installations)
3.1.2. Tethered

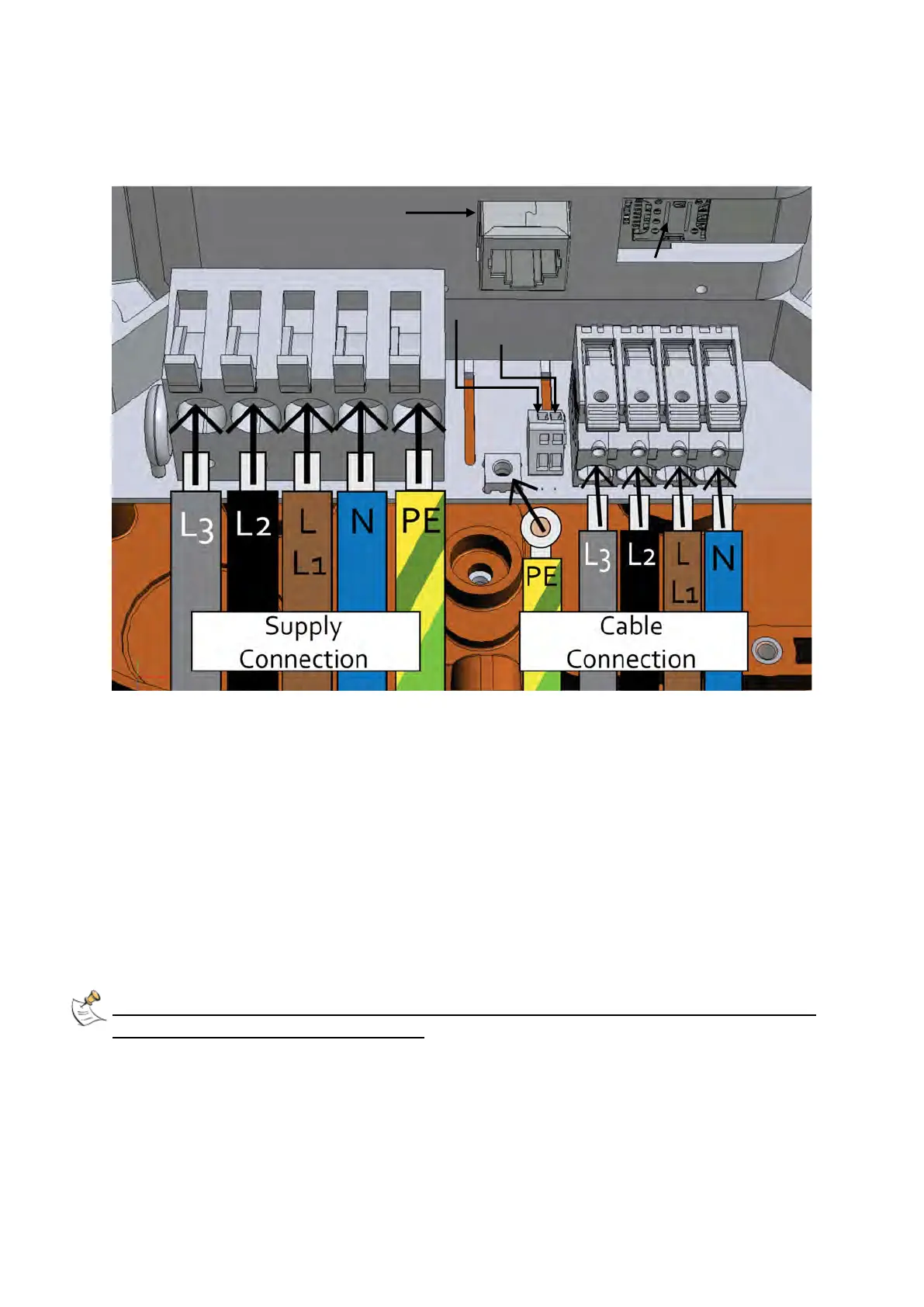

Tethered charger models need the following setup:
• Communication cable (Ethernet and/or RS-485 connection) – to RJ-45 Port
• SIM Card for network connection
• Power:
o Single-phase models – L(L1)/N/PE connection from distribution board
o Three-phase models – R/S/T (L1/L2/L3) + N + PE connection from distribution
board
• Output:
o Single-phase models – L(L1)/N/PE connection to tethered cable
o Three-phase models – R/S/T (L1/L2/L3) + N + PE connection to tethered cable
o CP connection from tethered cable
• Earth sense connection (for diagnostic use only, not configured in installations)
Note: the charger tethered chargers use a dedicated PE output terminal. Connection to the terminal is
made using a secure cable lug and M4 screw.
