7. Appendix III: Installing/Removing the service hatch
1
2
3
4
5

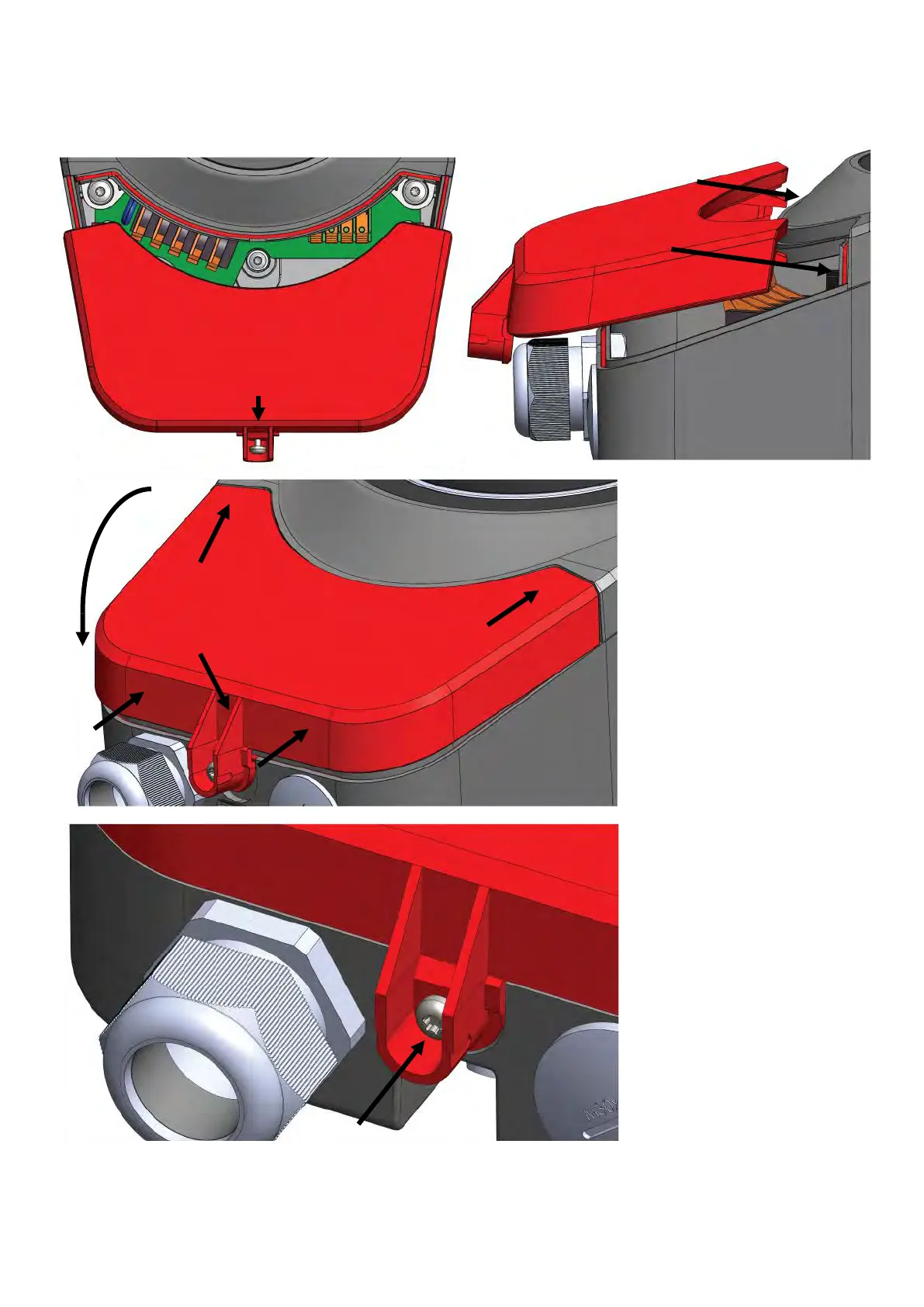

1. Ensure that the panel
captive screw is fully
retracted into the hatch
body.
2. Place the cover on the
main body by first guiding
the upper rim and hooks
into the charger
3. Swing the service hatch
into position, ensuring that
the sealing rim is correctly
seated. A small gap will
remain.
4. Push the lower edge of
the service lid firmly forward
and down until the lid locks
into place with an audible
click and the gap disappears.
5. Use a Torx screwdriver to
fasten the panel captive
screw and lock the service
hatch in place.
6. To remove the service
hatch, execute steps 1-5 in
reverse order.
