2. Installation: Mechanical
2.1. Installing the mounting plate
The charger comes with a mounting accessory to facilitate installation and servicing. The
charger locks into the mounting bracket and is secured with a single screw, located under
the service hatch.
The bracket is wall-mounted via four anchor bolts provided in the kit. A drill template is available
on the back of the quick installation manual, which can be used to correctly locate the holes for
the anchoring bolts.

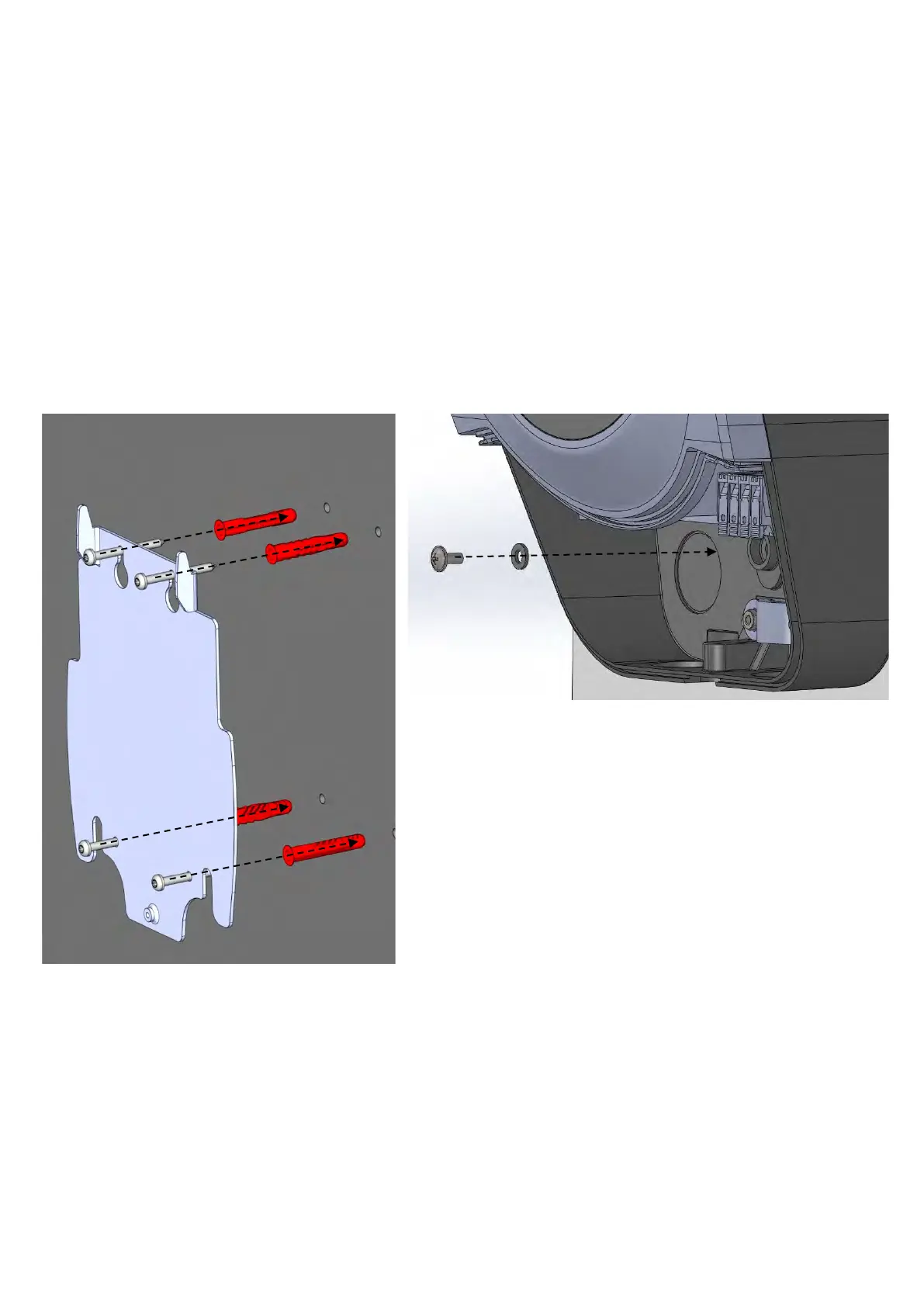

The charger body is attached to the mounting plate by locking its upper side onto the metal
hooks and then securing the bottom as shown below.
