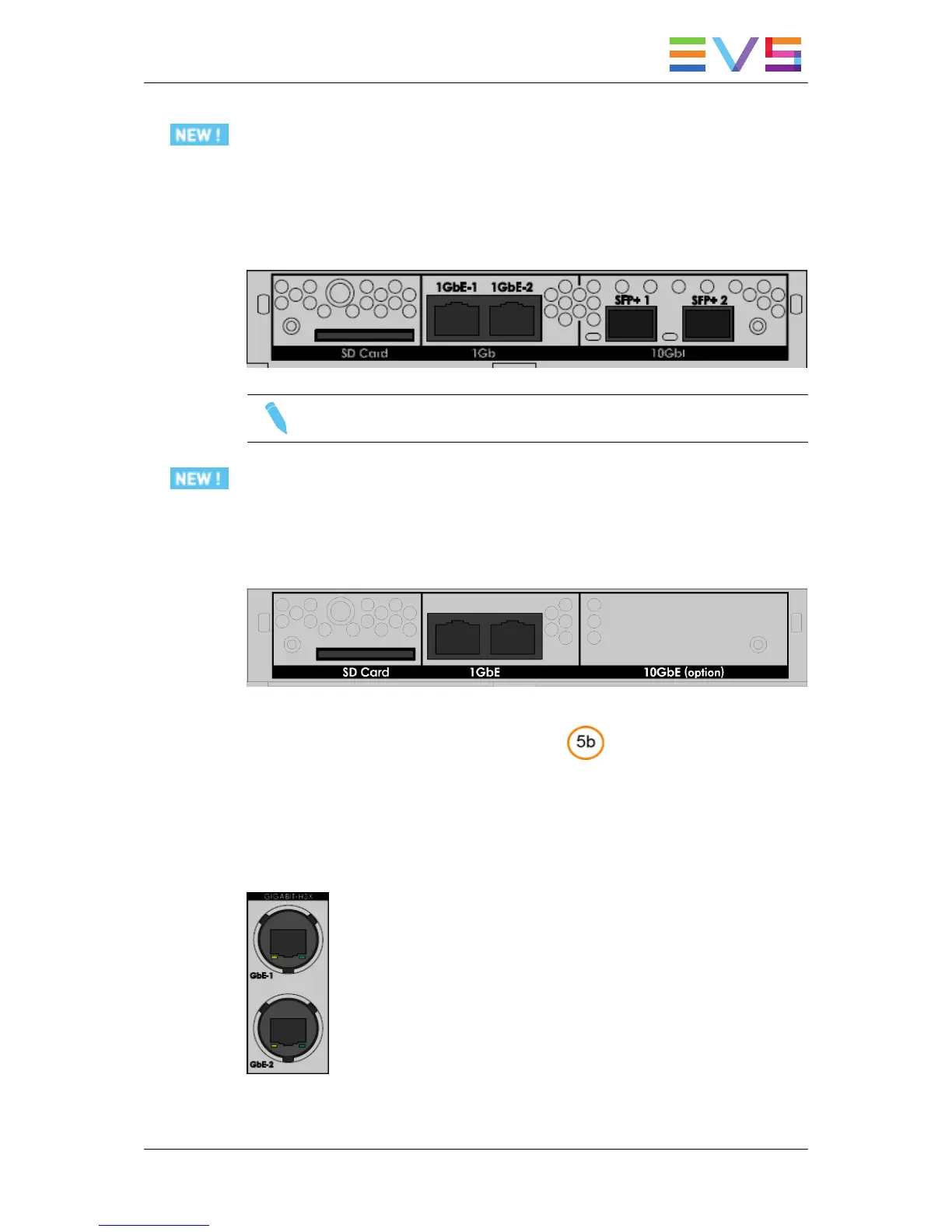

• It hosts the full Gigabit connector module.
The Gigabit Ethernet connector module allows the interconnection of servers, other
EVS, and/or third-party systems into a Gigabit Ethernet network via:
◦ 2 SFP+ connectors, each offering a global bandwidth of 10 GbE
◦ 2 RJ45 connectors, each offering a global bandwidth of 1 GbE
◦ SD card slot
Note
The 10 GbE and 1GbE connectors cannot be used at the same time.
• It hosts a light version of the Gigabit connector module.
The Gigabit Ethernet connector module allows the interconnection of servers, other
EVS, and/or third-party systems into a Gigabit Ethernet network via:
◦ 2 RJ45 connectors, each offering a global bandwidth of 1 GbE
◦ SD card slot
Gigabit-H3X Ethernet Connectors
The Gigabit-H3X Ethernet connectors (1GbE) are currently located at the top right of the
rear panel (5b).
The Gigabit-H3X Ethernet connectors allow the interconnection of servers, other EVS,
and/or third-party systems into a Gigabit Ethernet network, with a global bandwidth of 1
GbE.
HARDWARE TECHNICAL REFERENCE MANUAL XS Server 12.05
5. Hardware Installation and Cabling 49
