EVS XS - Block Diagram

Note that a V3X board with genlock must be installed as V3X #1 in first position (slot 2) in
the server. A V3X board with genlock can never be installed in any other slot, and thus
cannot be used instead of V3X #2 or #3. Doing so will result in conflicting electrical signals
inside the system.
Block Diagram

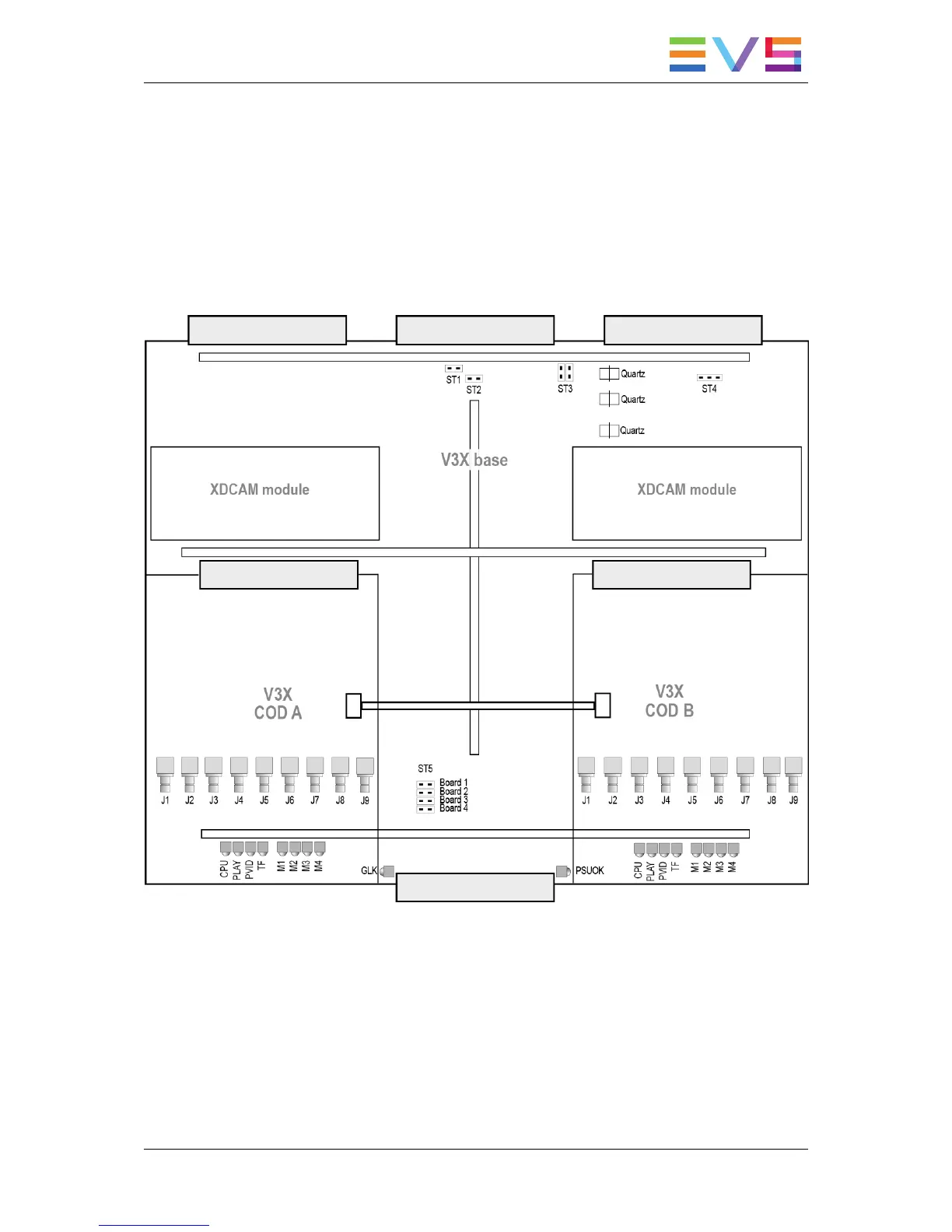

The block diagram of the V3X board with genlock is illustrated hereunder with the
connectors, jumpers and LEDs location:
