5.4.4. Monitoring Audio DA-15 Pinout

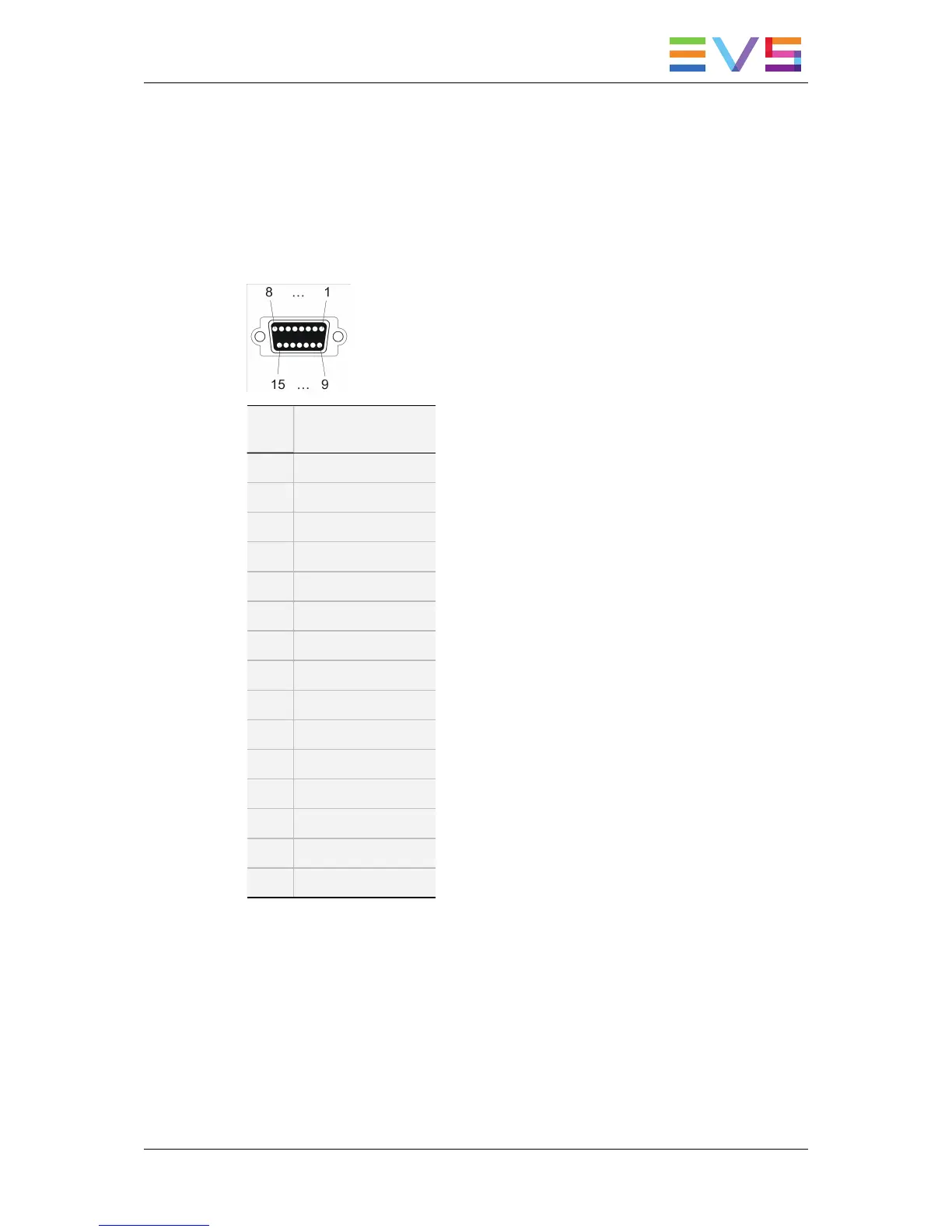

The monitoring audio DA-15 connector is illustrated hereunder (connector installed on the
rear panel and viewed from outside). Its pinout is described in the following table.
The DA-15 monitoring audio connector is only available on the 4U chassis of the XS
server.
Pin #
DA-15connector
Outputs 1-4 (mono)
1 Gnd
2 Analog output 1 +
3 Gnd
4 Analog output 2 +
5 Gnd
6 Analog output 3 +
7 Gnd
8 Analog output 4 +
9 Analog output 1 -
10 Gnd
11 Analog output 2 -
12 Gnd
13 Analog output 3 -
14 Gnd
15 Analog output 4 -
