EVS XS - GP out Connections

5.8.2. GP Out Connections

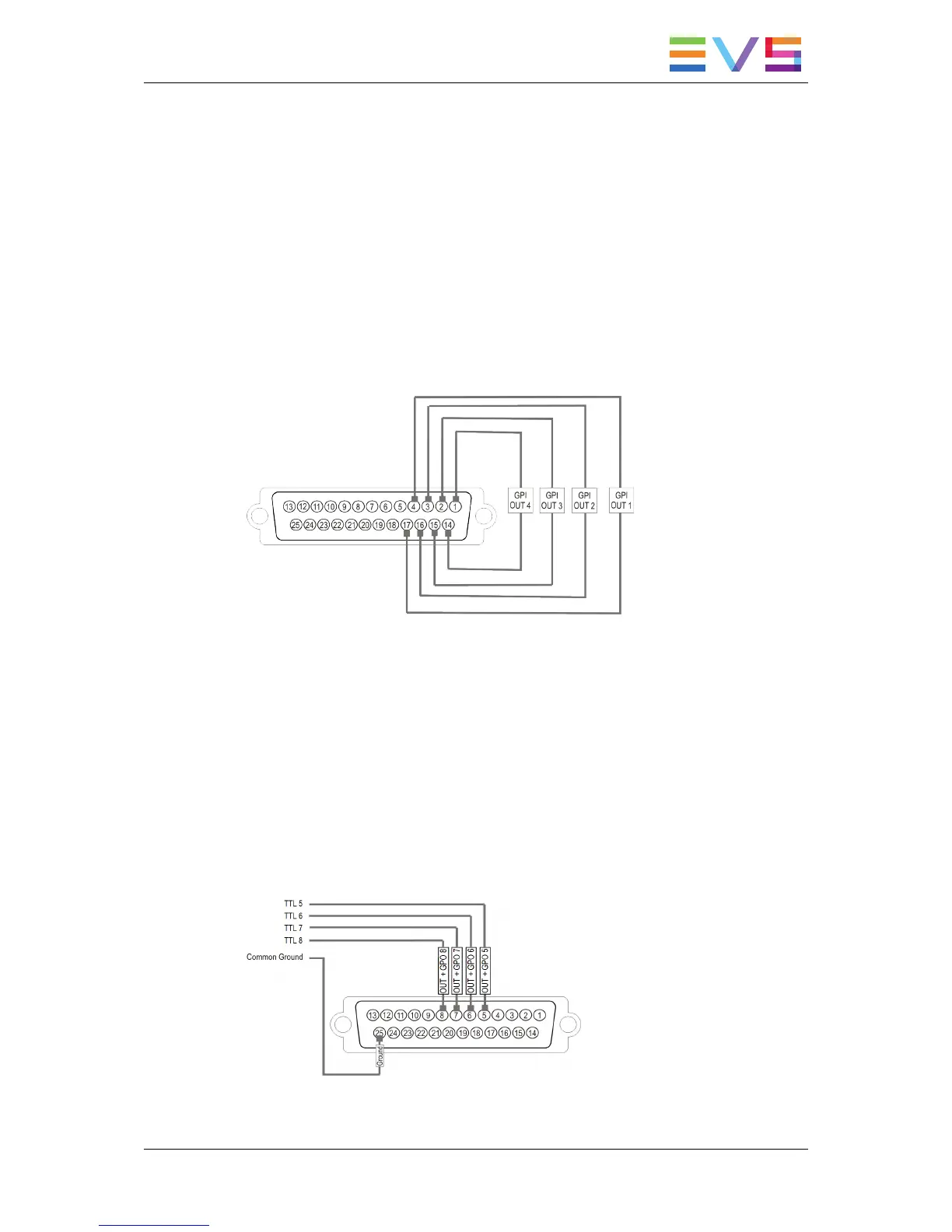

Relay Isolated Outputs (GP Out 1, 2, 3, 4)
Pin-Out
The user can define the functions, types and settings associated to the GPI outs in the
following applications:
• Setup menu of the Remote Panel
• IP Director settings (GPI and Auxiliary Track tab)
Specifications
• normally open contact (power off -> open)
• maximum 1A
• maximum 50 Volts
• typical life time: 100.000.000 switchings
TTL Outputs (GP Out 5, 6, 7, 8)
Pin-Out
