Digital Audio
The audio inputs and outputs are available on multi-pin (DA-15) connectors for audio
signal inputs and outputs in digital format.
See section "Audio Connections" on page 56 for more details on the DA-15 connectors
pinout according to the different configurations.

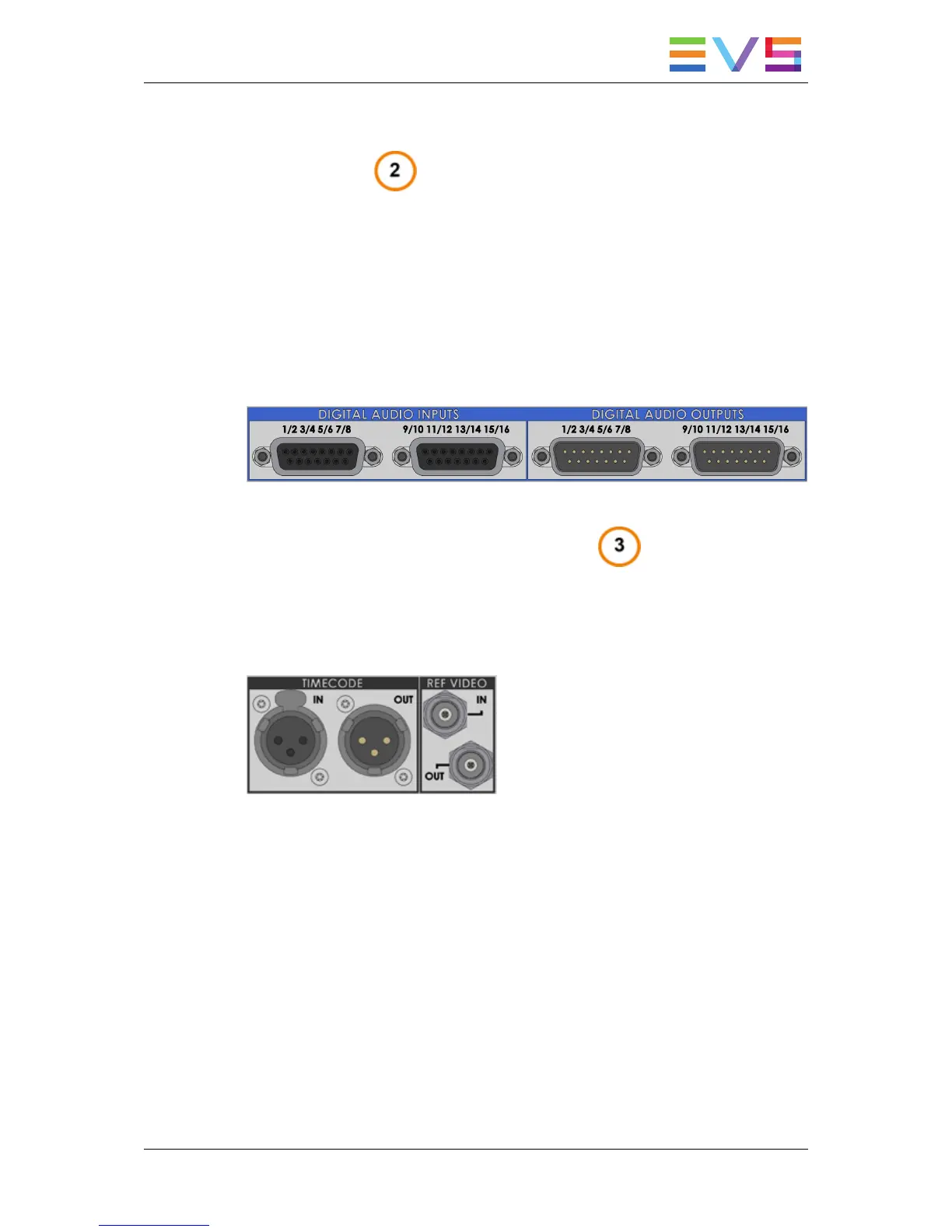

The following digital audio connectors layout are delivered with the XS 4U server:
DA-15 Connectors
4 multi-pin DA-15 connectors (2in and 2out)
Timecode and Video Ref Connectors
The Timecode connectors allow the server to receive the LTC timecode reference signal
and send the LTC timecode that corresponds to PGM1.
The Ref Video connectors allow the server to receive or send back the analog genlock
reference signal.
