Issue
10.03.B
XT Series DISK RECORDER
–
Version 10.03 - Hardware Technical Reference
EVS Broadcast Equipment SA
–
July 2010
24

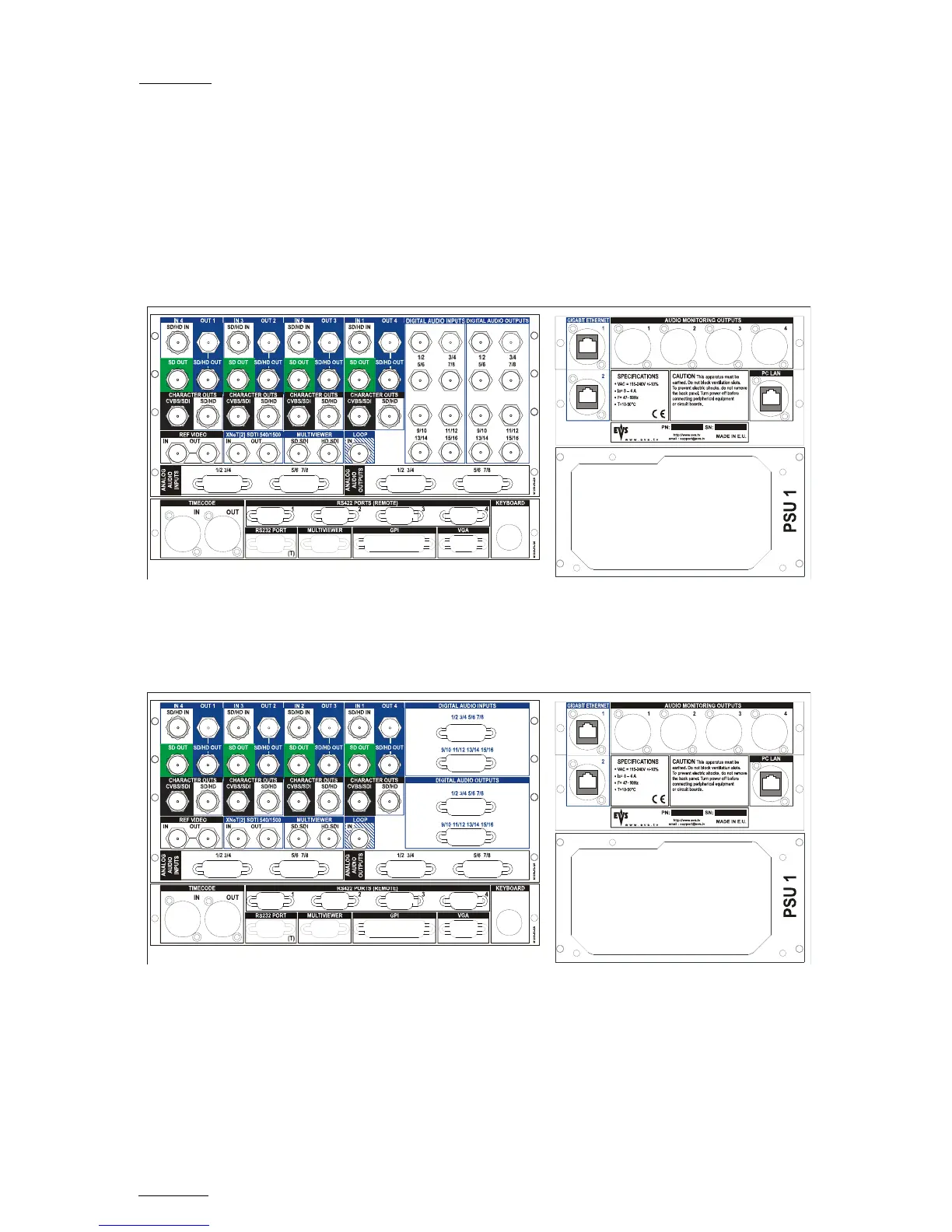

2.2 XT[2] 4U BACK PLANE
2.2.1 (XT[2]H-4-A3) SHOWN WITH OPTIONAL AES ON BNC
CONNECTOR OPTION
2.2.2 (XT[2]H-4-A3B) SHOWN WITH OPTIONAL AES ON MULTI-
PIN CONNECTOR OPTION
