EVS XT[2] User Manual

Issue
10.03.B
XT Series DISK RECORDER
–
Version 10.03 - Hardware Technical Reference
EVS Broadcast Equipment SA
–
July 2010
30
2.7 AUDIO CONFIGURATIONS
2.7.1 CODA FOR XT[2]
Internal Audio Module: Embedded + AES/EBU + Analogue Balanced
• Embedded Audio 64 channels (input or output)
• AES/EBU Audio 16 inputs + 16 outputs (110 Ohm balanced on SUB-DB15,
breakout cable with 4 XLR IN/OUT available optionally OR 75 Ohm unbalanced
on BNC)
• Analogue Balanced audio 8 inputs + 8 outputs (110 Ohm balanced on SUB-
DB15, breakout cable with 4 XLR IN/OUT available optionally OR XLR)
• Audio monitoring : 4 analogue balanced mono outputs (XLR)

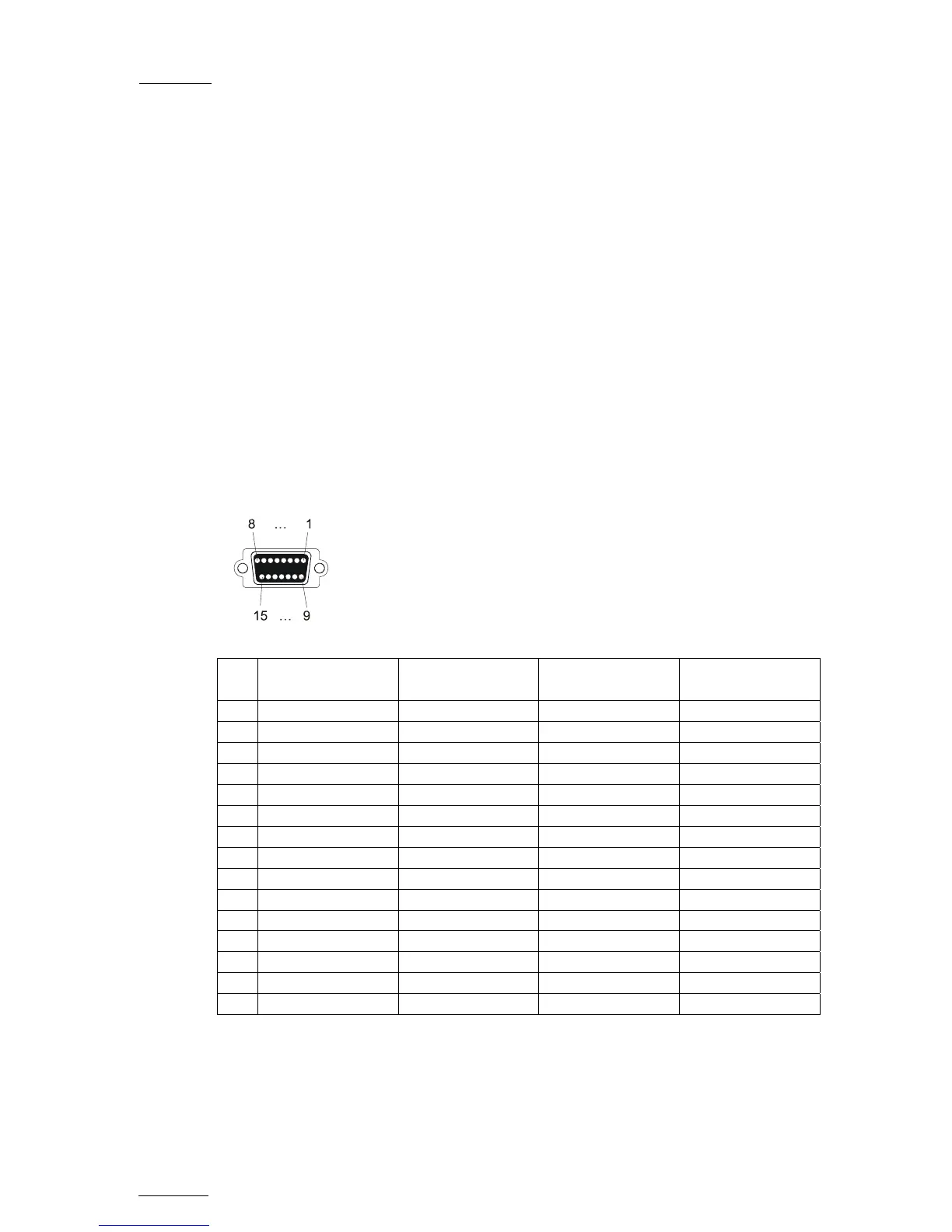

2.7.2 PIN ASSIGNMENT ON SUB-DB15 CONNECTORS
AES DB15 Connectors
Pin
#
Sub-DB15 #1
Inputs 1-8 (mono)
Sub-DB15 #2
Inputs 9-16 (mono)
Sub-DB15 #3
Outputs 1-8 (mono)
Sub-DB15 #4
Outputs 9-16 (mono)
1 GND GND GND GND
2 AES input 1/2 + AES input 9/10 + AES output 1/2 + AES output 9/10 +
3 GND GND GND GND
4 AES input 3/4 + AES input 11/12 + AES output 3/4 + AES output 11/12 +
5 GND GND GND GND
6 AES input 5/6 + AES input 13/14 + AES output 5/6 + AES output 13/14 +
7 GND GND GND GND
8 AES input 7/8 + AES input 15/16 + AES output 7/8 + AES output 15/16 +
9 AES input 1/2 - AES input 9/10 - AES output 1/2 - AES output 9/10 -
10 GND GND GND GND
11 AES input 3/4 - AES input 11/12 - AES output 3/4 - AES output 11/12 -
12 GND GND GND GND
13 AES input 5/6 - AES input 13/14 - AES output 5/6 - AES output 13/14 -
14 GND GND GND GND
15 AES input 7/8 - AES input 15/16 - AES output 7/8 - AES output 15/16 -
