EVS XT[2] User Manual

XT Series DISK RECORDER - Version 10.03 - Hardware
Technical Reference Manual
Issue
10.03.B
EVS Broadcast Equipment SA
–
July 2010
47
J5 Not installed Not installed n.a.
J6 SDI program output
(SD)
HD SDI program output
(HD)
SD/HD Out
J7 SDI program output
(SD, identical to J6)
HD SDI program output
(HD, identical to J6)
SD/HD Out
J8 SDI input
(SD)
HD SDI input
(HD)
SD/HD In
J9 Alternate SDI input
(SD, for hardware loop)
Alternate HD SDI input
(HD, for hardware loop)
Used for loop in
(*) The switch between SDI and CVBS on J1 is done by a software setting in the EVS
Configuration menu.

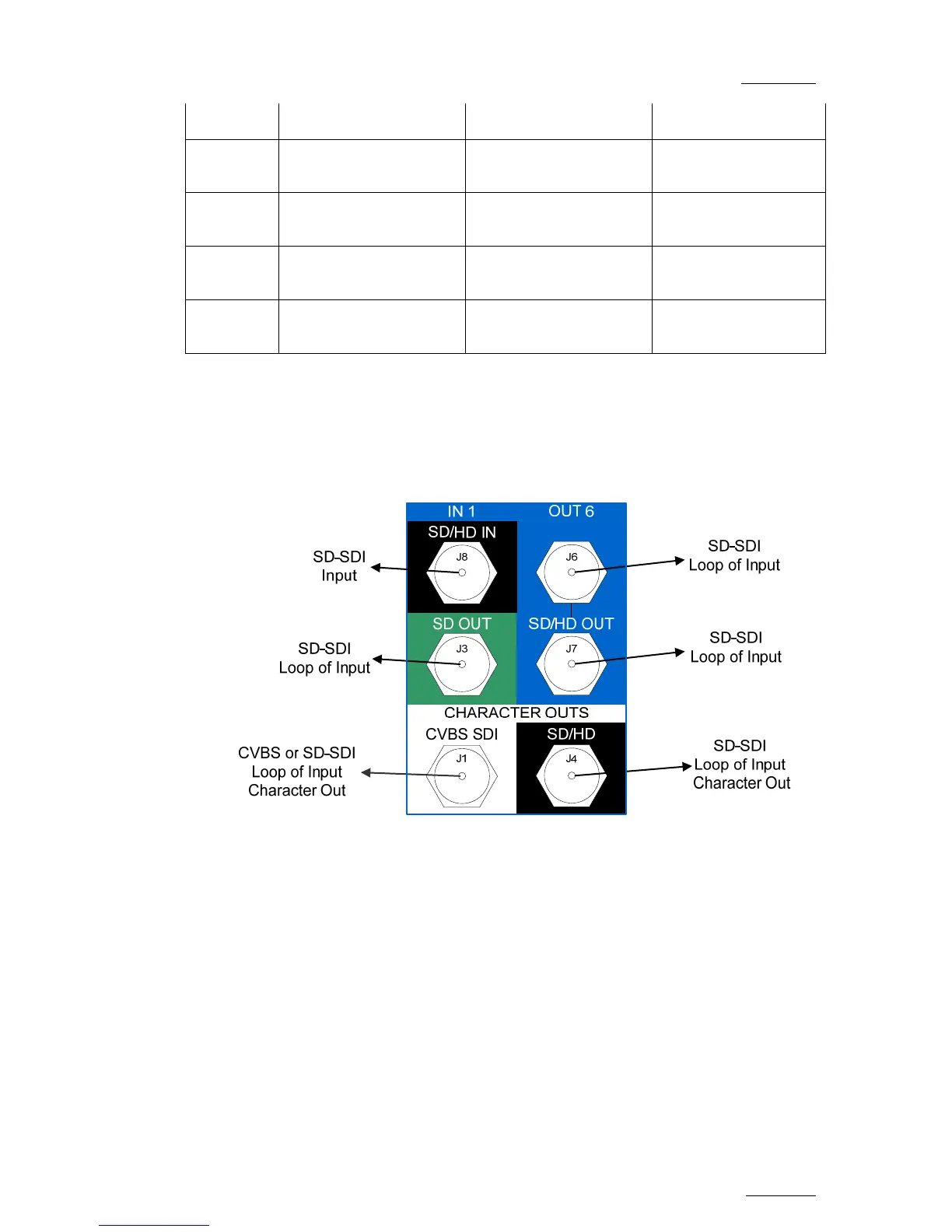

The following diagrams show the connector positions:
SD Mode - Input
