Hardware description
Chapter 2.
2.4
Mechanical outline

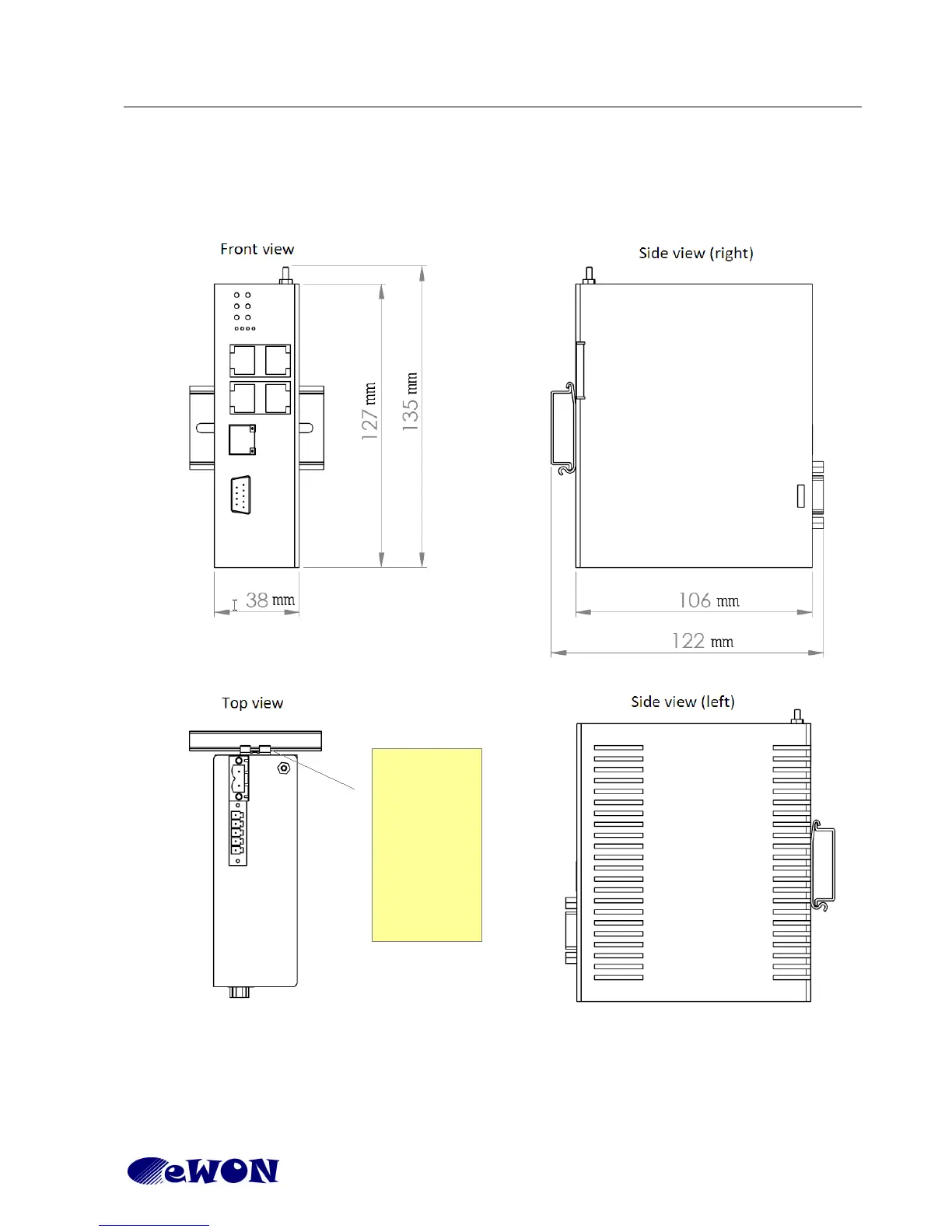

The recommended free space in the cabinet for the eWON should be at least:
40-mm wide x 200-mm high x 160-mm deep (includes space for smooth cable bending).
eWON COSY 141 - Installation Guide (How to)
Page 5/20
Latch for
Omega-shape
DIN rail
to EN50022.
Hook unit
on upper
slider edge
and move
down until
latch clicks.
4
6
