Exalto Wiper Technologies type CT3N - 11
4. Operation

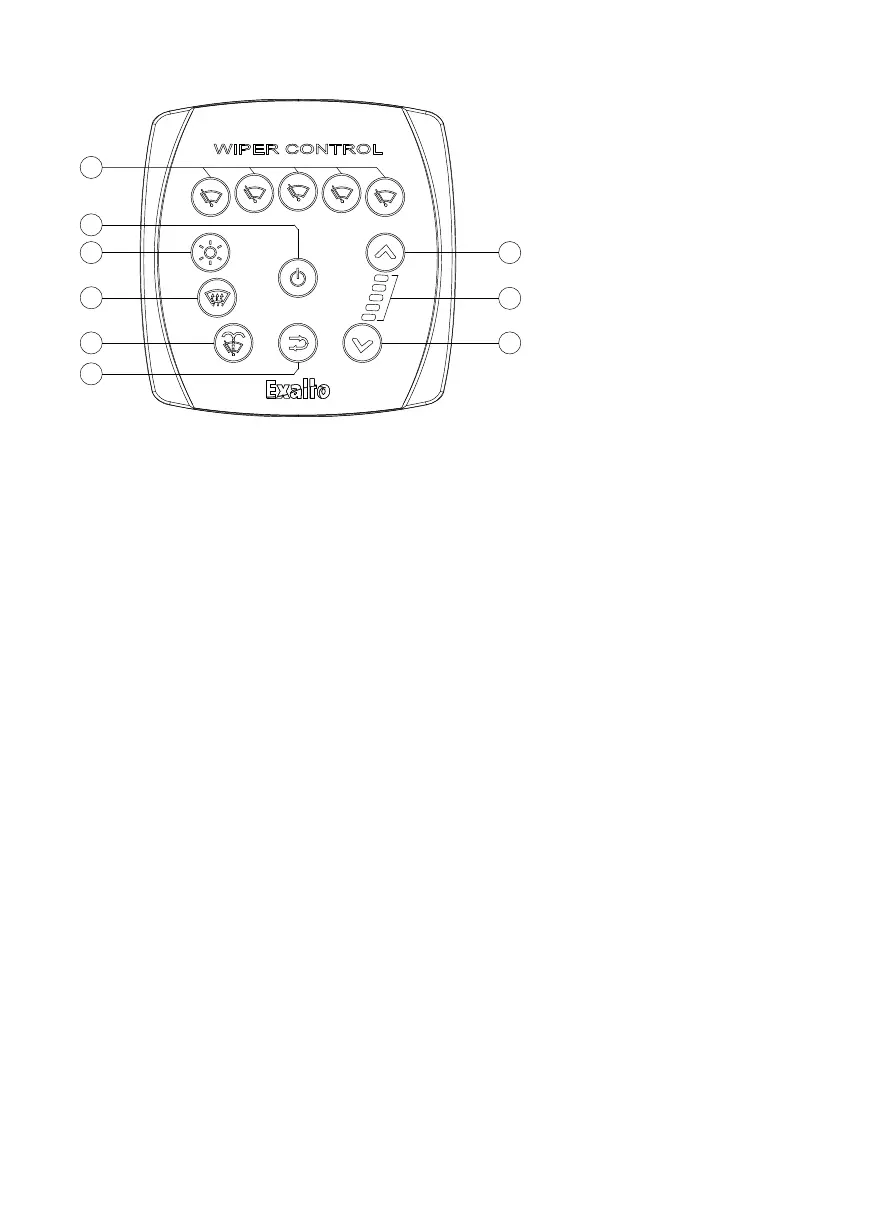

4.1 Functions and push buttons
1. Single wiper ON/OFF button
2. General ON/OFF button
3. Backlighting color and brightness button
4. Heaters button (additional relay box required)
5. Wash /Wipe button
6. Single wipe buttonall wipers
7. Decrease speed
8. Increase speed
9. Selected mode led bar
4.2 ON/OFF Switching
Switching on:
By selecting button 2 all wiper will be activated in slow speed. By selecting anyone of
the related button 1’s for individual motors, this will activate that selected motor only.
Switching o:
By selecting button 2 all wipers active will return to park position and stop. By press-
ing the selected button 1 the respective wiper motor will return to park position and
stop.
1
2
3
4
5
6
8
7
9
