Exalto wiper control CT3N User Manual

- Exalto Wiper Technologies type CT3N
8

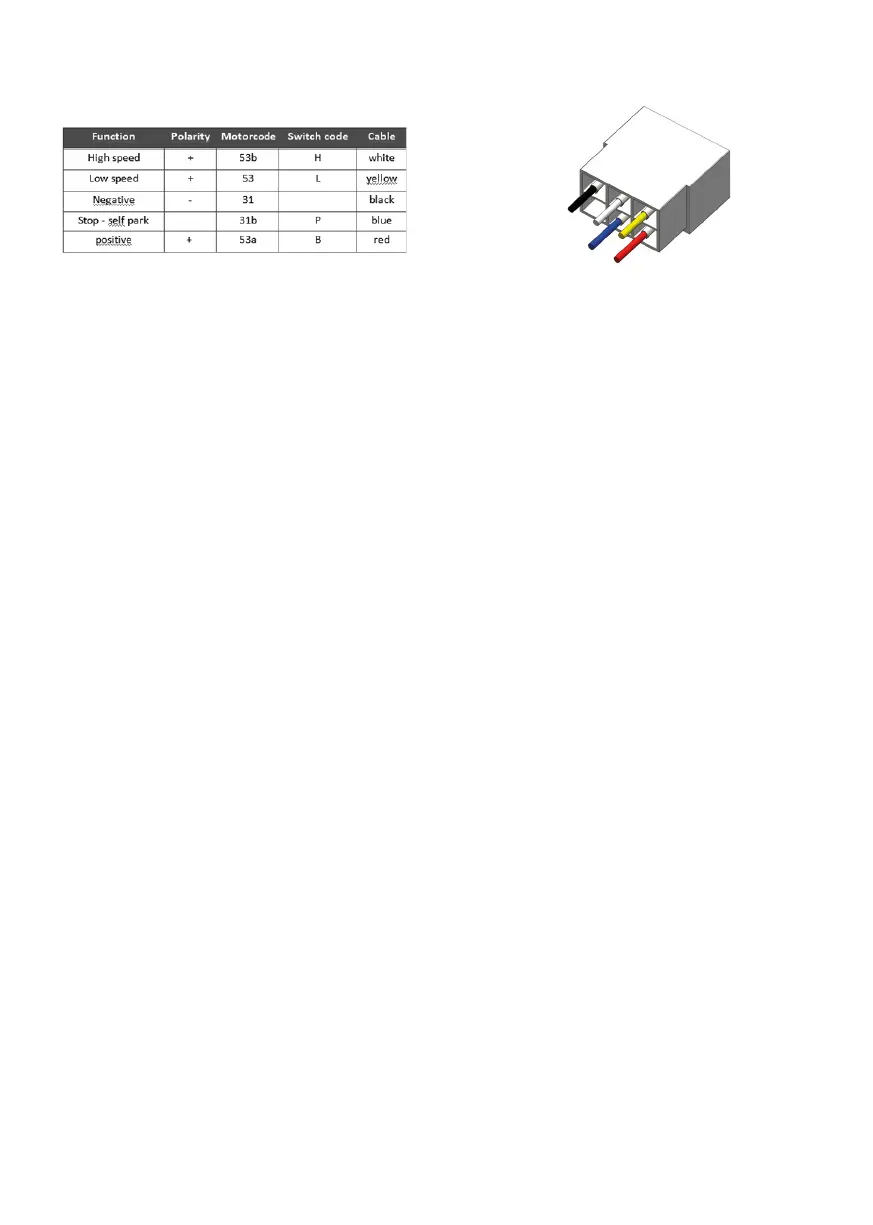

3.1 Colour coding for the wiper motor
3.2 Wiring diagram
Colour code and connection of wiring coming for the wiper motor to the Control box
• Positive (53a) of the motor loom connects to position P in control box.
• Stop (31b) and Negative (31) connects to position M of the control box
• Low speed (53) connects to position S of the control box
• High Speed (53B) connects to position F of the control box
• Pump or solenoid connects to position WP terminal of the control box
Always refer to the User Manual as supplied with the Exalto Wiper before connecting
the Exalto wiper to the wiper control.
The schemes below detail the connections from 2 to 5 wiper motors.
