Excell PWH3 - HI;LO;OK Limit Settings

EXCELL PRECISION CO., LTD
02005159 ZSME300000225
16
lb
lb
lb
lb
2-1-3 HI/LO/OK Settings

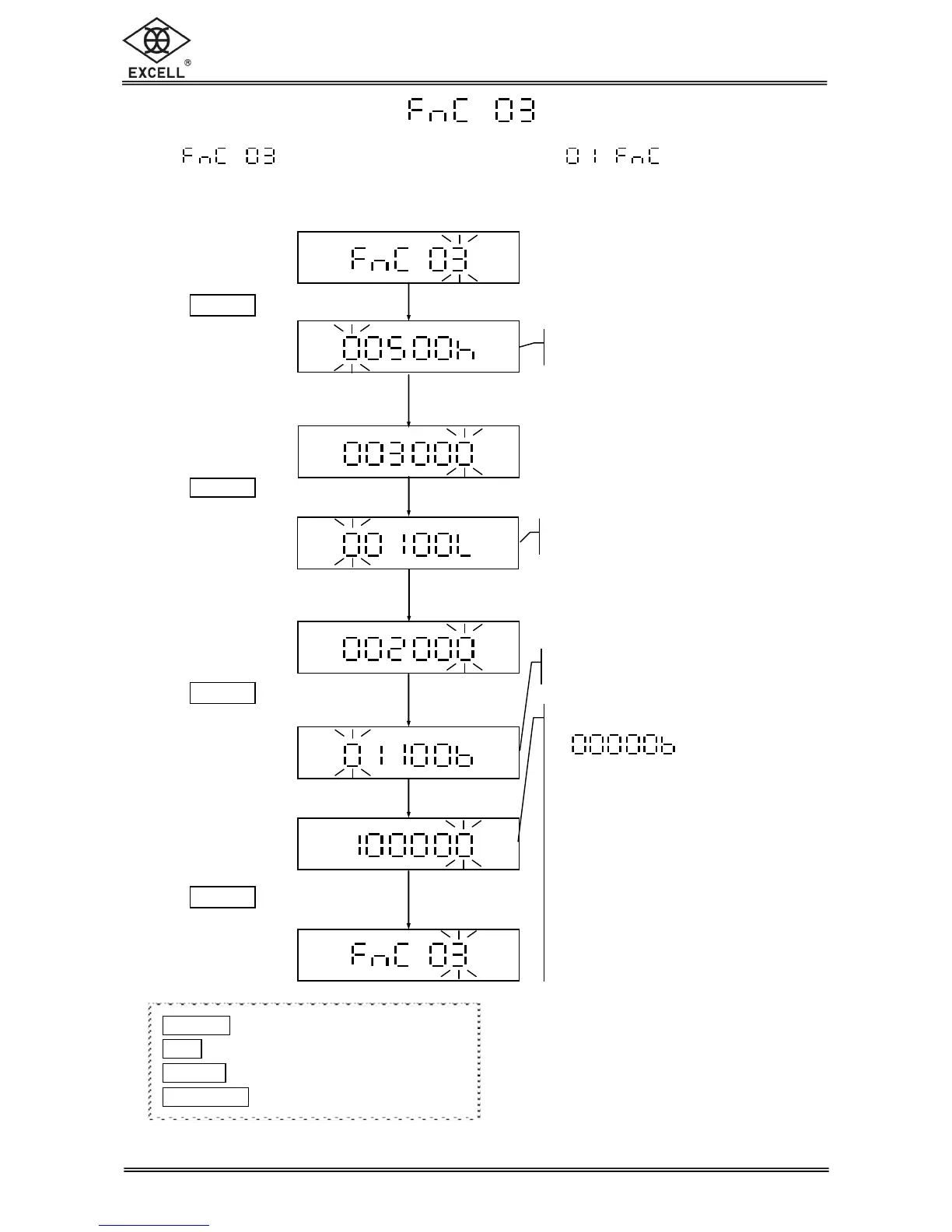

Select in the general function setting mode to set the HI/LO/OK
function.
 When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled.
LCD displays the last status
Press TARE | PT key
Key in the desired high
limit value
Press TARE | PT key
Key in the desired low limit
value
Press TARE | PT key
Key in the parameter
setting for alarm
Press TARE | PT key
LCD displays the last status
LCD displays the last status
.
.
.
.
Alarm setting
(a)(b)(c)
The definition of a, b, c positions:
(a)  1 = beep sound on
0 = beep sound off
(b)  1 = beep sound on when stable
0 = beep sound on when unstable
(c)  1 = beep sound on when the weight is
between high and low limits
0 = beep sound on when the weight is
not between high and low limits and
higher than 10d
ON|ZERO key  Upward key (0~9 digit entry)
1 UNIT key  Downward key (0~9 digit entry)
1 TARE | PT key  Move cursor rightward
1 NET | GROSS key  Move cursor leftward
