Excell PWH3 User Manual

EXCELL PRECISION CO., LTD
02005159 ZSME300000225
7

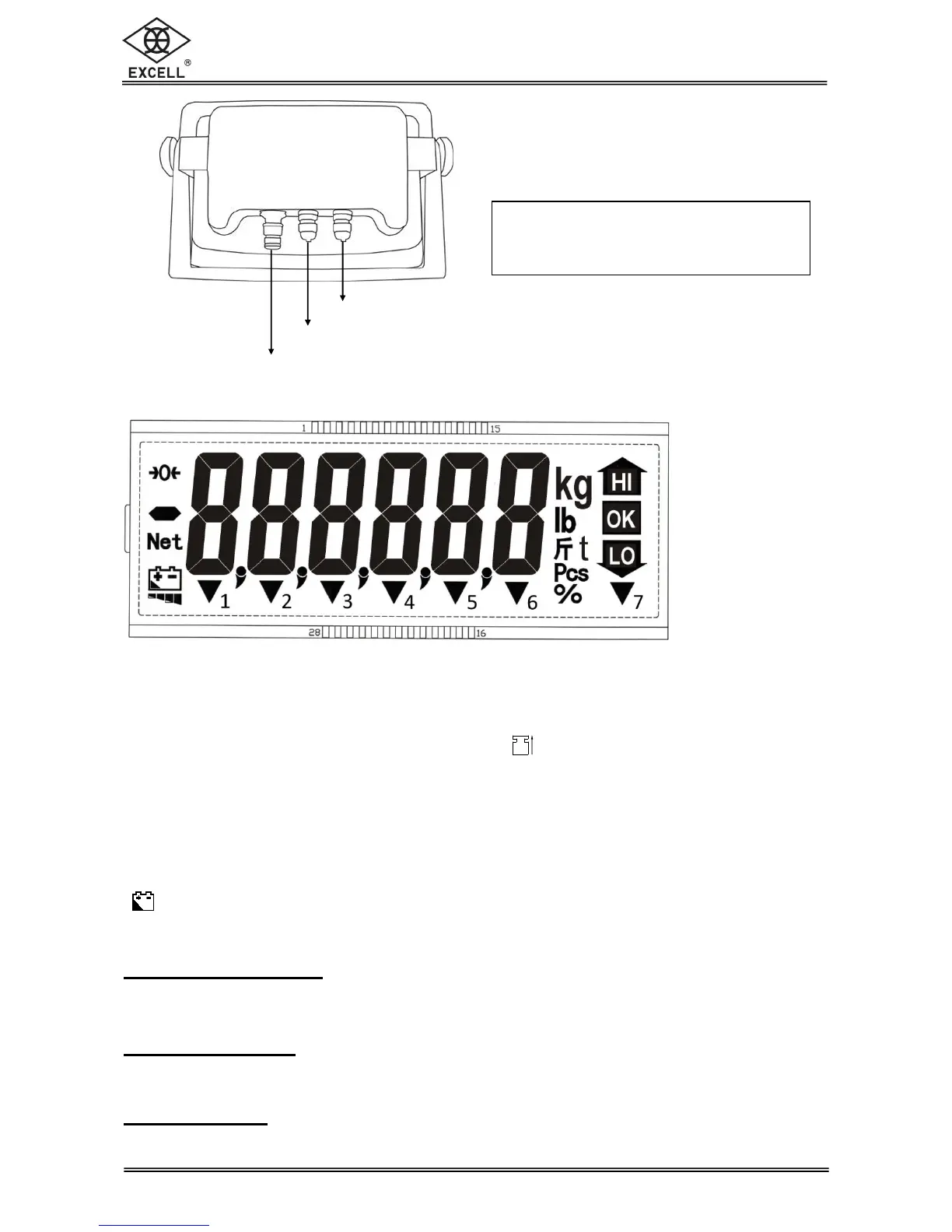

1-4 Display Description
HI
:
Upper limit
“” indications description
OK
:
Value between HI and LO
1
:
(STABLE) stable indication
LO
:
Lower limit
2
:
(GROSS) gross weight indication
kg
:
Unit “kilogram”
3
:
(
Pcs
) unit weight insufficient indication
lb
:
Unit “pound”
4
:
( PT ) pre-tare indication
t
:
hk tael
5
:
(Hold) weight hold indication
Pcs
:
Counting mode indication
6
:
“GN”、“dwt”、 “carat” 、”M+” unit indication
0
:
Zero point indication
7
:
“oz” or “viss” unit indication (set as needed),
or no unit indication
Net
:
Net weight indication
:
Low Power indication
1-5 Power Supply
Power Supply Selection
➀ 6V / 4.5Ah rechargeable battery
➁ Input 110VAC or 230VAC ±15% ; Output 10VDC/1A adaptor
Power Consumption
Approximately DC 14 mA (Indicator)
Approximately DC 24 mA (Indicator + Display backlight)
Charging Voltage
DC 10V/1A output adaptor
(RS-232 and load cell cables size
3mm~5.5mm diameter to ensure
correct sealing of the cable glands)
Power supply connector
Load cell cable entry
RS-232 cable entry
