ASSEMBLY INSTRUCTIONS
1. Front and Rear Stabilizers Installation

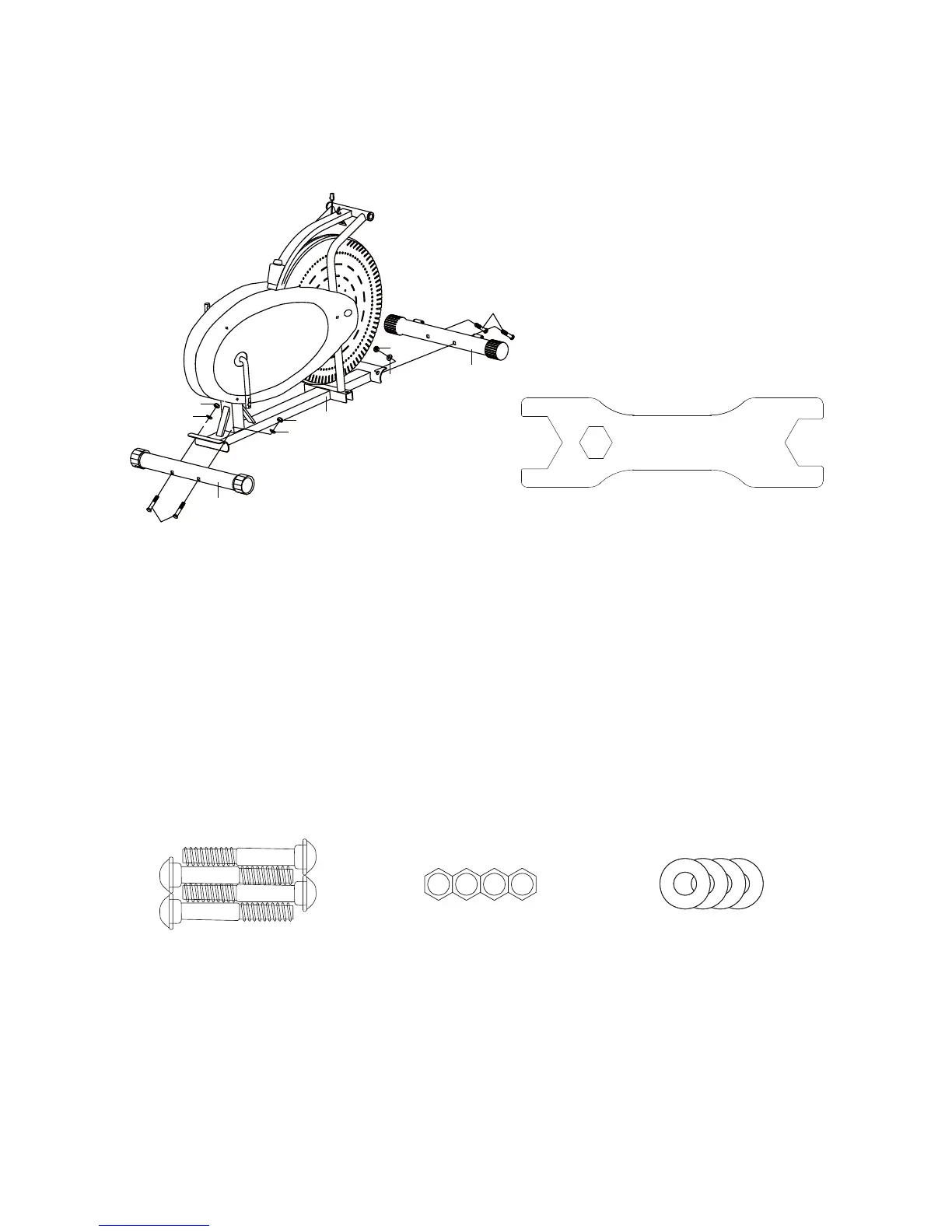

Position the Front Stabilizer (7) in front of Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (7) onto the front curve of the Main Frame (1) with two M10x60
Bolts (4), two Ø20xØ10.5 Curve Washers (6), and two M10 Cap Nuts (5). Tighten nuts with
the Multi Hex Tool provided.
Position the Rear Stabilizer (2) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (2) onto the rear curve of the Main Frame (1) with two M10x60
Bolts (4), two Ø20xØ10.5 Curve Washers (6), and two M10 Cap Nuts (5). Tighten nuts with
the Multi Hex Tool provided.
Hardware (STEP 1):
(4) Bolt M10x60
4 PCS
(5) Cap Nut M10
4 PCS
(6) Curve Washer
Ø20xØ10.5
4 PCS
Tool:
Multi Hex Tool 13#, 17#, 19#
