Exmark Lazer Z Series Setup Instructions

latchpinfromoutersurfaceofrollbarassemblyand
securewiththehairpintotheinside.
16.Torquealllowerrollbarhardwareattachedtothe
machineframeto30-35ft-lb(41-47N-m).
InstallingtheDriveWheels
1.Removethe1/2-20inchdrivewheelnuts(installed
onstudsofdrivemotors;Figure2)andretainfor
wheelmounting.Removeanddiscardshipping
bracketsmountedonwheelhubs.
2.Mountdrivewheelswiththevalvestemtothe
outsideoftheunit.Secureusingfour1/2-20inch
wheelnutsremovedinstep1.
3.Torqueto95ft-lb(128N-m).
CheckingTirePressure
1.Checkthetirepressureinthedrivetires.Proper
inationfordrivetiresis13psi(90kPa).
2.Adjustifnecessary.
InstallingtheSeat
1.Removeseatassemblyfromthecrate.
2.Locatethefour5/16-18inchwhizlocknutspackaged
withtherollbarhardware.
3.27HPKohler&28HPKawasakiUnitsOnly:
SeeFigure4.Aligntheseattrackstudsonthe
bottomoftheseatwiththeholesintheseatframe.
Placeseatontopoftheframeandsecurewiththe
four5/16-18inchwhizlocknutsidentiedinstep2.

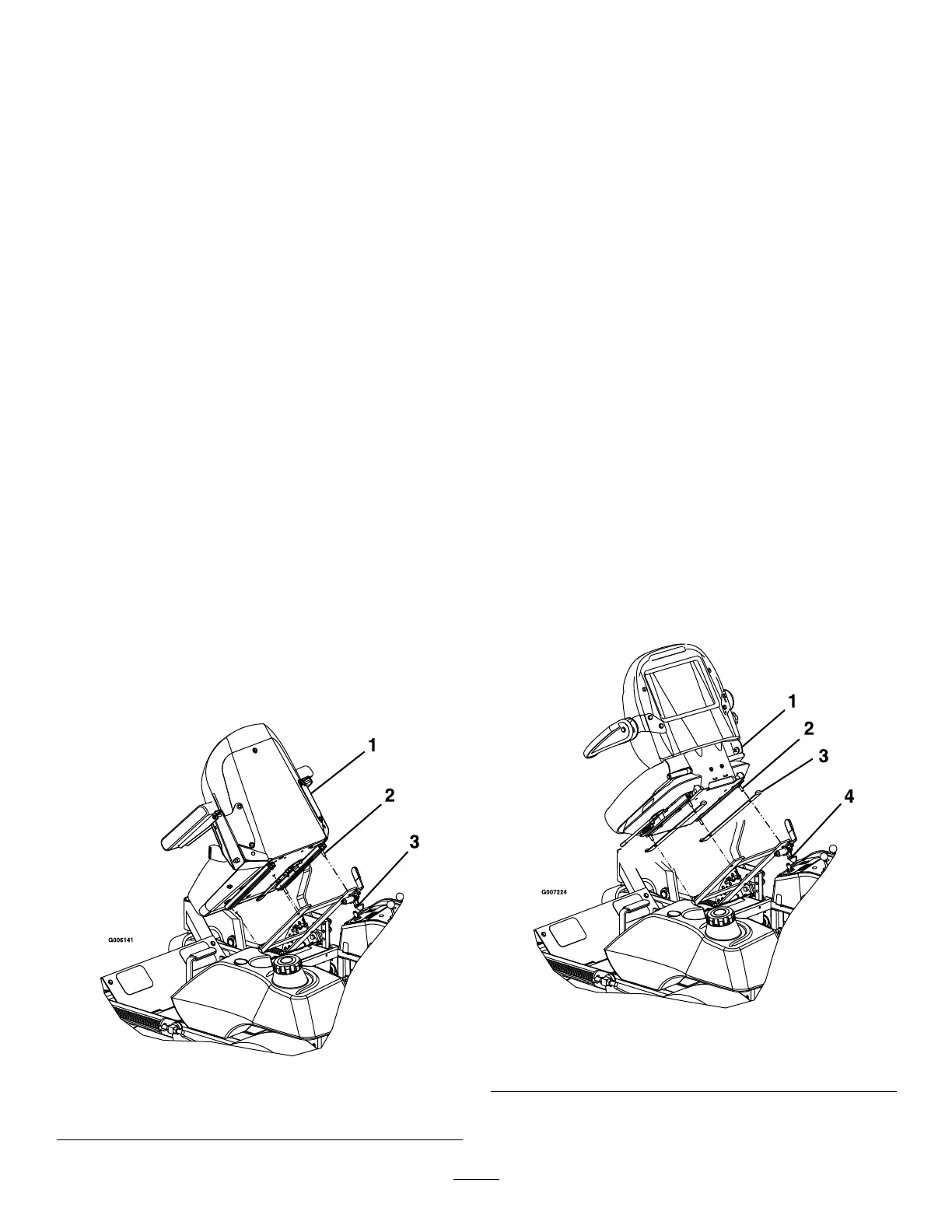

Figure4
1.Seatassembly3.5/16-18inchwhizlocknuts
2.Seattrackstuds
4.31HPBriggs&StrattonUnitsOnly:
A.Removethe5/16-18inchwhizlocknutsusedto
holdseatstopsonseatsforshipping.
B.Aligntheseattrackstudsonthebottomofthe
seatwiththeholesintheseatstops(slotstothe
front)andholesintheseatframeandsecurewith
thefour5/16-18inchwhizlocknuts.
C.Routetheswitchwirefromtheseatoverthetop
ofthefrontseatframecrossmember.
D.Usingoneofthetwowiretiesincludedsecure
thewirenearwheretheseatholduprodis
connectedtotheseatframe.
E.Usingthesecondwiretie,securethewireagainto
approximatelythemiddleoftheseatholduprod.
F.Connecttheseatwiretothemainwiringharness
lead.Slowlylowertheseatcheckingthatthewire
cannotcontactanymovingpartsorpinchpoints.
Readjustwiretiesifnecessary.
5.28HPKohlerEFIUnitsOnly:
A.Removethe5/16-18inchwhizlocknutsusedto
holdseatstopsonseatsforshipping.
B.Aligntheseattrackstudsonthebottomofthe
seatwiththeholesintheseatstops(slotsto
therear)andholesintheseatframeandsecure
withthefour5/16-18inchwhizlocknuts(see
Figure5).
Figure5
1.Seatassembly3.Seatstop
2.Seattrackstuds4.5/16-18inchwhizlocknuts
C.Routetheswitchwirefromtheseatoverthetop
ofthefrontseatframecrossmember.
3

Exmark Lazer Z Series Specifications

General

Engine Brand	Kawasaki, Kohler
Engine Type	Air-cooled, 4-stroke, gasoline
Cutting Width	52 in, 60 in, 72 in
Deck Construction	Fabricated
Deck Material	Steel
Drive Type	Hydrostatic
Transmission	Hydrostatic
Forward Speed	Up to 12.5 mph
Reverse Speed	Up to 5 mph
Tires (Rear)	26 x 12-12 (depending on model)
Turning Radius	Zero-turn
Cutting Height	1.5-5 inches (adjustable)
Speed	Up to 12.5 mph
Warranty	5-year / 1, 500-hour (Engine warranty varies by manufacturer)
