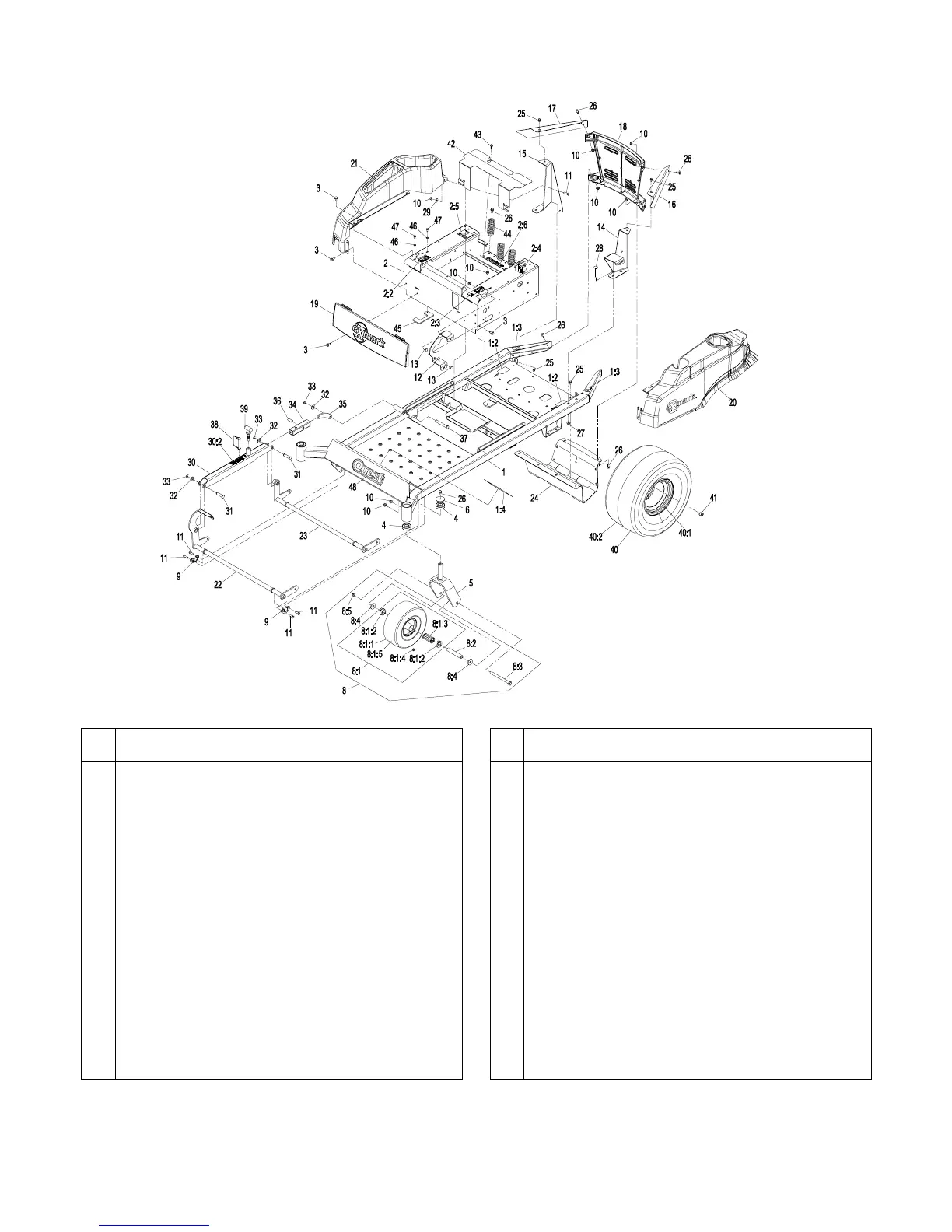

FRAME GROUP (Continued)
-9-
Item Part No. Description Qty.
22 109-8870-01 Wld, Shaft Front.....................................1
23 109-8871-01 Wld, Shaft Rear......................................1
24 114-1658-03 Guard, Muffler........................................1
25 9266714 Screw, HWH 1/4-20 x .50.......................6
26 3234-5 Screw, HH FLG 5/16-18 x 3/4 ................11
27 104-8301 Nut, Nyloc 3/8-16 Flg .............................4
28 3231-9 Bolt, Carriage 3/8-16 x 2 3/4 ..................4
29 3256-3 Washer, 5/16 Std ...................................2
30 109-8758 Asm, Height Adjust W/ Decal .................1
30:2 109-8759 Decal, Cut Height...................................1
31 109-5819 Pin, Clevis..............................................2
32 3256-26 Washer, 1/2 SAE ...................................3
33 32120-47 Ring, Retaining ......................................3
34 109-8755 Stop, Height Adjust ................................1
35 109-5814 Arm, Float Link.......................................1
36 109-5818 Pin, Pivot................................................1
37 109-6172 Pin, Clevis..............................................1
Item Part No. Description Qty.
38 93-4696 Pin, Hitch............................................... 1
39 109-6177 Pin, Spring............................................. 1
40 109-5486 Asm, Wheel And Tire (48" Only) ............2
40 109-5268 Asm, Wheel And Tire (52" Only) ............2
40:1 109-5487 Wheel (48" Only)....................................1
40:1 109-5270 Wheel (52" Only)....................................1
40:2 109-5488 Tire, 20 X 8-8 (48" Only)........................1
40:2 109-5269 Tire, 20 X 10-8 (52" Only) ......................1
41 242-50 Nut, Lug 1/2-20...................................... 8
42 109-6190-03 Cover, Hydro Fan ..................................1
43 99-6810 Screw, HH 1/4-20 x 5/8..........................2
44 92-7054 Spring, Compression ............................. 3
45 109-6214 Stop, Motion Control.............................. 2
46 1-303435 Washer, Spring Disc 1/4 ........................ 4
47 321-2 Screw, HH 1/4-20 x 1/2..........................4
48 109-6280 Decal, Quest Logo................................. 1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
 Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on Spring Pin hub threads.
