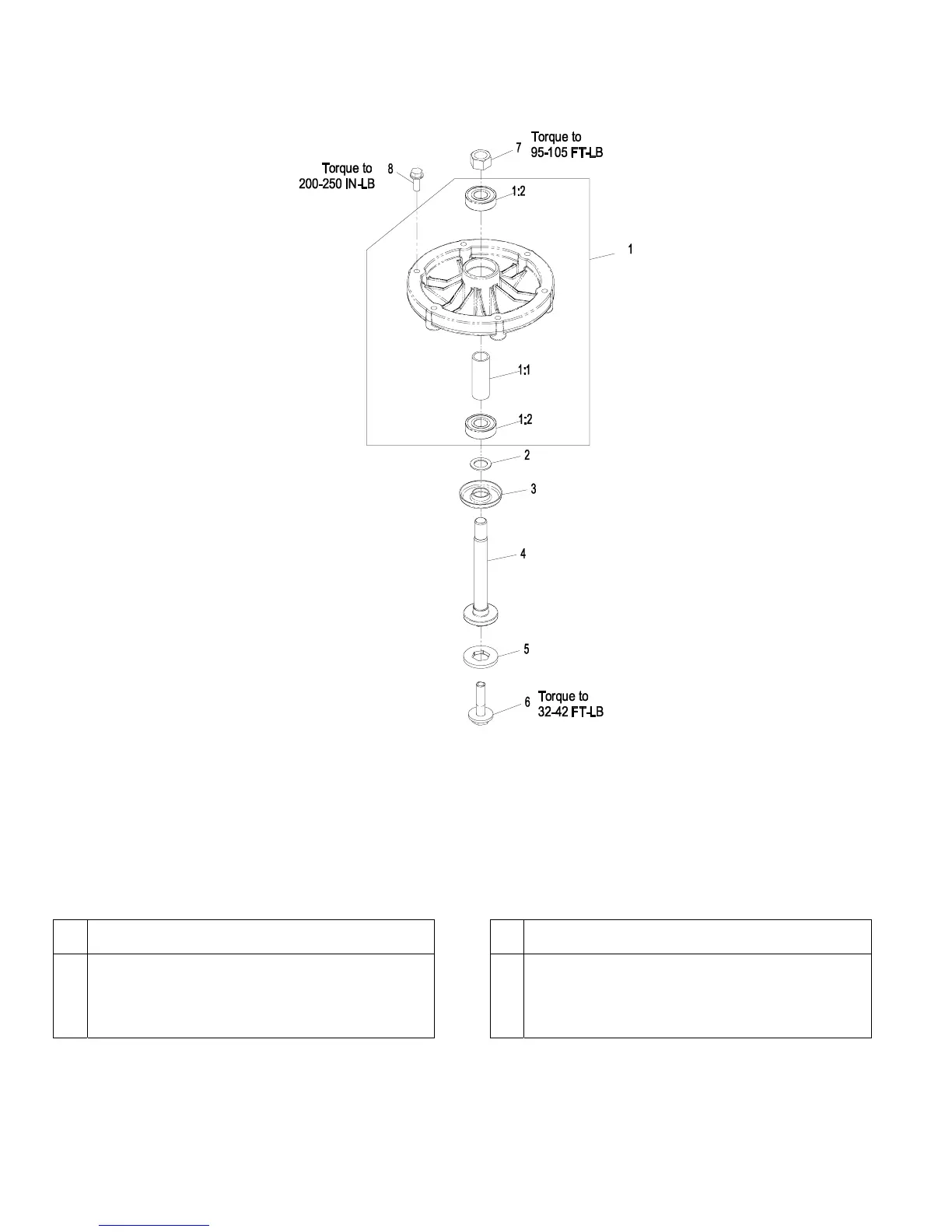

CUTTER HOUSING ASSEMBLY
-7-
Item Part No. Description Qty.
1 109-9380 Asm, Cutter Housing..............................1
1:1 62-3661 Spacer, Bearing .....................................1
1:2 109-9379 Bearing, Ball ..........................................2
2 80-4380 Spacer...................................................1
3 80-4360 Shield, Bearing ......................................1
Item Part No. Description Qty.
4 109-7431 Spindle, Hex Pilot ..................................1
5 109-7429 Washer, Blade Drive..............................1
6 116-0005 Bolt, Sems Blade...................................1
7 3219-6 Nut, Hex 5/8-18...................................... 1
8 32144-41 Screw, HWH 3/8-16 x 7/8 Taptite........... 6
 Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT
use a copper or nickel based anti-seize.
