Exmark QUEST 4500-339 - Motion Control Group

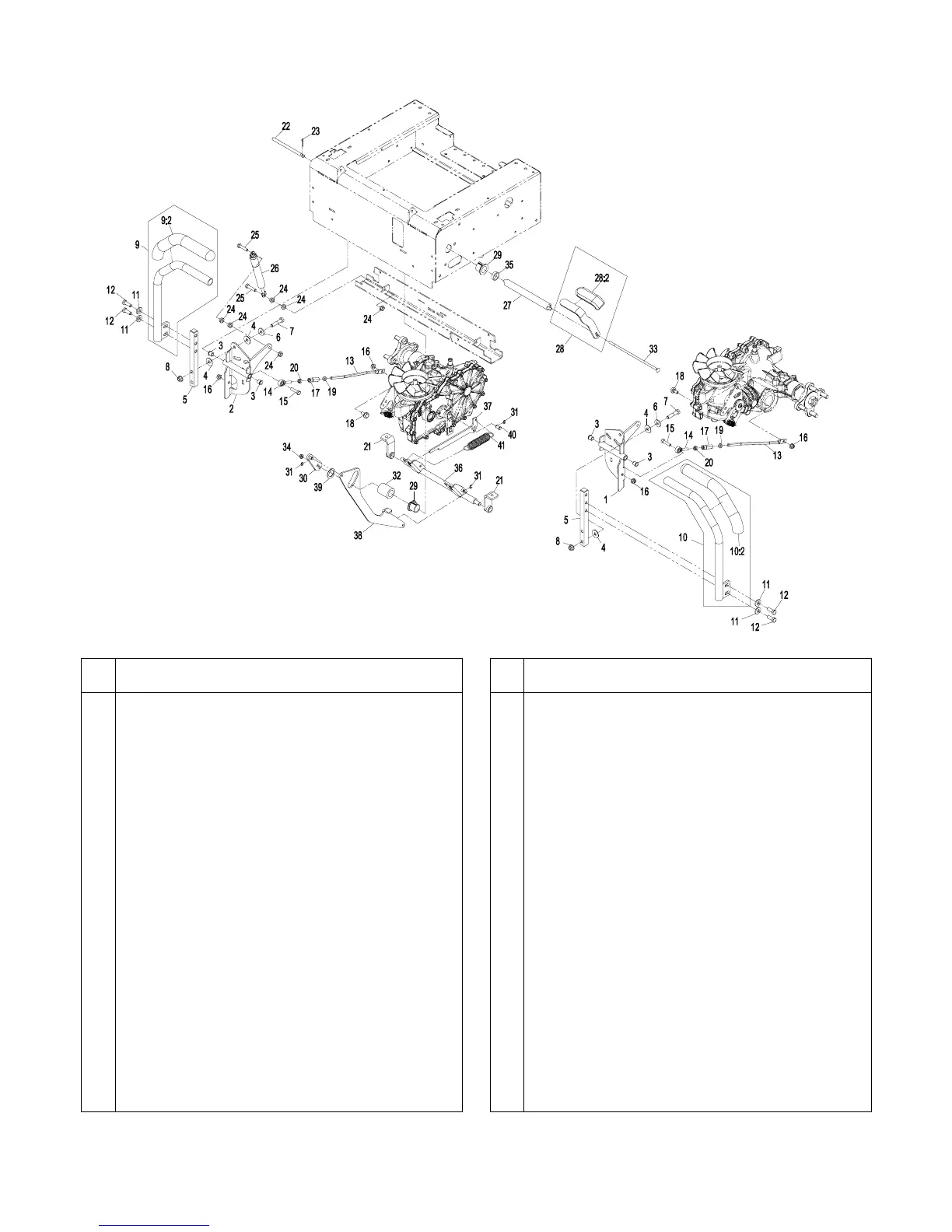

MOTION CONTROL GROUP
-10-
Item Part No. Description Qty.
1 109-6915 Wld, Motion Control Pivot (LH)...............1
2 109-6914 Wld, Motion Control Pivot (RH) ..............1
3 103-9928 Bearing ..................................................4
4 52-2900 Washer ..................................................8
5 109-3689 Post, Lever Mount..................................2
6 5-0838 Washer ..................................................4
7 323-9 Screw, HH 3/8-16 x 1 3/4 .......................4
8 104-8301 Nut, Nyloc 3/8-16 Flg .............................4
9 109-7098 Asm, Lever W/Grip (RH) ........................1
9:2 109-5192 Grip, Control Lever.................................1
10 109-7099 Asm, Lever W/Grip (LH).........................1
10:2 109-5192 Grip, Control Lever.................................1
11 98-5975 Washer, Spring Disc 3/8.........................4
12 323-6 Screw, HH 3/8-16 x 1.............................4
13 109-3414 Rod, Steering.........................................2
14 2411-53 Balljoint LH.............................................2
15 322-6 Screw, HH 5/16-18 x 1 1/4 .....................2
16 104-8300 Nut, Nyloc 5/16-18 Flg ...........................4
17 109-3728 Nut, Rod Adjustment..............................2
18 37-8771 Screw, Shoulder 5/16-18 x 5/8 ...............2
19 3220-2 Nut, Jam 5/16-24 ...................................2
20 3220-20 Nut, Jam 5/16-24 ...................................2
Item Part No. Description Qty.
21 109-6220 Wld, Brake Pivot....................................2
22 109-3705 Pin, Control Pivot................................... 2
23 3272-10 Pin, Cotter 1/8 x 3/4...............................2
24 32128-20 Nut, Whizlock 5/16-18............................ 12
25 1-403180 Screw, HH 5/16-18 x 1 1/4 Sp................4
26 109-5957 Damper, Motion Control......................... 2
27 109-5825 Tube, Brake Pivot .................................. 1
28 109-5918 Asm, Lever W/Grip ................................1
28:2 1-633268 Grip, Brake Lever...................................1
29 107-7581 Bushing ................................................. 2
30 109-5824 Wld, Bellcrank........................................1
31 701197 E-Ring ................................................... 4
32 109-5834 Spacer................................................... 1
33 109-5868 Bolt, Carriage 1/4-20 x 9........................ 1
34 104-7201 Nut, Nyloc 1/4-20 Flg.............................1
35 109-5914 Spacer................................................... 1
36 109-8765 Asm, Brake Shaft................................... 1
37 109-6907 Link, Brake Actuation.............................2
38 109-5833 Arm, Brake.............................................1
39 99-4958 Spacer................................................... 1
40 109-6887 Pin, Clevis 5/16 x 5/8.............................2
41 1-603693 Spring....................................................2
