Exmark QUEST 4500-339 - Electrical Group

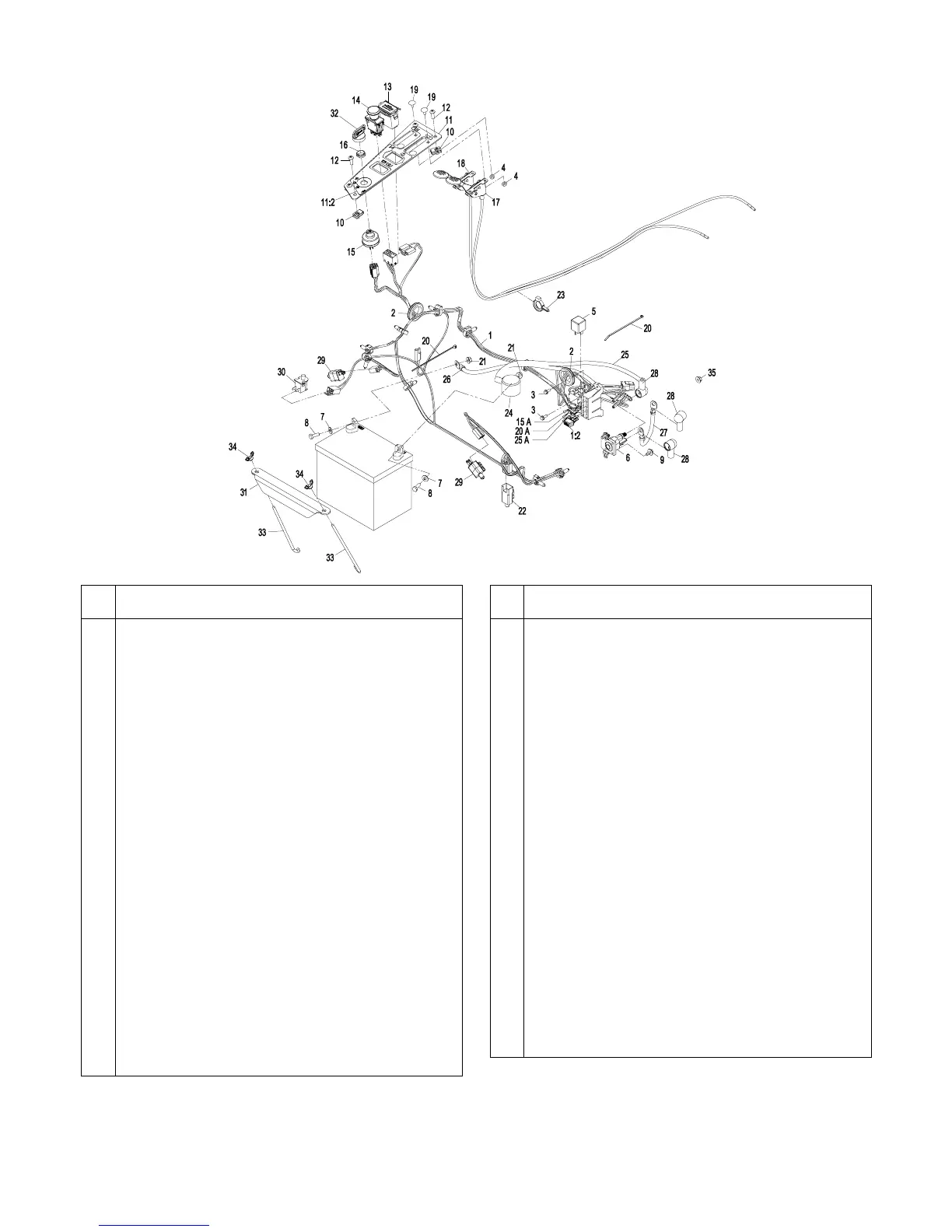

ELECTRICAL GROUP
-18-
Item Part No. Description Qty.
1xV 109-8786 Harness .................................................1
xO
109-8963 Harness .................................................1
1:2 109-9186 Diode, TVS ............................................1
2 240-3 Grommet, Rubber ..................................2
3V 32144-1 Screw, HWH #10-24 x 1/2 Taptite..........3
O
32144-1 Screw, HWH #10-24 x 1/2 Taptite..........4
4 3296-2 Nut, Nyloc #10-24 ..................................4
5V 1-643275 Relay, 12VDC 40 Amp...........................1
O
1-643275 Relay, 12VDC 40 Amp...........................2
6V 1-513075 Switch, Solenoid ....................................1
7 3256-22 Washer, 1/4 SAE ...................................2
8 321-4 Screw, HH 1/4-20 x 3/4..........................2
9V 46-8560 Screw, HHF 1/4-20 X 1/2 .......................2
10 107069 Nut, Retainer-Panel 1/4-20.....................4
11 109-6398 Asm, Control Panel W/Decal..................1
11:2 109-6029 Decal, Console.......................................1
12 3258-166 Screw, PPH 1/4-20 x 3/4........................4
13 1-513374 Meter, Engine Hours ..............................1
14 103-5221 Switch, PTO...........................................1
15 109-4736 Switch, Ignition W/Nut............................1
16 103-0498 Nut, Ignition............................................1
17 109-3987 Control, Throttle .....................................1
18V 109-8747 Control, Choke.......................................1
O
109-9147 Control, Choke.......................................1
Item Part No. Description Qty.
19 1-807513 Bolt, Carriage #10-24 x 1/2....................4
20 614249 Tie, Cable..............................................2
21 32128-33 Nut, Whizlock 1/4-20..............................2
22 99-7408 Switch.................................................... 1
23 105-1853 Clamp....................................................1
24 109-2407 Insulator, Battery +................................. 1
25V 109-7653 Asm, Cable, Battery +............................1
O
109-7621 Asm, Cable, Battery +............................1
26 103-0705 Cable, Ground - .....................................1
27V 109-9415 Cable, Starter + ..................................... 1
28V 1-543393 Insulator, Solenoid +.............................. 3
O
1-543393 Insulator, Solenoid +.............................. 1
29 110-6765 Switch.................................................... 2
30 82-2190 Switch.................................................... 1
31 103-1311-03 Holddown, Battery .................................1
32 103-2106 Key, Exmark Logo ................................. 1
33 1-633651 Bolt, Battery Holddown ..........................2
34 1-543792 Wingnut, Nyloc 1/4-20............................2
1-603511 Key, Ignition........................................... 1
35V 32128-33 Nut, Whizlock 1/4-20.............................. 1
O
57-6390 Nut, Jam M8-1.25..................................1
x Use dielectric grease on all wiring harness connectors
V For Briggs & Stratton engines
O For Kohler Command engines.
Exmark black touch up spray paint – gloss black.
