Exmark QUEST 4500-339 - Engine Group - Kohler Command

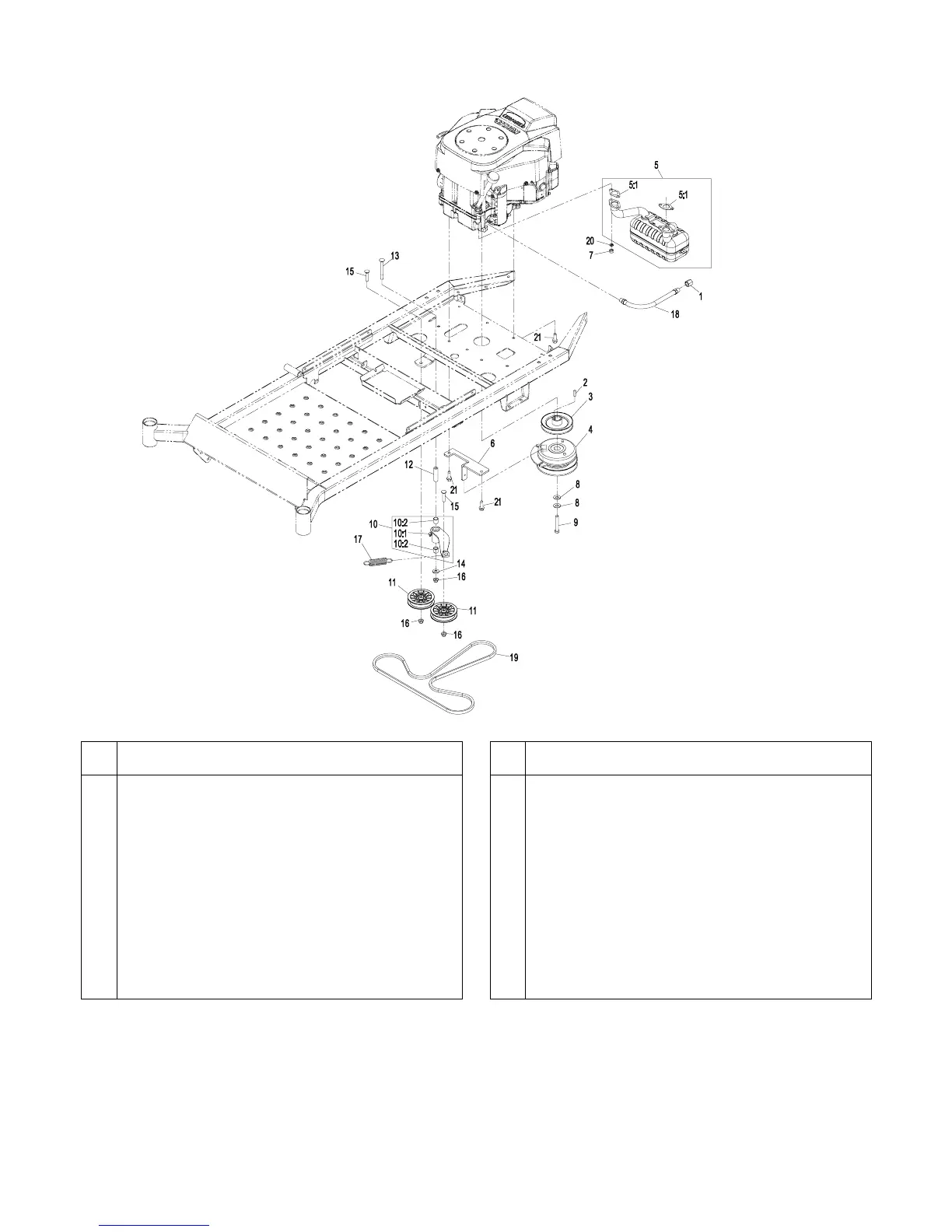

ENGINE GROUP – KOHLER COMMAND
-14-
Item Part No. Description Qty.
1W 288-10 Cap, Pipe...............................................1
2 5-7280 Key, Machine 1/4 SQ x 1........................1
3 109-3386 Sheave ..................................................1
4 110-6766 Clutch-Electric........................................1
5 109-8951 Asm, Muffler W/Gaskets.........................1
5:1 110-6697 Gasket ...................................................2
6 109-8855-03 Anchor, Clutch .......................................1
7 33014-00 Nut, Hex M8-1.25...................................4
8 1-603610 Washer, Spring Disc 7/16.......................2
9X 3212-11 Screw, HH 7/16-20 x 2 3/4 .....................1
10 109-9162 Asm, Idler Arm W/Bearings....................1
10:1 302-40 Zerk, 90° 1/4-28 .....................................1
Item Part No. Description Qty.
10:2 1-513034 Sleeve, Bearing ..................................... 2
11 109-3397 Pulley, Flat Idler 3.50 Dia....................... 2
12 1-603384 Bushing, Pivot Idler................................1
13 3231-11 Bolt, Carriage 3/8-16 x 3 1/2.................. 1
14 3256-4 Washer, 3/8 Std..................................... 1
15 3231-5 Bolt, Carriage 3/8-16 x 1 3/4..................2
16 104-8301 Nut, Nyloc 3/8-16 Flg............................. 3
17 1-603402 Spring.................................................... 1
18W 82-4201 Asm, Hydraulic Hose ............................. 1
19 109-3388 Belt........................................................ 1
20 3253-4 Washer, Lock 5/16................................. 4
21X 32144-109 Screw, HWH 3/8-16 x 1 1/4 Taptite........ 4
Exmark black touch up spray paint – gloss black.
W Use a Teflon Pipe Sealant or equivalent on threads.
X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.
