Exmark Quest 4500-451 - Page 12

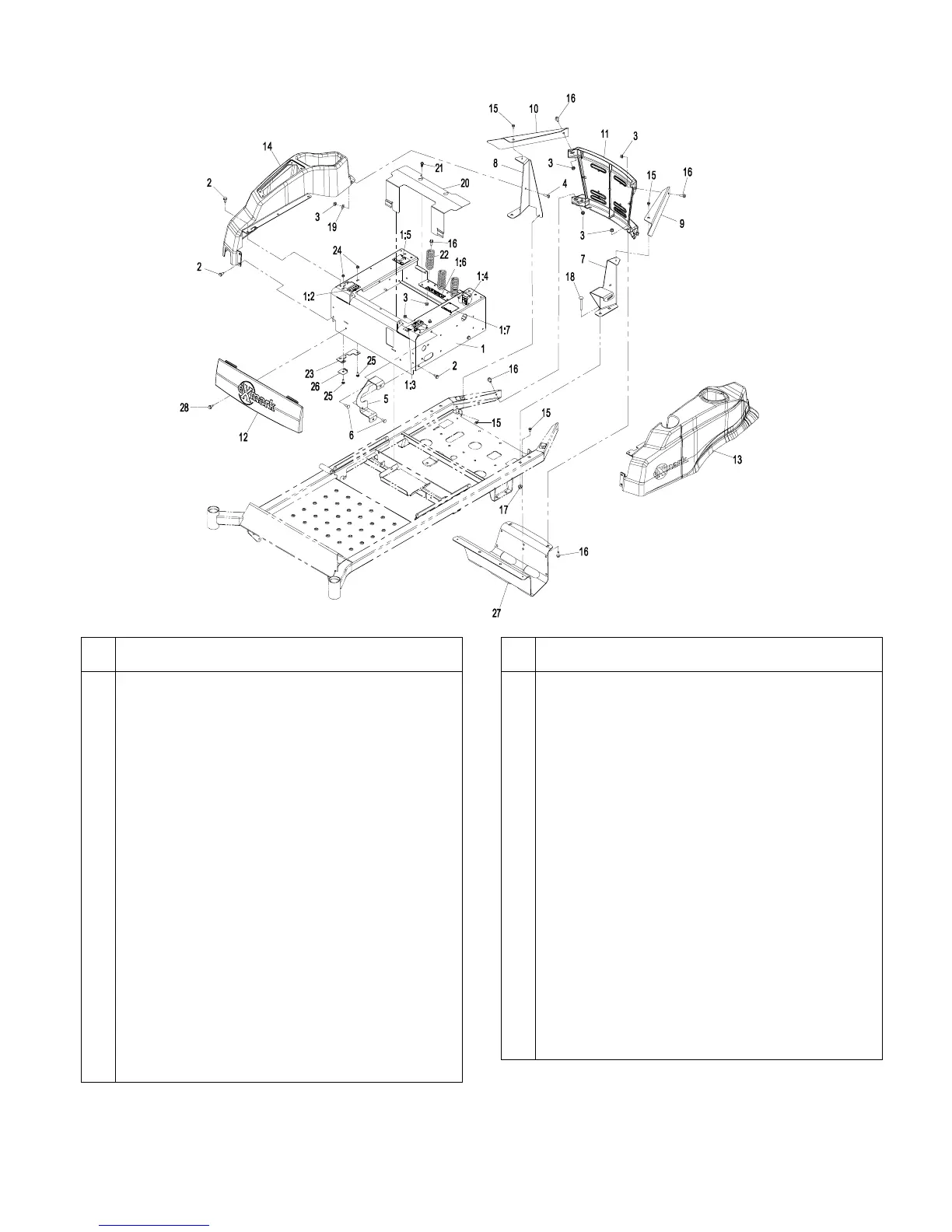

FRAME GROUP (cont.)
-11-
Item Part No. Description Qty.
1Q 116-0945 Asm, Seat Box W/ Decals ......................1
1:2 109-9182 Decal, Control, Motion............................1
1:3 109-9173 Decal, Control/Brake..............................1
1:4 109-9120 Decal, Fuse Block..................................1
1:5 109-6014 Decal, Belt Routing ................................1
1:6 109-6210 Decal, Danger........................................1
1:7 116-0531 Decal, Engine RPM................................1
2 32144-70 Screw, HWH 5/16-18 x 3/4 TF................14
3 104-8300 Nut, Nyloc 5/16-18 Flg ...........................12
4 322-5 Screw, HH 5/16-18 x 1...........................2
5 109-6045-03 Bracket, Tank Mount..............................1
6 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck 2
7 109-6867-01 Bracket, Rear Tank (LH) (Red)...............1
109-6867-03 Bracket, Rear Tank (LH) (Black) ............1
8 109-3406-01 Bracket, RH Rear Console (Red) ...........1
109-3406-03 Bracket, RH Rear Console (Black).........1
9 109-3381-01 Guard, Engine (LH) (Red) ......................1
109-3381-03 Guard, Engine (LH) (Black)....................1
10 109-3391-01 Guard, Engine (RH) (Red)......................1
109-3391-03 Guard, Engine (RH) (Black) ...................1
11 109-5363-01 Guard, Rear (Red) .................................1
109-5363-03 Guard, Rear (Black) ...............................1
Item Part No. Description Qty.
12 109-3709 Panel, Front Exmark.............................. 1
116-0550 Panel, Front Realtree............................. 1
13 116-0828 Fender, Exmark (LH)............................. 1
116-0548 Fender, Realtree (LH)............................ 1
14 116-0829 Fender, Exmark (RH)............................. 1
116-0549 Fender, Realtree (RH) ........................... 1
15 9266714 Screw, HWH 1/4-20 x .50 ...................... 6
16 3234-5 Screw, HH FLG 5/16-18 x 3/4................ 9
17 104-8301 Nut, Nyloc 3/8-16 Flg............................. 4
18 3231-9 Bolt, Carriage 3/8-16 x 2 3/4.................. 4
19 3256-3 Washer, 5/16 Std................................... 2
20 109-6190-03 Cover, Hydro Fan .................................. 1
21 99-6810 Screw, HH 1/4-20 x 5/8.......................... 2
22 92-7054 Spring-Compression.............................. 3
23 116-0834 Plate, Neutral Adjuster........................... 2
24 104-7201 Nut, Nyloc 1/4-20 Flg............................. 4
25 1-807512 Bolt, Carriage 1/4-20 x 3/4, short neck 4
26 116-0835 Plate, Tracking....................................... 2
27 114-1658-03 Guard, Muffler........................................ 1
28 9266934 Screw, HWH 5/16 x 1/2 TF (48” & 52”) .. 2
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Q Includes items 23-26; does not include item 1:7.
