Exmark Quest 4500-451 - ENGINE GROUP

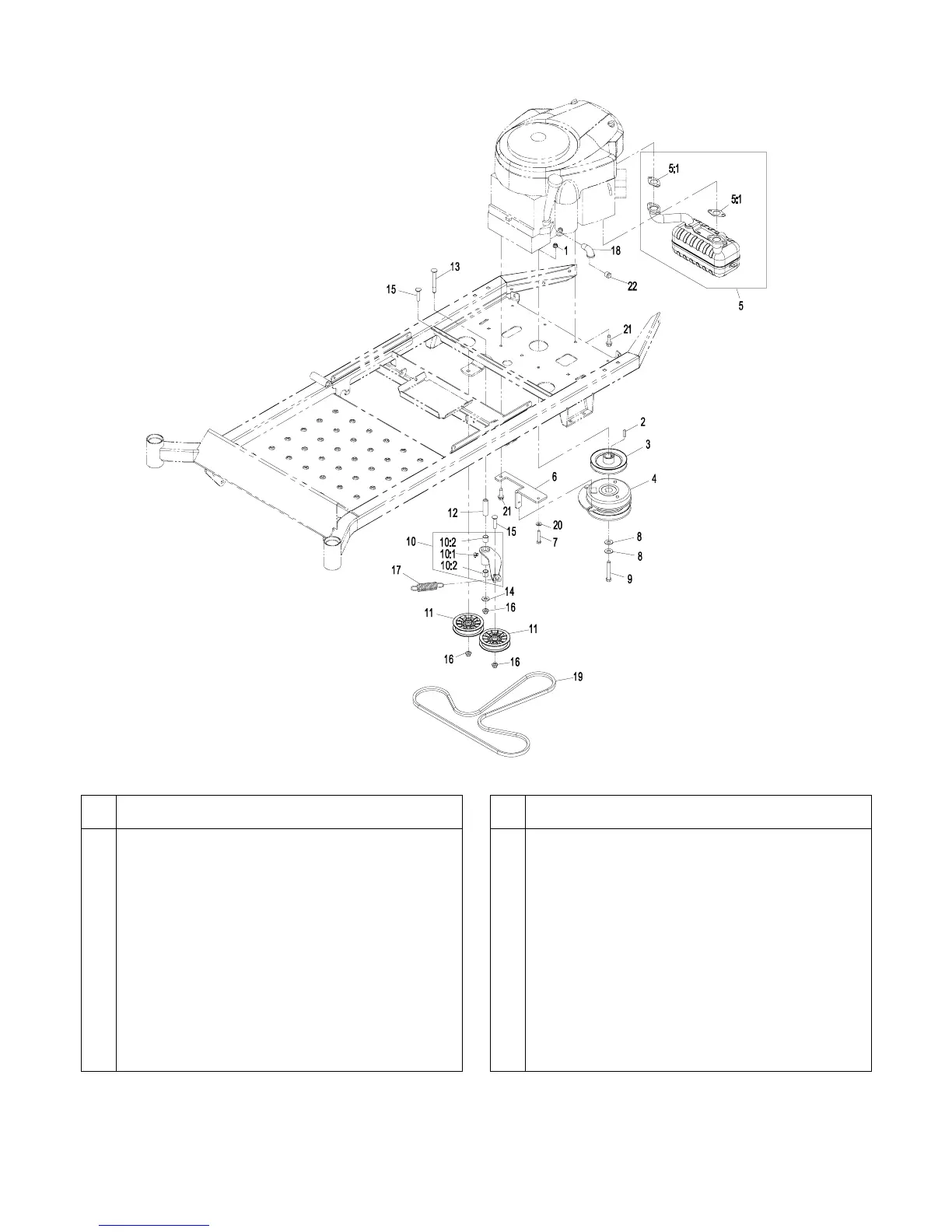

ENGINE GROUP
-17-
Item Part No. Description Qty.
1 104-8300 Nut, Nyloc 5/16-18 Flg ...........................1
2 5-7280 Key, Machine 1/4 SQ x 1........................1
3 109-3386 Sheave ..................................................1
4 104-3334 Clutch, Electric (42”)...............................1
110-6766 Clutch, Electric (48” & 52”) .....................1
5 109-8851 Asm, Muffler W/Gaskets.........................1
5:1 104-3226 Gasket ...................................................2
6 109-8855-03 Anchor, Clutch .......................................1
7 322-10 Screw, HH 5/16-18 x 2...........................1
8 1-603610 Washer, Spring Disc 7/16.......................2
9X 3212-11 Screw, HH 7/16-20 x 2 3/4 .....................1
10 109-9162 Asm, Idler Arm W/Bearings....................1
10:1 302-40 Zerk, 90° 1/4-28 .....................................1
Item Part No. Description Qty.
10:2 1-513034 Sleeve, Bearing ..................................... 2
11 109-3397 Pulley, Flat Idler 3.50 Dia....................... 2
12 1-603384 Bushing, Pivot Idler................................1
13 3231-11 Bolt, Carriage 3/8-16 x 3 1/2.................. 1
14 3256-4 Washer, 3/8 Std..................................... 1
15 3231-5 Bolt, Carriage 3/8-16 x 1 3/4.................. 2
16 104-8301 Nut, Nyloc 3/8-16 Flg............................. 3
17 1-603402 Spring.................................................... 1
18W 1-403124 Elbow, 90° .............................................1
19 115-9613 Belt........................................................1
20 1-303334 Washer, Spring Disc 5/16 ......................1
21X 32144-109 Screw, HWH 3/8-16 x 1 1/4 Taptite........ 3
22W 281-2 Plug, Pipe.............................................. 1
Exmark black touch up spray paint – gloss black.
W Use a Teflon Pipe Sealant or equivalent on threads.
X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.
