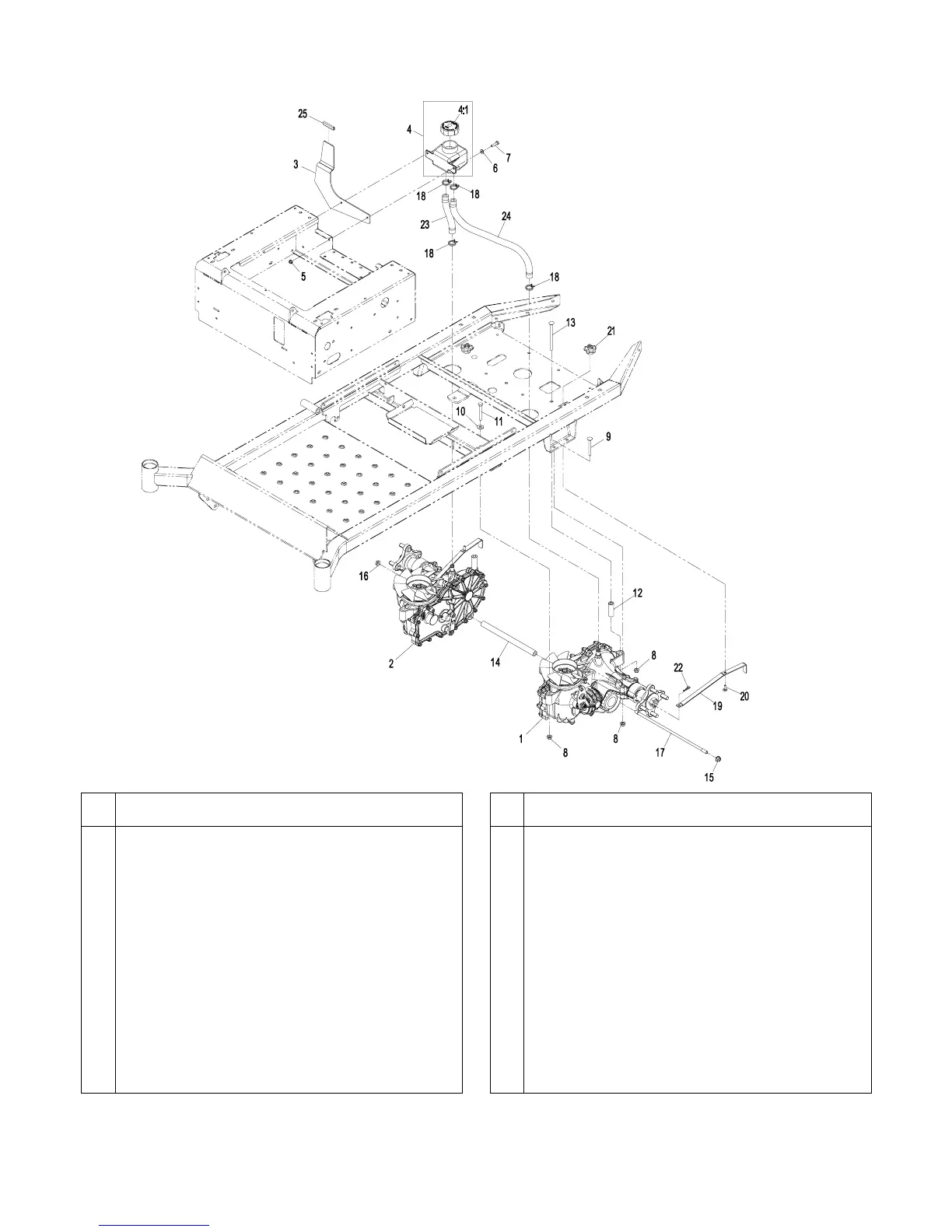

Exmark Quest 4500-451 - TRANSAXLE GROUP

TRANSAXLE GROUP
-18-
Item
Part No. Description
Qty.
1 116-0131 Asm, Transaxle (LH) (42”)...................... 1
116-0524 Asm, Transaxle (LH) (48” & 52”) ............ 1
2 116-0132 Asm, Transaxle (RH) (42”) ..................... 1
116-0525 Asm, Transaxle (RH) (48” & 52”)............ 1
3 109-6570-03 Bracket, Fender Support ........................ 1
4 109-2250 Tank, Hydraulic...................................... 1
4:1 109-3320 Cap, Hydraulic Reservoir ....................... 1
5 104-7201 Nut, Nyloc 1/4-20 Flg ............................. 2
6 3256-22 Washer, 1/4 SAE ................................... 2
7 321-6 Screw, HH 1/4-20 x 1............................. 2
8 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 8
9 3230-9 Bolt, Carriage 5/16-18 x 2 3/4................. 4
10 3256-3 Washer, 5/16 Std ................................... 2
11 322-12 Screw, HH 5/16-18 x 2 1/2 ..................... 2
Item
Part No. Description
Qty.
12 109-3652 Spacer................................................... 2
13 3230-30 Bolt, Carriage 5/16-18 x 4 1/2................ 2
14 109-3710 Tube, Spacer......................................... 1
15 104-8301 Nut, Nyloc 3/8-16 Flg............................. 1
16 3290-357 Nut, Whizlock 3/8-16.............................. 1
17 109-3711 Rod, Tension ......................................... 1
18 109-3322 Clamp, Hose.......................................... 4
19 109-5395 Arm, Hydro Bypass................................ 2
20 3229-1 Bolt, Carriage 1/4-20 x 3/4..................... 2
21 108-6402 Knob...................................................... 2
22 1-806003 Hairpin, Cotter ....................................... 2
23 109-5577 Hose, Hydraulic ..................................... 1
24 109-5578 Hose, Hydraulic ..................................... 1
25 109-2985 Trim,.13 X 2.0 Edge............................... 1
Exmark black touch up spray paint – gloss black.
