Exmark Quest 4500-451 - MOTION CONTROL GROUP

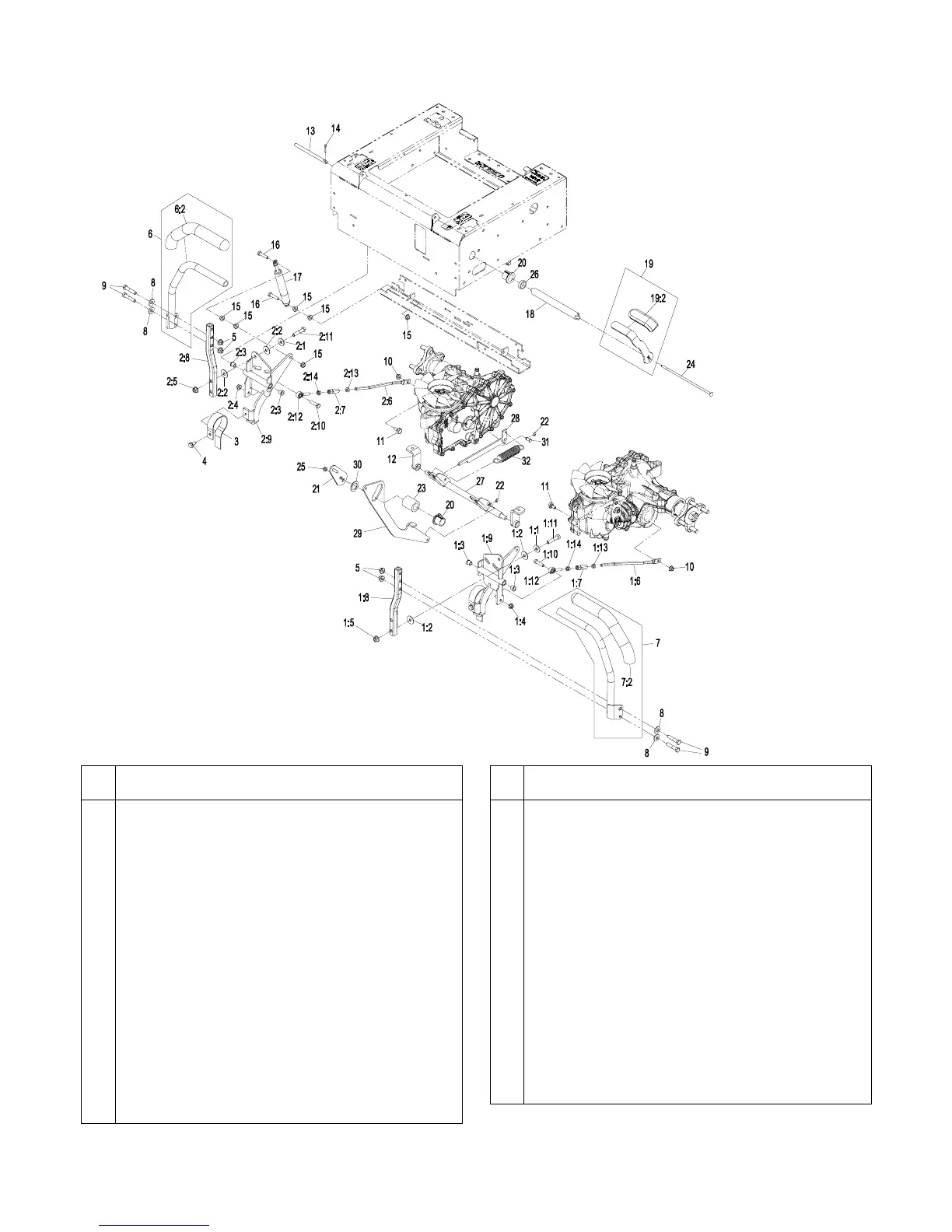

MOTION CONTROL GROUP
-12-
Item Part No. Description Qty.
1 Asm, Motion Control LH.........................1
1:1 5-0838 Washer ..................................................2
1:2 52-2900 Washer-Poly ..........................................4
1:3 103-9928 Bearing, Igus..........................................2
1:4 104-8300 Nut, Nyloc 5/16-18 Flg ...........................1
1:5 104-8301 Nut, Nyloc 3/8-16 Flg .............................2
1:6 109-3414 Rod, Steering.........................................1
1:7 109-3728 Nut, Rod Adjustment..............................1
1:8 116-0150 Tube, Motion Control..............................1
1:9 116-0154 Wld, Motion Control LH ..........................1
1:10 322-6 Screw, HH 5/16-18 x 1 1/4 .....................1
1:11 323-9 Screw, HH 3/8-16 x 1 3/4 .......................2
1:12 2411-53 Balljoint LH.............................................1
1:13 3220-2 Nut, Jam 5/16-24 ...................................1
1:14 3220-20 Nut, Jam 5/16-24 ...................................1
2 Asm, Motion Control RH.........................1
2:1 5-0838 Washer ..................................................2
Item Part No. Description Qty.
2:2 52-2900 Washer-Poly..........................................4
2:3 103-9928 Bearing, Igus ......................................... 2
2:4 104-8300 Nut, Nyloc 5/16-18 Flg ...........................1
2:5 104-8301 Nut, Nyloc 3/8-16 Flg............................. 2
2:6 109-3414 Rod, Steering......................................... 1
2:7 109-3728 Nut, Rod Adjustment.............................. 1
2:8 116-0150 Tube, Motion Control ............................. 1
2:9 116-0153 Wld, Motion Control RH .........................1
2:10 322-6 Screw, HH 5/16-18 x 1 1/4..................... 1
2:11 323-9 Screw, HH 3/8-16 x 1 3/4.......................2
2:12 2411-53 Balljoint LH ............................................ 1
2:13 3220-2 Nut, Jam 5/16-24 ................................... 1
2:14 3220-20 Nut, Jam 5/16-24 ................................... 1
3 109-5575 Spring, Leaf Rtn..................................... 2
4 32144-70 Screw, HWH 5/16-18 x 3/4 TF ............... 2
5 104-8301 Nut, Nyloc 3/8-16 Flg............................. 4
