Exmark Quest 4500-451 - Page 14

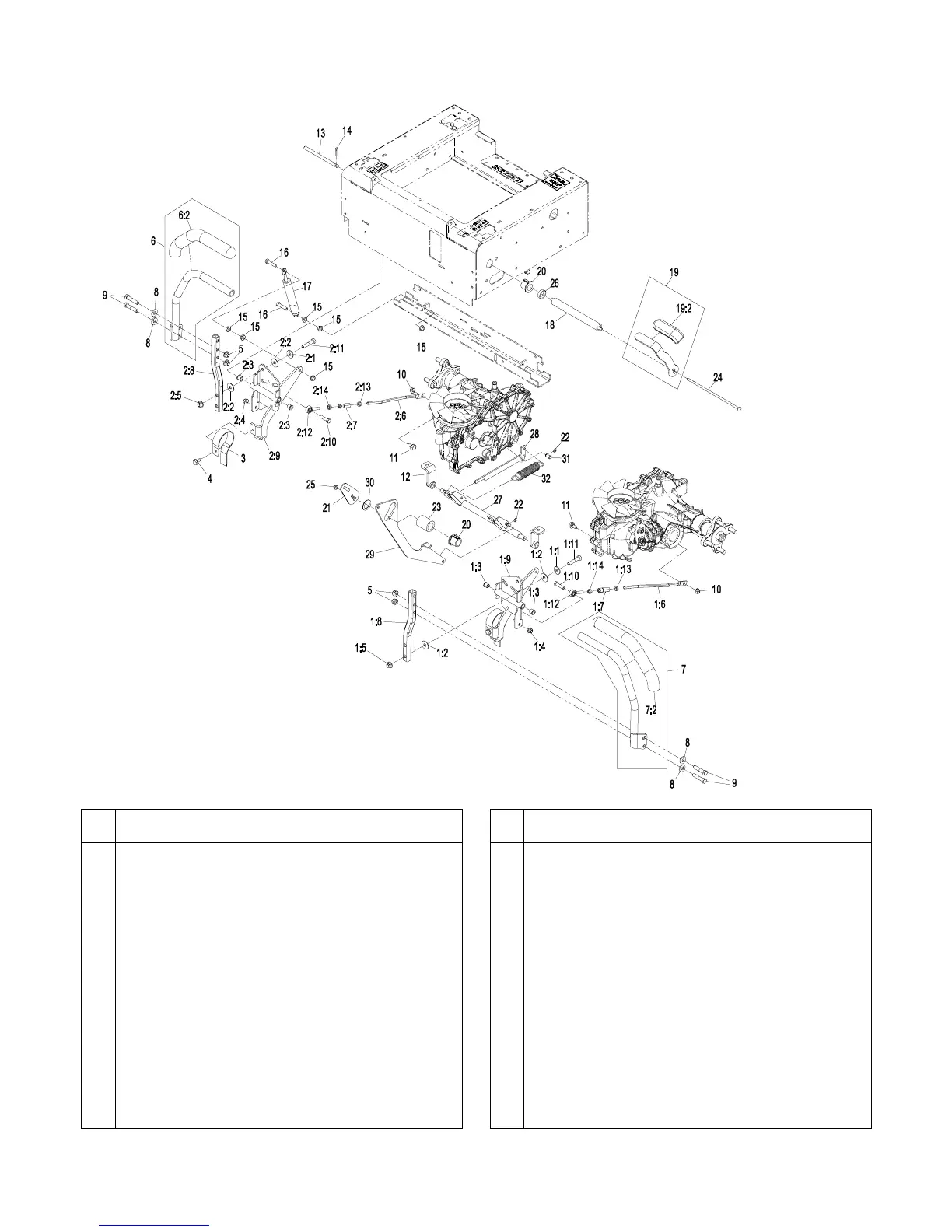

MOTION CONTROL GROUP (cont.)
-13-
Item Part No. Description Qty.
6 117-5339 Handle Asm, RH ....................................1
108-6187 Grip, Control Lever.................................1
7 117-5338 Handle Asm, LH.....................................1
108-6187 Grip, Control Lever.................................1
8 98-5975 Washer, Spring Disc 3/8.........................4
9 323-9 Screw, HH 3/8-16 x 1 3/4.......................4
10 104-8300 Nut, Nyloc 5/16-18 Flg ...........................2
11 37-8771 Screw, Shoulder 5/16-18 x 5/8 ...............2
12 109-6220 Wld, Brake Pivot ....................................2
13 109-3705 Pin, Control Pivot ...................................2
14 3272-10 Pin, Cotter 1/8 x 3/4 ...............................2
15 32128-20 Nut, Whizlock 5/16-18............................12
16 1-403180 Screw, HH 5/16-18 x 1 1/4 Sp................4
17 109-5957 Damper, Motion Control.........................2
18 109-5825 Tube, Brake Pivot ..................................1
Item Part No. Description Qty.
19 109-5918 Asm, Lever W/Grip ................................ 1
19:2 1-633268 Grip, Brake Lever...................................1
20 107-7581 Bushing ................................................. 2
21 116-0209 Wld, Bellcrank........................................ 1
22 701197 E-Ring ...................................................3
23 109-5834 Spacer................................................... 1
24 109-5868 Bolt, Carriage 1/4-20 x 9........................ 1
25 104-7201 Nut, Nyloc 1/4-20 Flg............................. 1
26 109-5914 Spacer................................................... 1
27 109-8765 Wld, Brake Shaft....................................1
28 109-6907 Link, Brake Actuation.............................2
29 109-5833 Arm, Brake............................................. 1
30 99-4958 Spacer................................................... 1
31 109-6887 Pin, Clevis 5/16 x 5/8............................. 2
32 1-603693 Spring....................................................2
