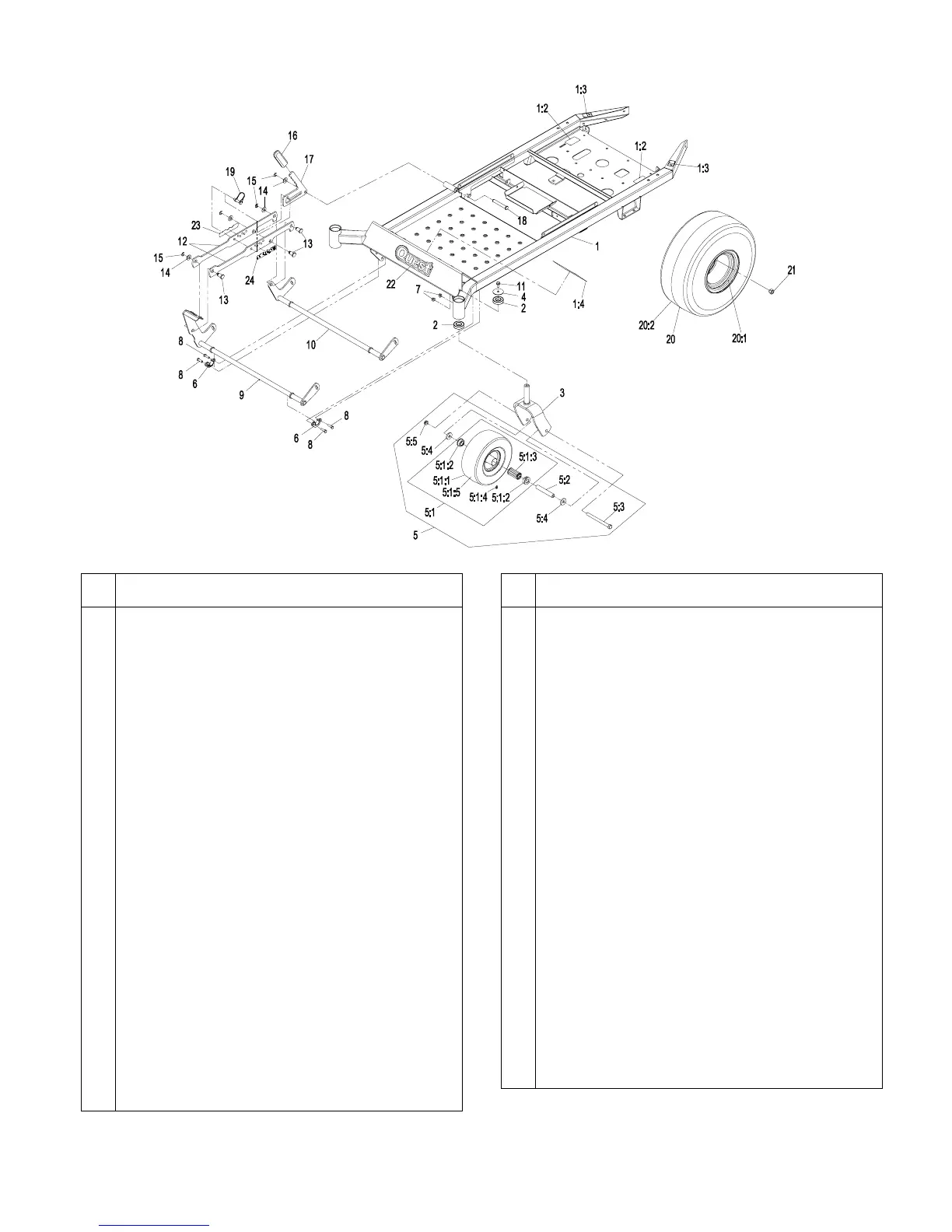

Exmark Quest 4500-451 - FRAME GROUP

FRAME GROUP
-10-
Item Part No. Description Qty.
1 116-0727 Asm, Frame W/ Decal (42”)....................1
109-8825 Asm, Frame W/ Decal (Red) ..................1
116-0546 Asm, Frame W/ Decal (Black) ................1
1:2 109-6008 Decal, Drive Release .............................2
1:3 106-5517 Decal, Surface, Hot................................2
1:4 109-8965 Decal, Safety Warning ...........................1
2 109-3678 Bearing, Ball ..........................................4
3 116-0100-01 Wld, Caster Fork (Red) ..........................2
116-0100-03 Wld, Caster Fork (Black) ........................2
4 109-3724 Washer ..................................................2
5 116-0933 Asm, Caster Wheel Sawtooth.................2
116-0518 Asm, Caster Wheel Smooth...................2
5:1 105-3471 Asm, Caster Wheel W/Brgs Sawtooth....1
105-1863 Asm, Caster Wheel W/Brgs Smooth.......1
5:1:1 105-1943 Tire, Sawtooth (42”) ...............................1
105-1864 Tire, Smooth (48” & 52”).........................1
5:1:2 114-1640 Bearing (42”)..........................................2
62-5580 Bearing (48” & 52”).................................2
5:1:3 83-4740 Bearing (48” & 52” Only) ........................1
5:1:4 302-5 Zerk 1/4-28 Str Thrd Forming.................1
5:1:5 93-4244 Tube, Inner ............................................1
5:2 104-3667 Spanner, Wheel .....................................1
5:3 325-20 Screw, HH 1/2-13 x 6.............................1
5:4 3256-6 Washer ..................................................2
5:5 3296-45 Nut, Nyloc 1/2-13 Thin ...........................1
6 109-3667 Bearing, Flange......................................4
7 104-8300 Nut, Nyloc 5/16-18 Flg ...........................8
Item Part No. Description Qty.
8 322-5 Screw, HH 5/16-18 x 1........................... 8
9 116-0183-01 Wld, Shaft Front (Red)........................... 1
116-0183-03 Wld, Shaft Front (Black)......................... 1
10 116-0182-01 Wld, Shaft Rear (Red) ........................... 1
116-0182-03 Wld, Shaft Rear (Black) ......................... 1
11 3234-5 Screw, HH FLG 5/16-18 x 3/4................ 1
12 116-0145-01 Link (Red).............................................. 2
116-0145-03 Link (Black)............................................ 2
13 116-0143 Pin......................................................... 3
14 3256-26 Washer, 1/2 SAE................................... 4
15 32120-47 Ring, Retaining...................................... 4
16 1-633268 Grip, Brake Lever .................................. 1
17 116-0144 Lever ..................................................... 1
18 109-6172 Pin, Clevis ............................................. 1
19 116-0146 Pin, Spring............................................. 1
20 109-5486 Asm, Wheel And Tire (42” & 48")........... 2
109-5268 Asm, Wheel And Tire (52") .................... 2
20:1 109-5487 Wheel (42” & 48") .................................. 1
109-5270 Wheel (52")............................................ 1
20:2 109-5488 Tire, 20 X 8-8 (42” & 48")....................... 1
109-5269 Tire, 20 X 10-8 (52") .............................. 1
21 242-50 Nut, Lug 1/2-20...................................... 4
22 109-6280 Decal, Quest Logo................................. 1
116-0607 Decal, Quest Realtree ........................... 1
23 116-0581 Decal, Height Of Cut.............................. 1
24 116-0551 Decal, Height Of Cut.............................. 1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
