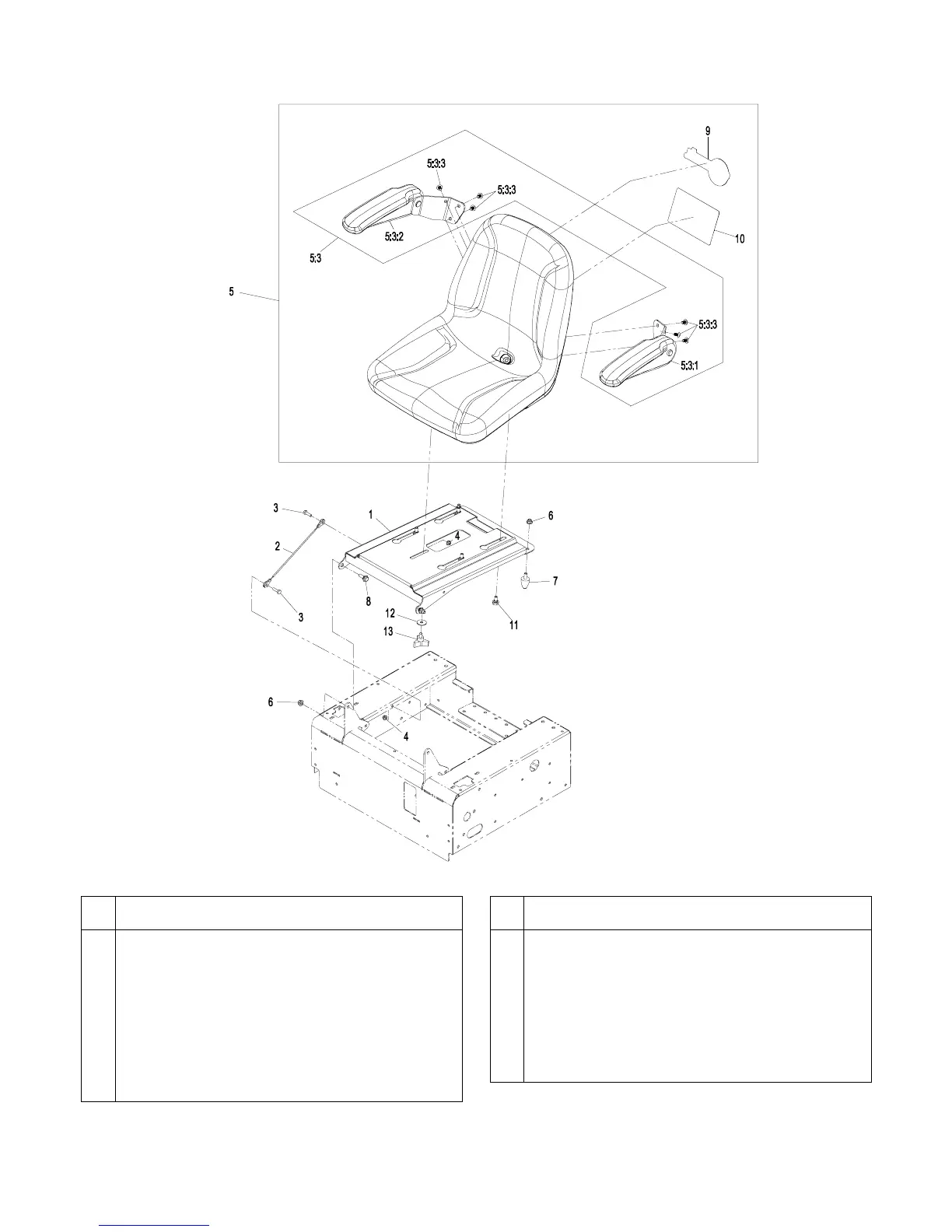

Exmark Quest 4500-451 - SEAT GROUP - 42

SEAT GROUP – 42”
-15-
Item Part No. Description Qty.
1 116-0862-03 Plate, Seat Pan......................................1
2 109-2628 Cable .....................................................1
3 321-5 Screw, HH 1/4-20 x 7/8..........................2
4 104-7201 Nut, Nyloc 1/4-20 Flg .............................2
5 116-0934 Seat Asm ...............................................1
5:3 108-6163 Kit, Armrest............................................1
5:3:1 110-6569 Kit, Armrest LH.......................................1
5:3:2 110-6570 Kit, Armrest RH......................................1
5:3:3 108-6179 Screw, Button Head 5/16-18 x 1/2..........6
Item Part No. Description Qty.
6 104-8300 Nut, Nyloc 5/16-18 Flg........................... 4
7 103-9376 Bumper, Seat......................................... 2
8 27-0410 Screw, Shoulder 5/16-18 x 1 Sp.............2
9 103-3999 Decal, Exmark Logo...............................1
10 109-6016 Decal, Service Aid ................................. 1
11 37-8771 Screw, Shoulder 5/16-18 x 5/8...............4
12 5-4460 Washer-Pivot......................................... 1
13 92-9674 Knob...................................................... 1
Exmark black touch up spray paint – gloss black.
